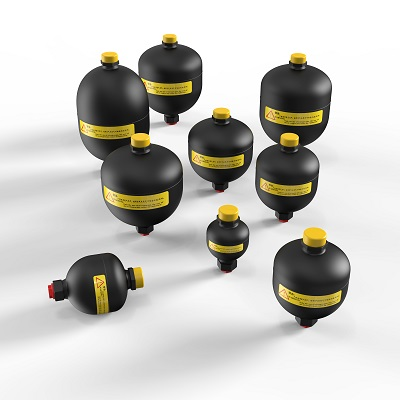

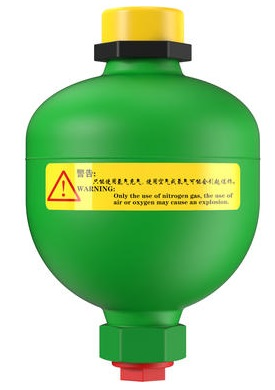

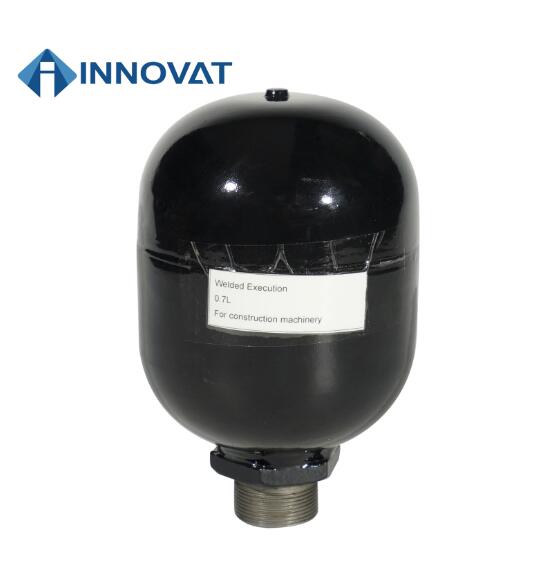

Hydraulic Accumulator

Accumulator is a kind of energy storage device in hydraulic pneumatic system.

It converts the energy in the system into compressive energy or potential energy at the right time and stores it.

When the system needs it, it converts the compressive energy or potential energy into hydraulic or pneumatic energy and releases it to replenish the supply system. When the system pressure increases momentarily, it can absorb this part of the energy,

to keep the whole system pressure normal. Mainly used in mining, agriculture, engineering, abandoned automobile, electric power, transportation, metallurgy and other industries.

Inquire Now

Product Introduction

Accumulator is a kind of energy storage device in hydraulic pneumatic system.

It converts the energy in the system into compressive energy or potential energy at the right time and stores it.

to keep the whole system pressure normal. Mainly used in mining, agriculture, engineering, abandoned automobile, electric power, transportation, metallurgy and other industries.

Hydraulic Accumulator

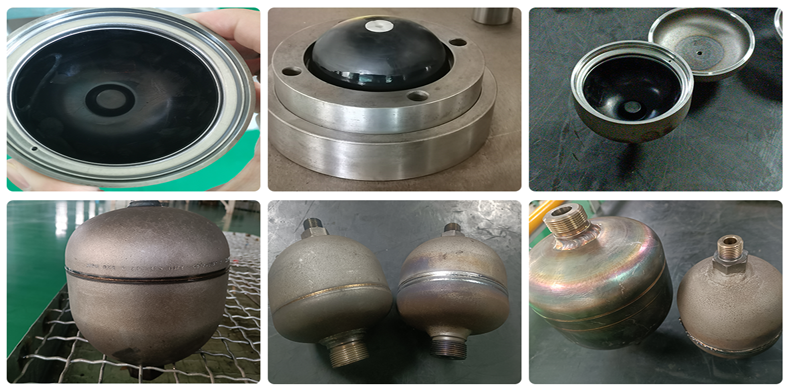

Accumulator Components

Hydraulic Accumulator

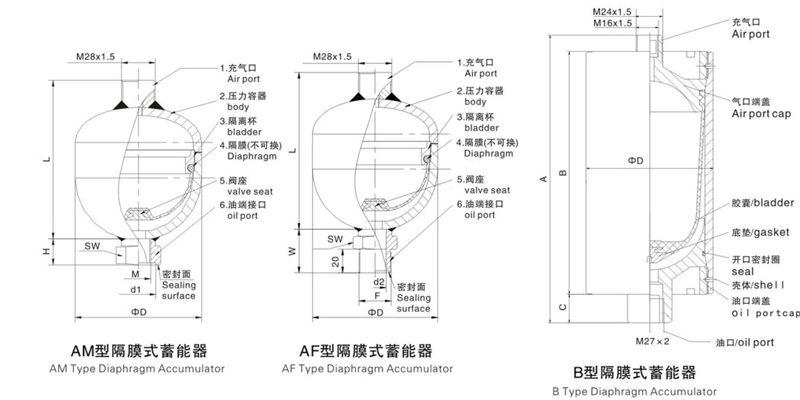

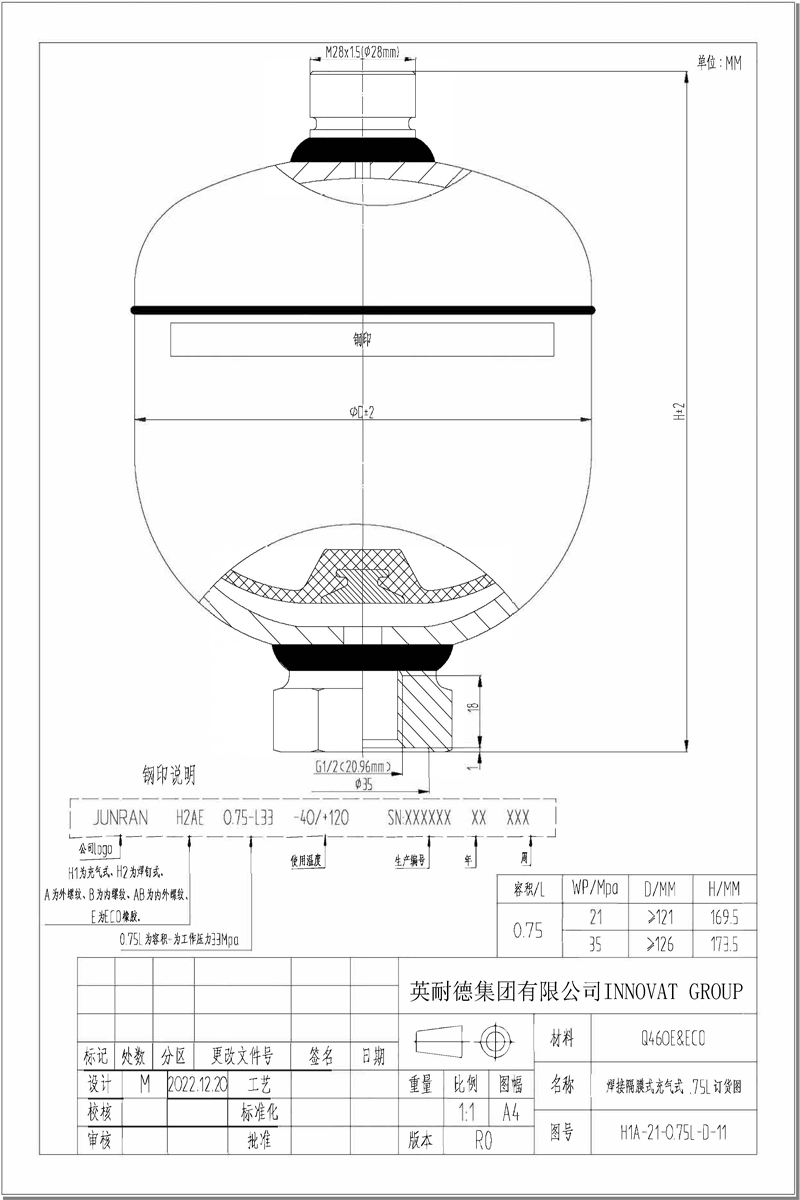

Accumulator Structure and Dimensions

Hydraulic Accumulator

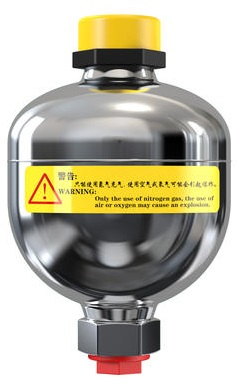

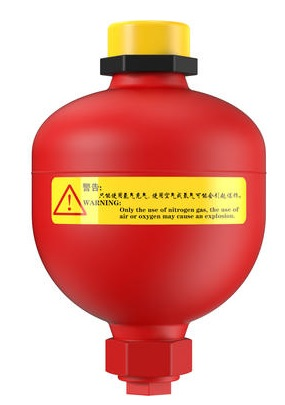

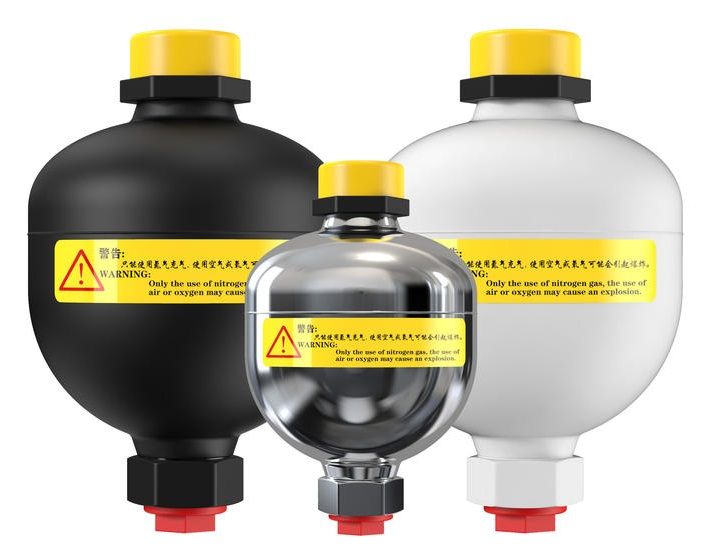

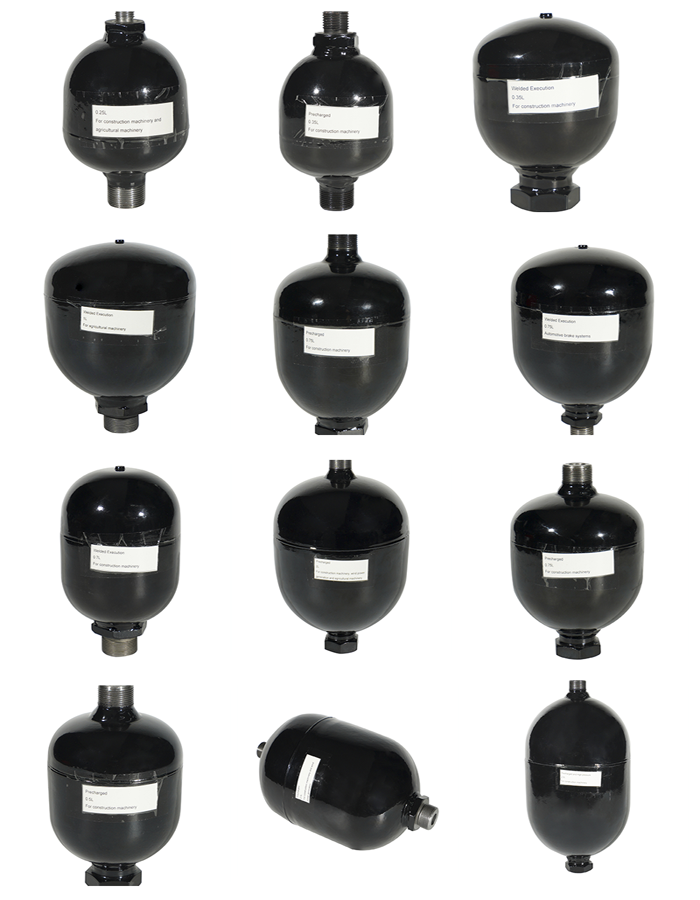

Different Type Diaphragm Accumulator

A Type Diaphragm Accumulator

Model	Nominal Volume L	Nominal Pressure Mpa	ΦODmm	Lmm	Hmm	Oil End Connector				Wmm	SW
						AM			AF
						Metric	Inch	Ansi	F/d2
INN-A	0.16	10 21 33	74	105	21	M14×1.5	G1/2	SAE #6	M18×1.5	36	32
	0.25		84	110		M18×1.5
	0.32		93	118	25
	0.5		105	135				SAE#8
	0.6		115	147					M33×1.5 / G1/2 M45×1.5 / G3/4	42	36
	0.75		121	147
	1		136	163
	1.4		150	181
	2		170/173	198	30	M22×1.5	G3/4				41/46
	2.8		170/173	252
