Plastic Chain Plate Mainly suitable for application in all kinds of food, beverages, special bottles, aluminum cans, and all kinds of transportation.
Specification
| Name | 1060 series bending chain |
| Application | Mainly suitable for application in all kinds of food, beverages, special bottles, aluminum cans, and all kinds of transportation. |
| Material | The material is POM, the color is dark green, and the operating temperature is -30℃~+90℃. |
| pin material | cold-rolled austenitic stainless steel. |
| Maximum speed: | Maximum speed 50 m/min lubricant; 30 m/min desiccant. |
| working load (25°C) | The working load (25°C) is 1710N and the maximum conveying length is 12 meters. |
| Name | 880series chain |
| Application | Mainly suitable for application in all kinds of food, beverages, special bottles, aluminum cans, and all kinds of transportation. |
| Material | The material is POM, the color is brown, pin material is: cold rolled austenitic stainless steel.the operating temperature is -30℃~+90℃. |
| pin material | cold-rolled austenitic stainless steel. |
| Maximum speed: | 50 m/min lubricant; 30 m/min desiccant |
| working load (25°C) | 2100N and the maximum conveying length is 9 meters. |

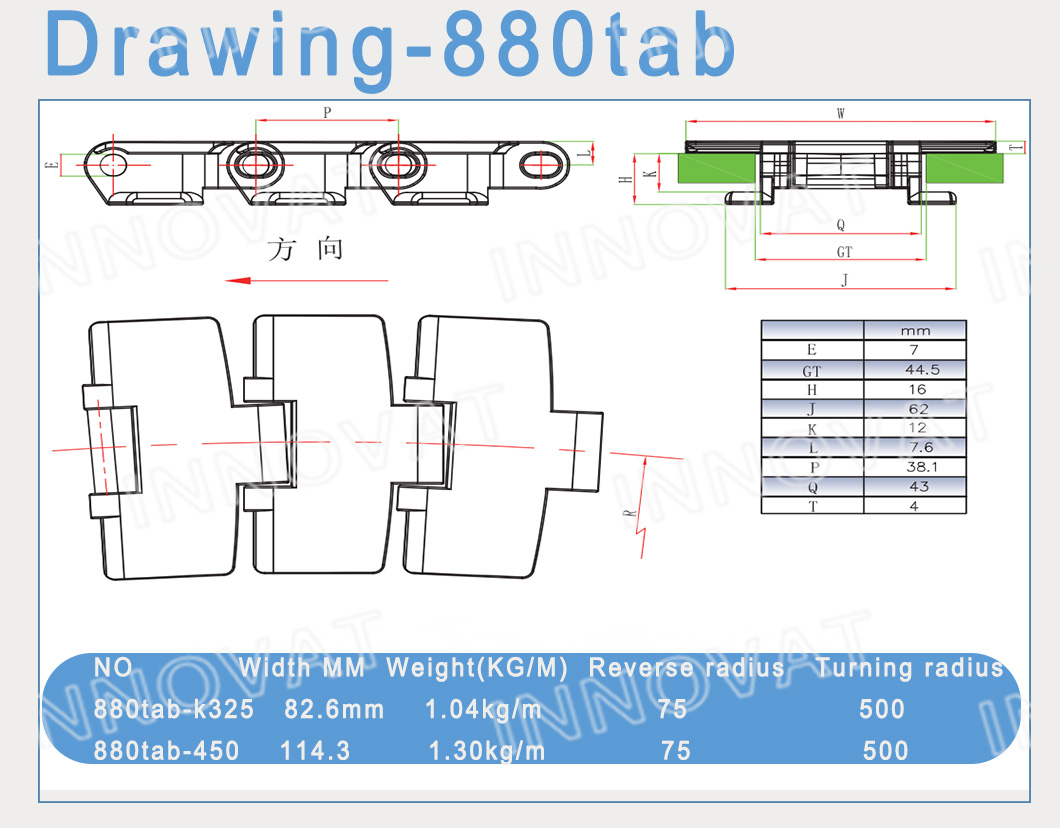

| Name | 880TAB Sideflex Chains |
| Application | Mainly suitable for application in all kinds of food, beverages, special bottles, aluminum cans, and all kinds of transportation. |
| Material | The material is POM, the color is brown, and the operating temperature is -30℃~+90℃. |
| pin material | cold-rolled austenitic stainless steel. |
| Maximum speed: | 50 m/min lubricant; 30 m/min desiccant. |
| working load (25°C) | working load (25°C) is 2100N and the maximum conveying length is 12 meters. |

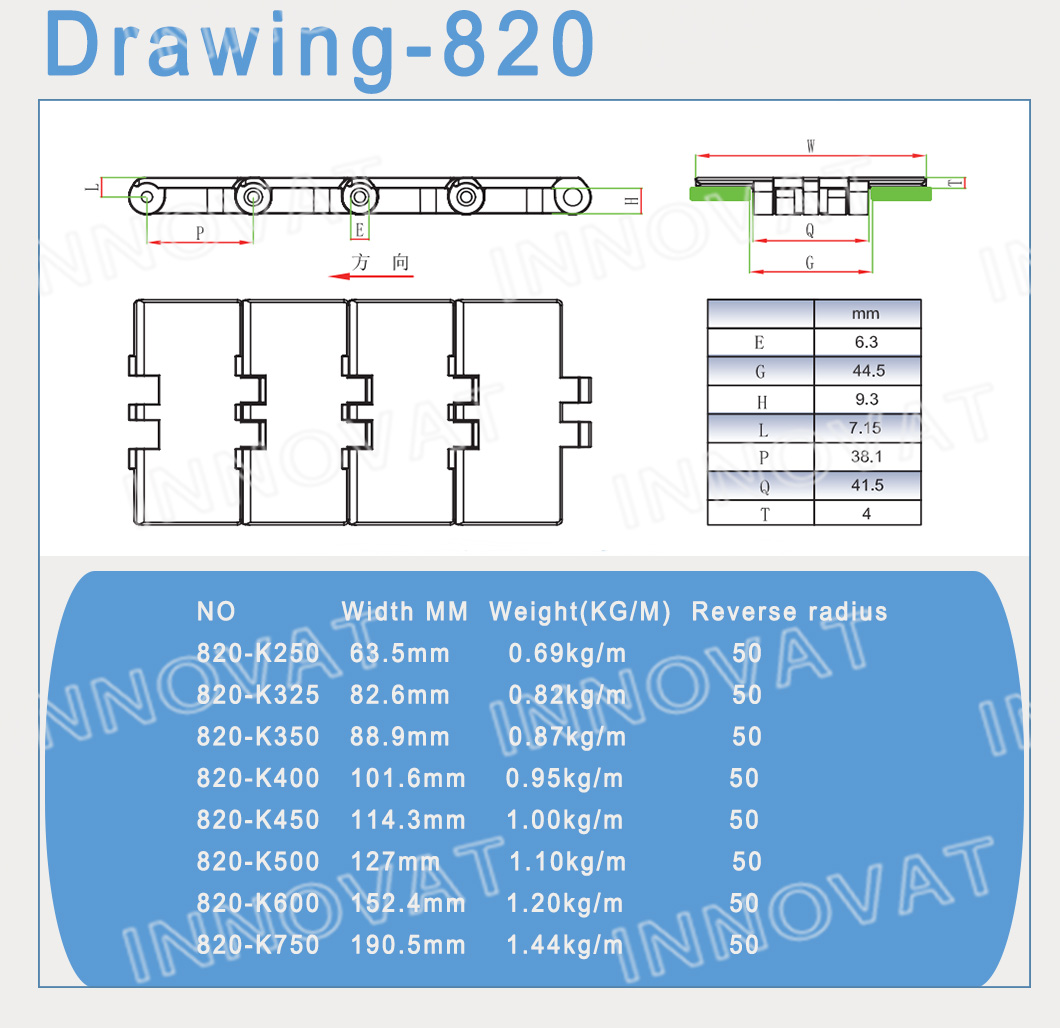

| Name | 820 Series Single Hinge Chain |
| Application | It is mainly suitable for the transportation of various foods, beverages, holding bottles, aluminum cans and various types |
| Material | Chain plate material: polyoxymethylene (POM), pin material: cold-rolled austenitic stainless steel. |
| pin material | cold-rolled austenitic stainless steel. |
| Operating temperature | -30℃～+90℃. |
| Maximum speed: | lubricant 50m/min; desiccant 30m/min. |
| working load (25°C) | Working load: normal temperature (25℃) 1230N, the maximum conveying length is 12 meters. |
