Metal bar grating can be defined as a series of metal bars positioned vertically, placed an equal distance apart and joined by cross members to form a rectangular or reticuline pattern. Typically manufactured from mild carbon steel, aluminum and stainless steels, bar gratings are also available in specialty metal alloys to suit nearly any application.
Product Introduction
Metal bar grating can be defined as a series of metal bars positioned vertically, placed an equal distance apart and joined by cross members to form a rectangular or reticuline pattern. Typically manufactured from mild carbon steel, aluminum and stainless steels, bar gratings are also available in specialty metal alloys to suit nearly any application.
| Item | Detailed Description |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etcUS standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etcUS standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc |
| Twisted Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
 Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |

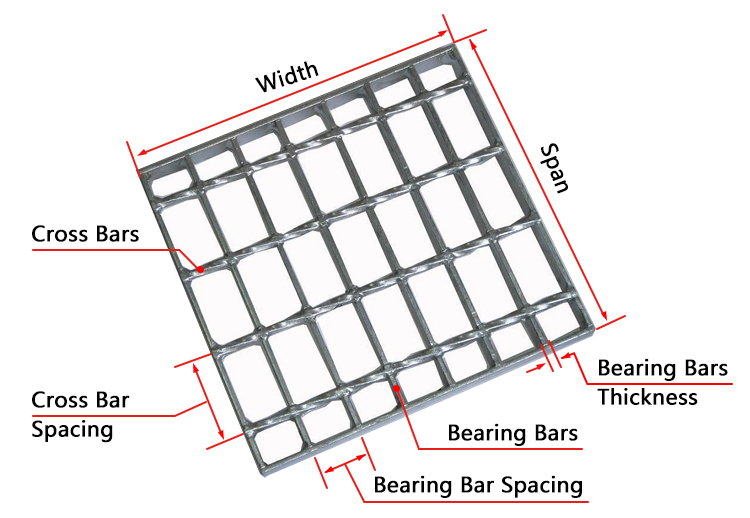

Metal Grating Brief Drawing

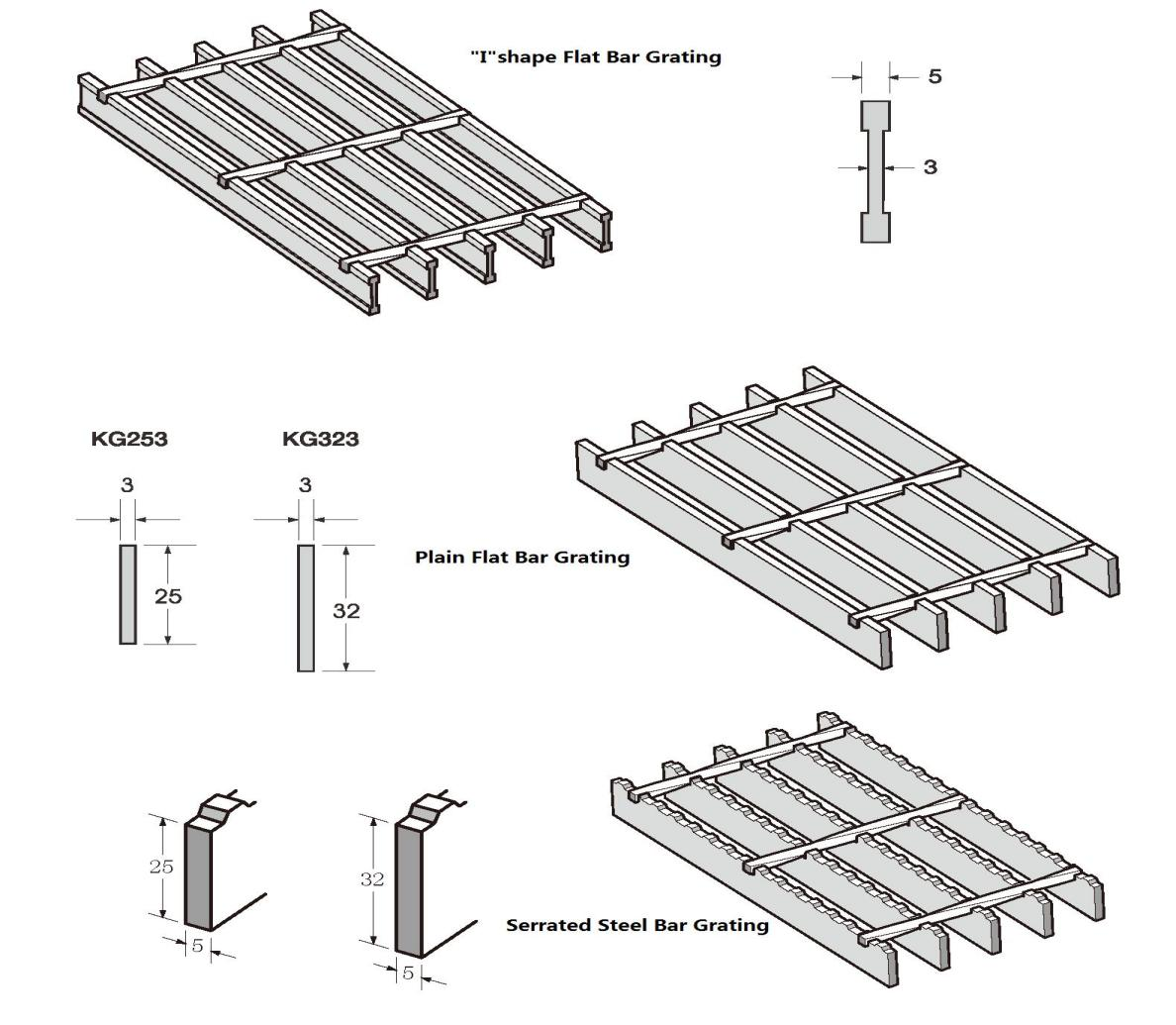

Metal Grating Different Types

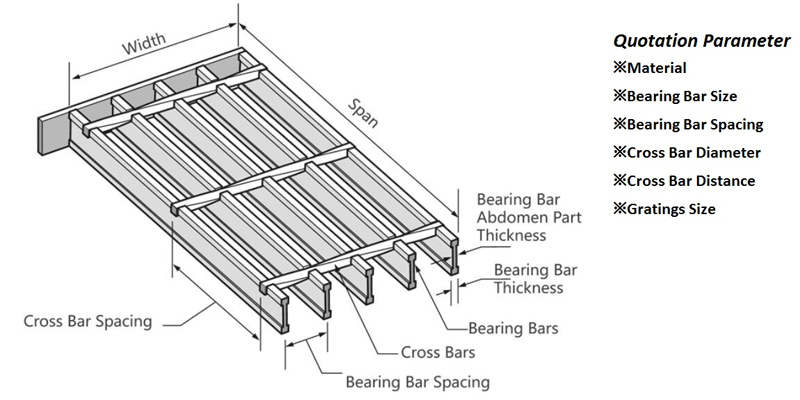

Quotation Parameters

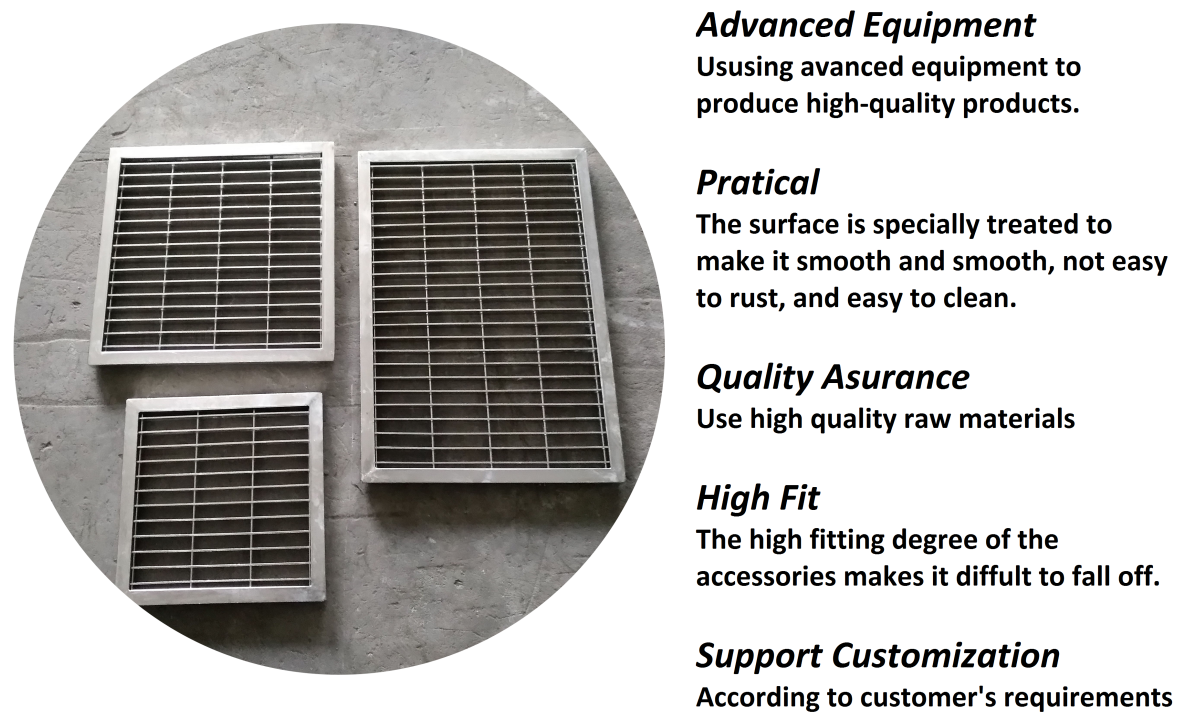

Metal Grating Features
Metal Grating Advantages

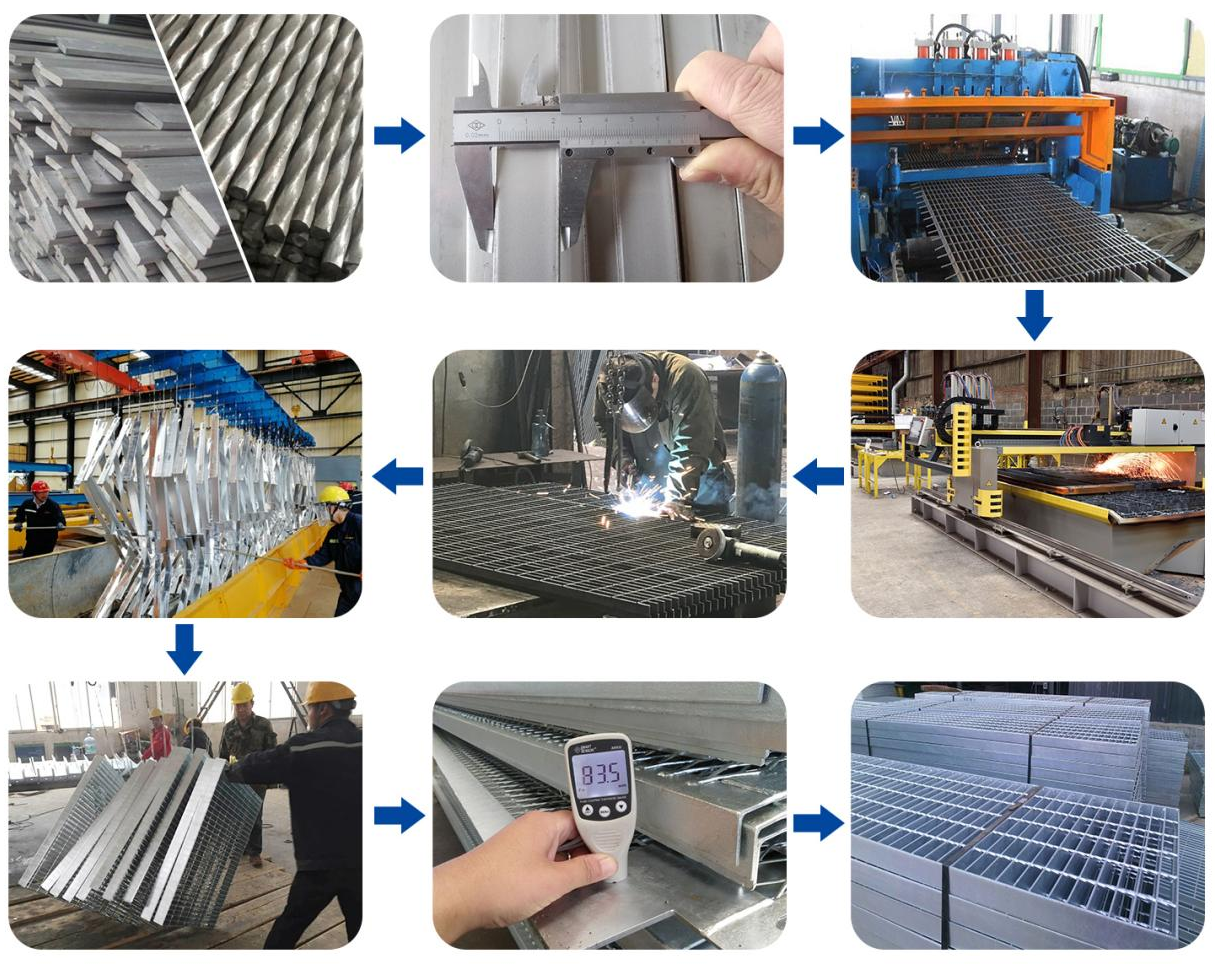

Metal Grating Production Process
Metal Grating Inspection
Metal Grating Previous Project

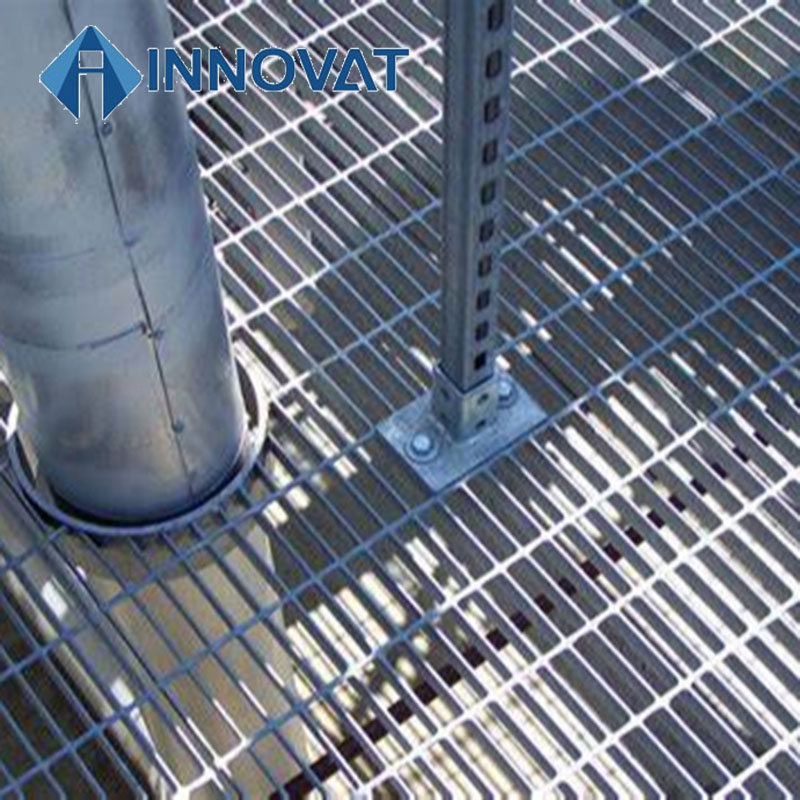

Metal Grating Application

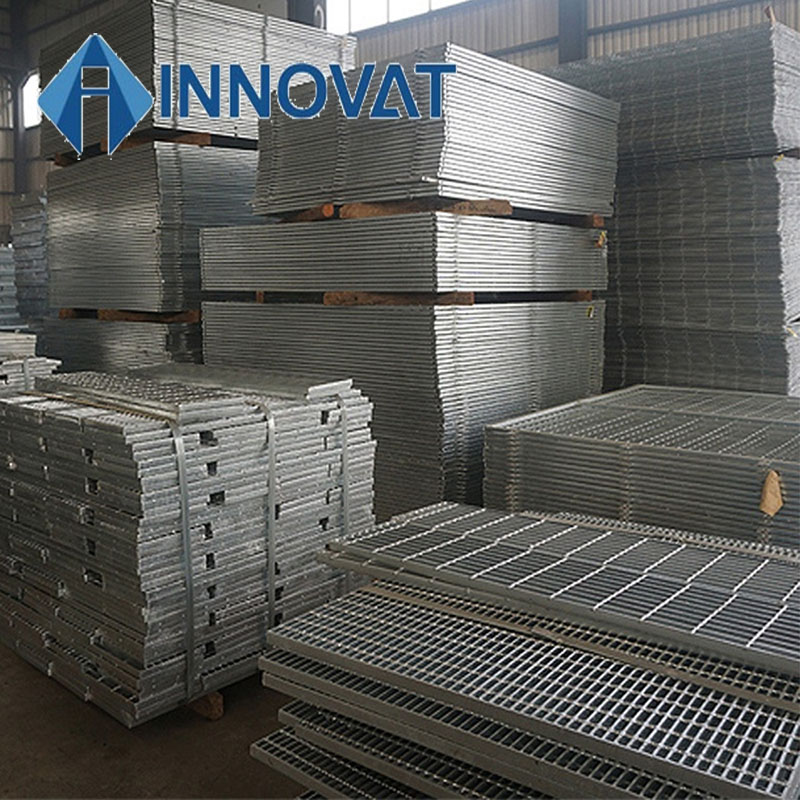

Metal Grating Package & Shipment
