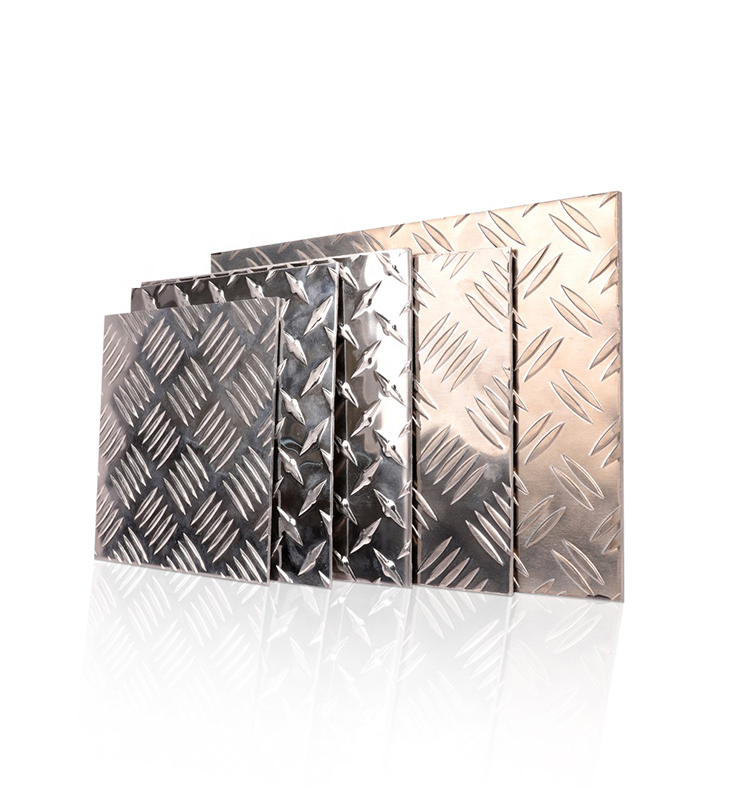

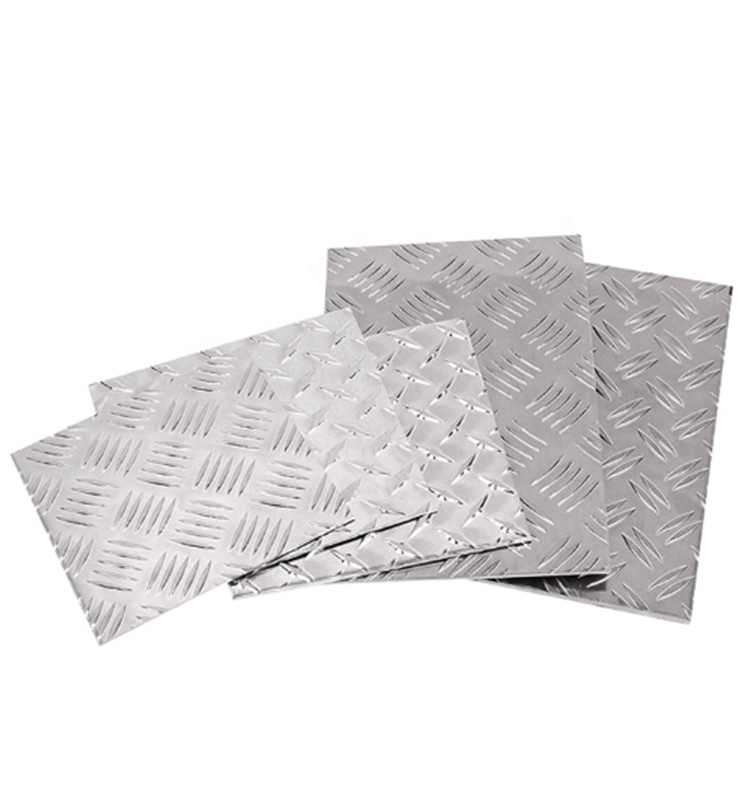

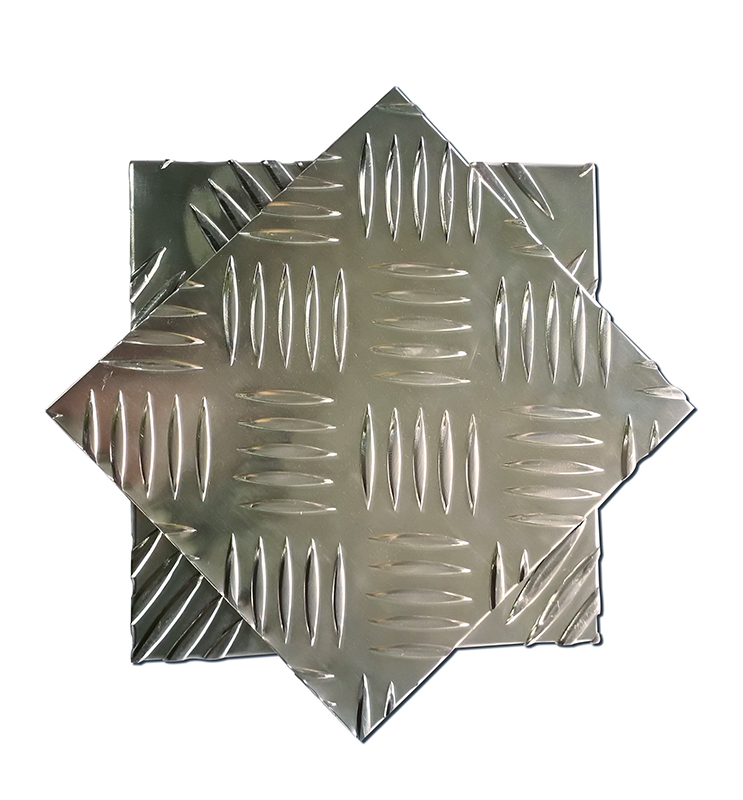

Checkered steel plate, also known as reticulated steel plate, is a steel plate with diamond or ridges on its surface. The pattern mainly plays the role of anti-skid and decoration. The comprehensive effect of the combined checker plate in terms of anti-skid ability, bending resistance, metal saving and appearance is obviously better than that of the single checker plate.
Product Introduction
Checkered steel plate, also known as reticulated steel plate, is a steel plate with diamond or ridges on its surface. The pattern mainly plays the role of anti-skid and decoration. The comprehensive effect of the combined checker plate in terms of anti-skid ability, bending resistance, metal saving and appearance is obviously better than that of the single checker plate. Checkered steel plates are widely used in shipbuilding, boilers, automobiles, tractors, railway cars and construction industries. Due to the ridges on its surface, the patterned steel plate has anti-slip effect, and can be used as floors, workshop escalators, work frame pedals, ship decks, car bottom plates, etc.
The checker sheets are available in several thicknesses and colours and made from several materials. Multiple finish options are available, from practical to decorative finishes:Checker plate, structures,perforations and grids, but also sophisticated wood or stoneeffect finishes, which are more UV,water and scratch resistant than conventional coatings thanks to a highly developed production process.
| Product Name | Embossed aluminum checkered sheet |
| Standard | ASTM GB/T ENAW/ ISO |
| Material | Steel |
| Type | Plate/Coil |
| Plate size | Thickness: 2.0-8.0mm or as your requirement |
| Width: 950-1500mm or as your requirement | |
| Length:As your requirement | |
| Zinc coating | 30-300g/m2 or OEM |
| Surface treatment | Common/ pinted/ hot dip Galvanized/Electric galvanizedThickness:1.5-10mm |
| Sample | Sample can be customized |
| Supply ability | 25000 metric tons per month |
| Delivery time | 22-30 days |
| Application | Floor of airplane, light rail and vehicles; deck of vessel, stairs, ladders, shelves, temporary scaffolding, platform, suspension beam, elevators,etc |
Specification
| Standard size of aluminum coil | width 1000mm/1250mm/1500mm/2500mm The length can be customized |
| Standard size of aluminum plate | 1000mm*2000mm/1250mm*2500mm/1500mm*3000mm/2000mm*6000m m |
| Conventional standard thickness | 0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.Omm 5.0mm 6.0mm8.0mm 10mm 12mm 15mm20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 11Omm 115mm 120mm 125mm 130mm 135mm 140mm 145mm 150mm 155mm 160mm 165mm 170mm 175mm 180mm 185mm 190mm 195mm 200mm |
| Aluminum foil | Thickness 0.0045mm--0.2mm Width 10mm-500mm The length supports customization |
| Aluminum strip | Thickness 0.2mm-4mm，Width10mm-1000mm, The length supports customization |
| Hardness HO H12H14H18 H22 H24H26H32 H111H114 T4 T6 Other hardness can be customized | |
| It can be used for color drawing,embossing,cutting, pattern, strip and other processing | |
| The above are the standard common sizes of coil, and customization is supported | |
| Material table | roduct use | |
| 10o0 scrics | 1050 | Food. chcmical and cxtrusion coils various hoscx. fireworks powdcr |
| 1060 | Chemical cquipeent is its typical usc | |
| 1100 | Chemical products, food industry inmstallatioms and storage containers. wedmcnts.heat exchangars. printed boards.nauDeplates snd reilective appliances | |
| 2000 series | 2024 | ircwaft structures.rivets.missile compoacats,truck hubs, propeller commponcnts and otber strucrural components |
| 2A12 | Aircraft skin,spaccr frarnc. wing rib, wing bcam.rivct,ctc.. and structural parts of buildings and transportation vchicles | |
| 2A14 | Free forging and die forging with complex shape | |
| 3000 serics | 3003 | Kizchen tutcnsils. food and chemical peoducts, storage cquigmcet, storage tanks for transpowting liquid products.and various prcsourc vesocls and pipelimcs |
| 3004 | Cbemical product production and storage devices,plste peocessing parts. building processing parts.building tools and various lamp parts | |
| 3105 | Rcom partition, bafflie,movable room board,caves gutter and dowmgipr, shect forming parts, botte caps, corks, ctc | |
| 4000 serics | 4032 | Piston. cylinder bead |
| 4043 | Bailding distribution framc | |
| 4343 | lbe products are widcly used in utatomobiles, watcr tanks, radiators. ctc. | |
| 5000 series | 5052 | Aircraft fucl tank, oilpipe.traffic vehicle and ship shcet metal parts. instrumcnts, strcct lamp suppous and rivets.harhware products, cte |
| 5083 | Plate Wcldmerts of ships.sutoeobiles and aincraft: Pessare vesscl rcfrigcration device.TV Tower, drilling cquipmcmt,transporation cquipmerr | |
| $754 | Slorage tanks,pressure vessels, ship materiasls | |
| 6000 series | 6005 | Laddcr.TVantcmna,ctc |
| 6061 | ripes,rods. profiles and plates for trucks.towers ships,trams.furnituce. mechanical parts, precision machining.etc | |
| 6063 | Euilding profiles. irrigation pipes and extroded matcrials for vehicles.stands. firmiture. fences.etc | |
| 7000 serles | 7075 | lt is used for mamufacturing aircraft structure and other high stress structural parts and molds with high streagth and strong corrosion resistancc |
| 7175 | lligh strength structure for forging aircraft | |
| 7475 | Alumminum clad and non alaminum clad plates for fuselage, wimg framc。 stringer,ec.Ocher parts with high strevgth anl high fiacture toughness | |
| 8000 series | 8011 | Te aluminum plane with bottle cap as the main fumction is also usod in radiatocs, most of which are used inm alumminun foil producis |

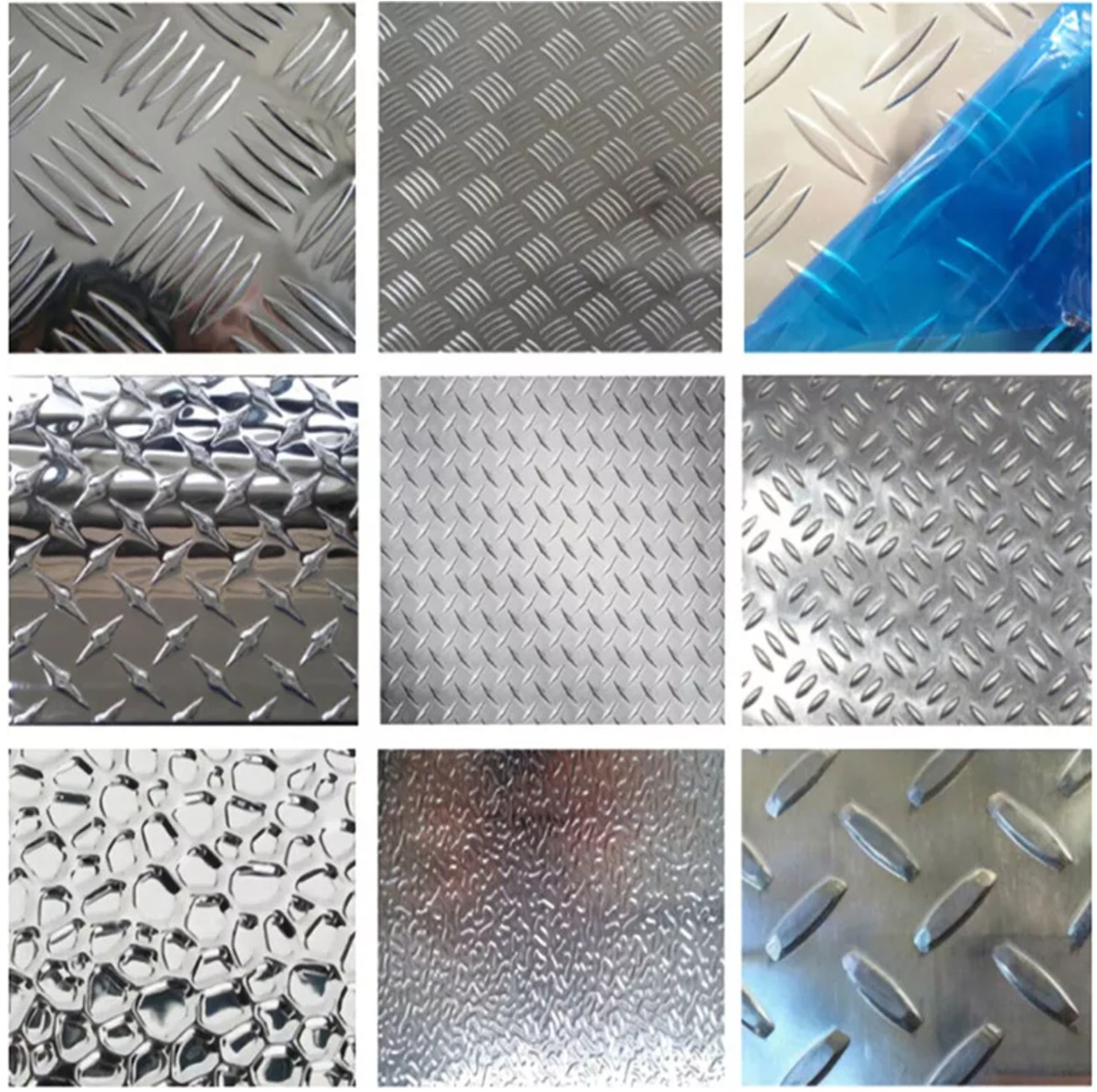

Pattern Type

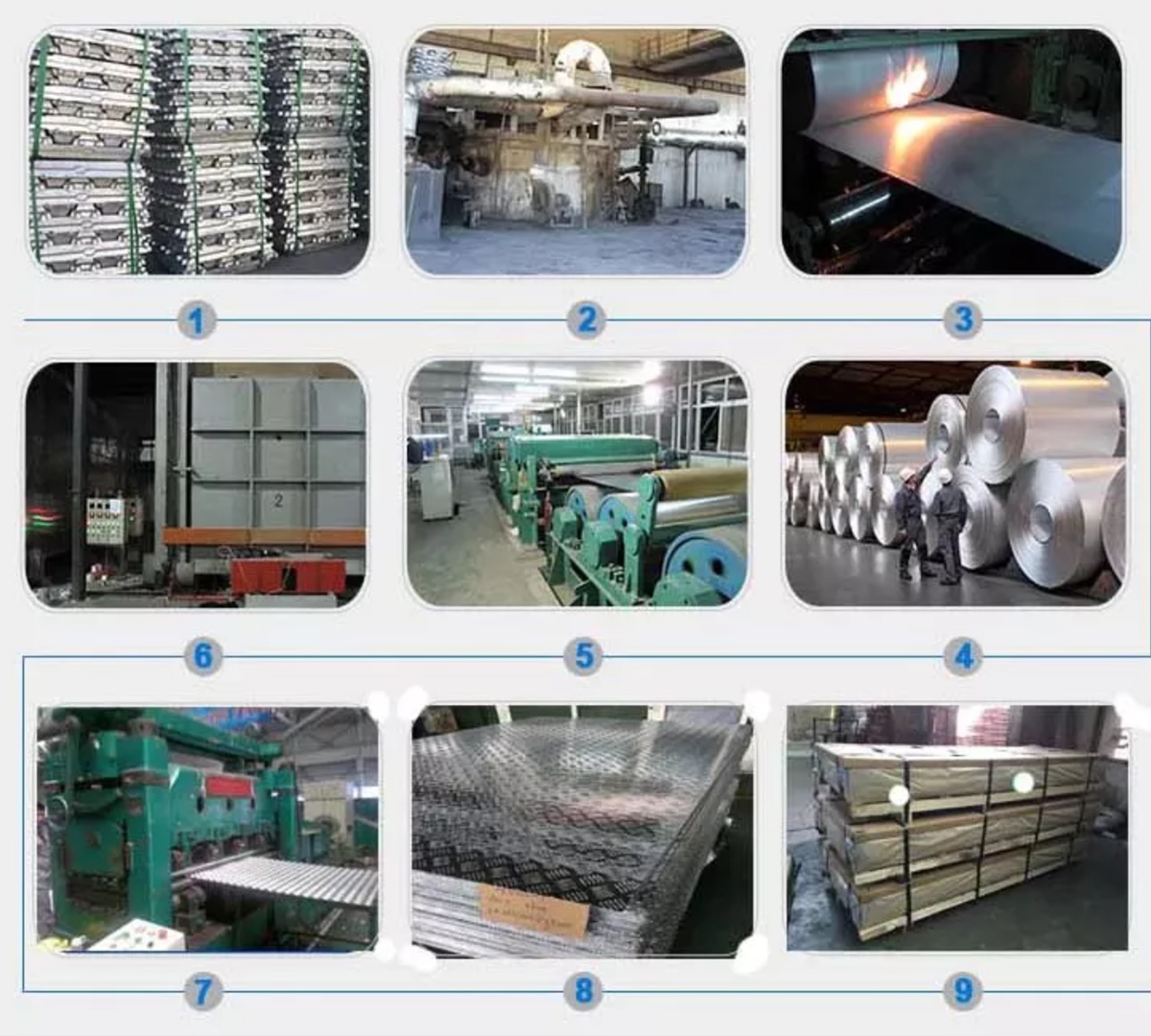

Process

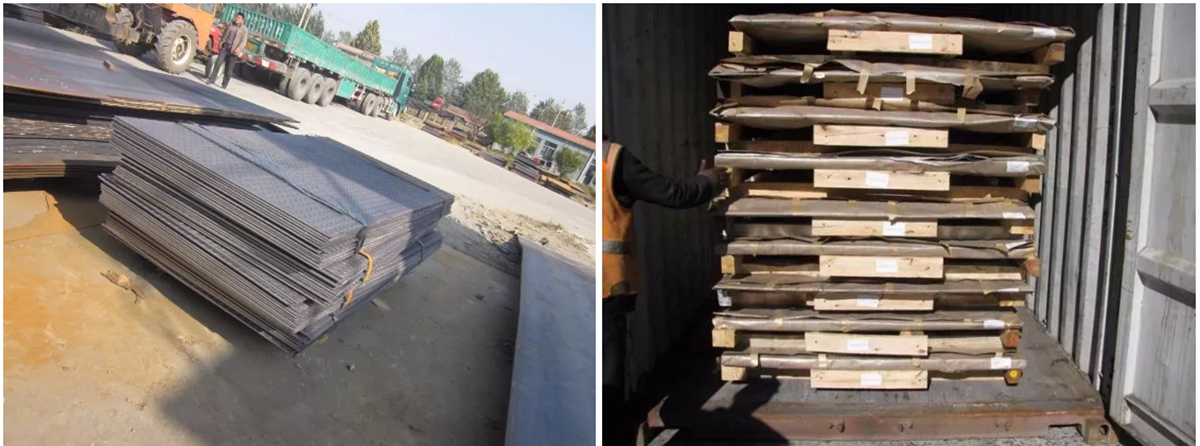

Package

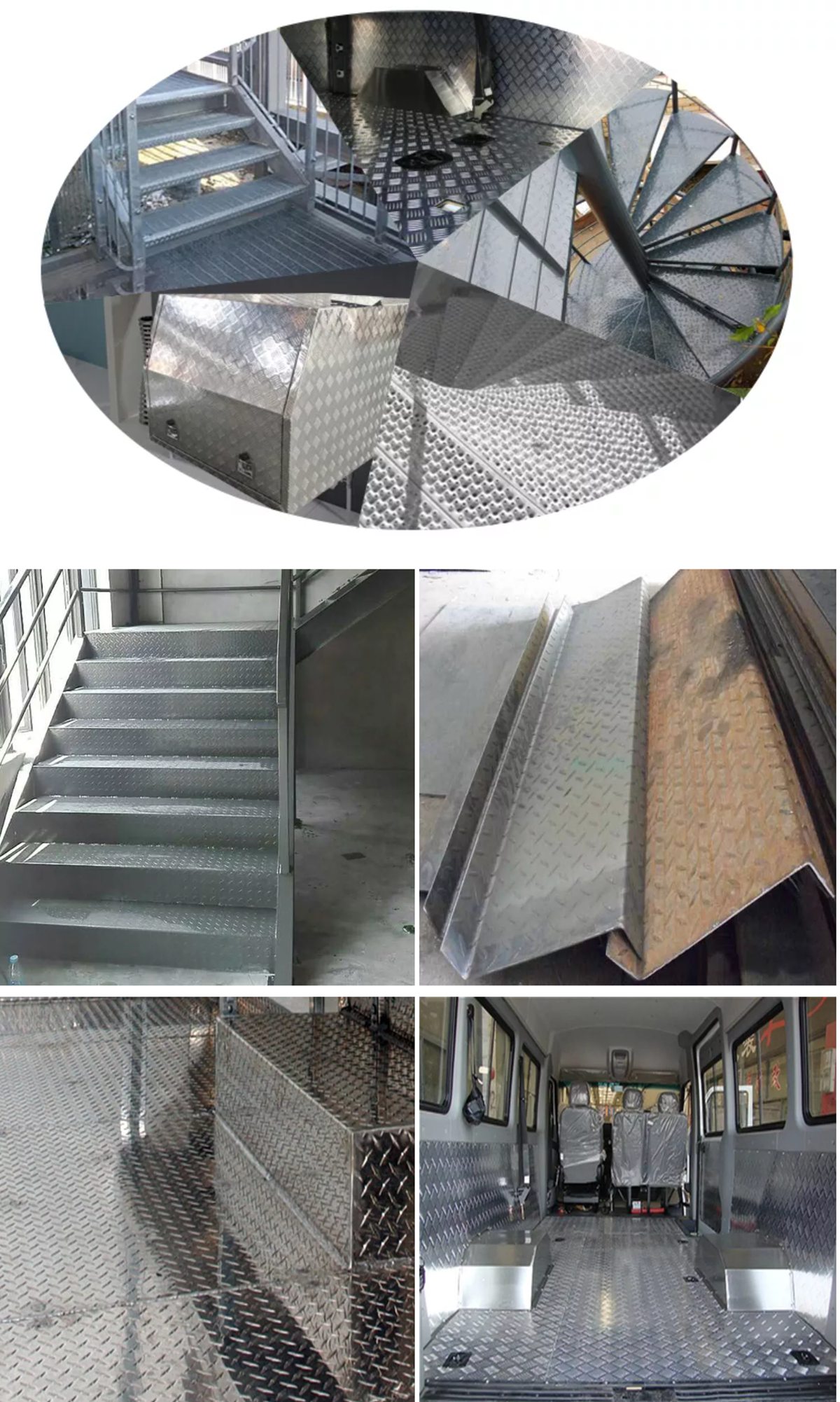

Application
