Metal mesh strong Wire stainless steel flat flex conveyor belts for bread baking freezing drying are usually gear transmission belt, with good ventilation advantages, tension evenly, fine workmanship, the flat flex belts with a flexible rotation, good stability, High temperature, pressure resistance, corrosion resistance, long life and so on.

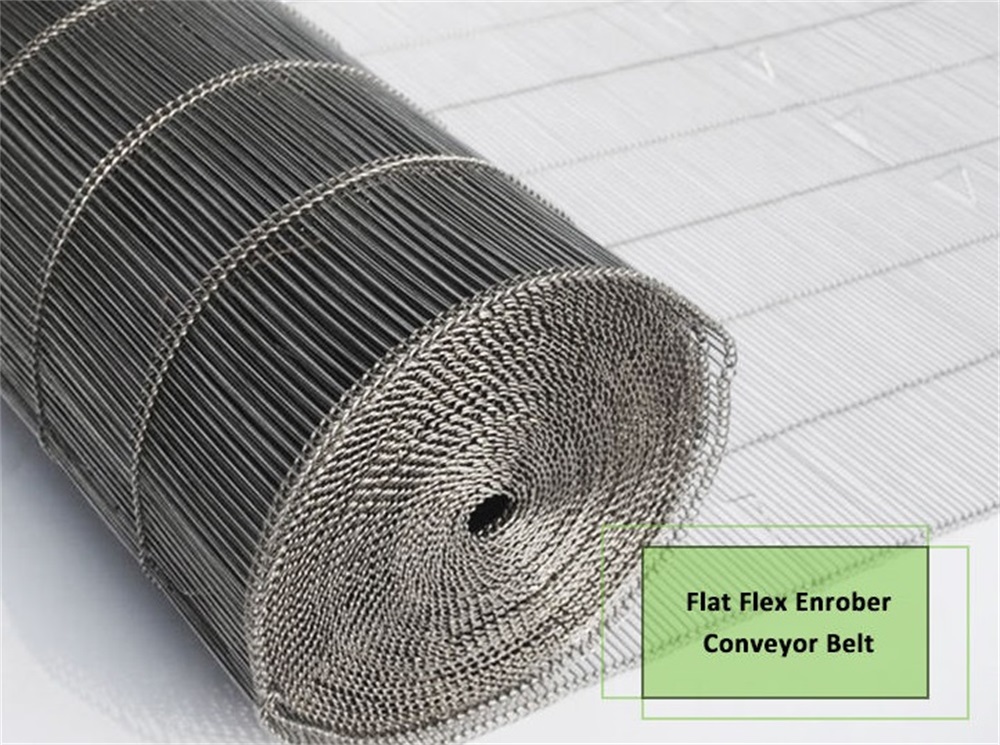

The flat wire belt is a continuous assembly of flat wire pickets connected by straight round wire inserted through positioned holes. It has a smooth carrying surface which makes it popular in the canning and food processing industries, as well as the drying, freezing, washing, and parts transfer processes.
Smooth, flat surface.
Positive sprocket drive.
Easy replacement of damaged or worn sections.
Open mesh for drainage, airflow and cleaning.
Economical compared to woven wire belts.
| Name | High temperature food grade stainless steel conveyor mesh belt |
| Material | Stainless steel 304 wire,low carbon steel wire |
| Wire diameter(No.2) | 0.9-2.8mm,etc. |
| Chain pitch (No.1) | 4.4-12.7mm,etc. |
| Spiral pitch(No.3) | 65mm,67mm,70mm,etc. |
| Opening number | 3openings,5openings,7openings,etc. |
| Roll wide | 18cm,21cm,48cm,50cm,etc. |
Available materials: galvanized, high carbon steel, 304 stainless steel and 316 stainless steel.
| Specifications of Flat Flex Conveyor Belts | ||||
| Item | Wire diameter(mm) | Pitch(mm) | Open area(%) | Edge type |
| FFCB-01 | 0.9 | 4.24 | 77 | Single/ double |
| FFCB-02 | 0.9 | 5.64 | 82 | Single/ double |
| FFCB-03 | 1.0 | 5.5 | 79 | Single/ double |
| FFCB-04 | 1.0 | 5.6 | 79.5 | Single/ double |
| FFCB-05 | 1.27 | 4.3 | 67 | Single |
| FFCB-06 | 1.27 | 5.5 | 73 | Single/ double |
| FFCB-07 | 1.27 | 6.0 | 76 | Single/ double |
| FFCB-08 | 1.27 | 6.35 | 77 | Single/ double |
| FFCB-09 | 1.27 | 7.26 | 80 | Single/ double/ C-shape |
| FFCB-10 | 1.40 | 6.40 | 76 | Single/ C-shape |
| FFCB-11 | 1.60 | 7.26 | 75 | Single/ double/ C-shape |
| FFCB-12 | 1.83 | 12.00 | 81 | Single |
| FFCB-13 | 1.83 | 12.70 | 82 | Single/ C-shape |
| FFCB-14 | 2.08 | 9.60 | 75 | Single/ C-shape |
| FFCB-15 | 2.35 | 12.70 | 78 | Single/ C-shape |
| FFCB-16 | 2.35 | 20.32 | 85 | Single |
| FFCB-17 | 2.80 | 12.70 | 72 | Single/ C-shape |
| Note: Custom specification is available if you can't find the suitable size. | ||||
The standard flat flex conveyor belt is flat and without any convex or concave surface. The standard flat flex conveyor belt is suitable for almost all the applications. Except for the standard flat flex conveyor belt, there are two other types of flat flex conveyor belt. They can be used in different applications for fixing and sorting. You can refer to them and decide if it suit for you.

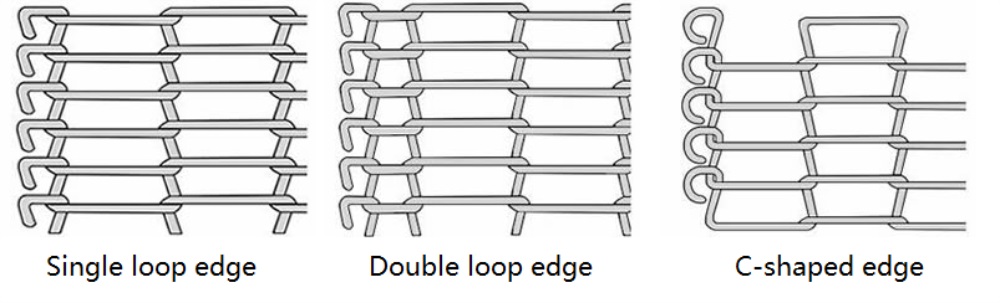

The flat flex conveyor belt can be formed into different edge types, which can suit different equipment and driven types. You can choose the perfect one suit for you.
·Single loop edge.
·Double loop edge.
·C-shaped loop edge.

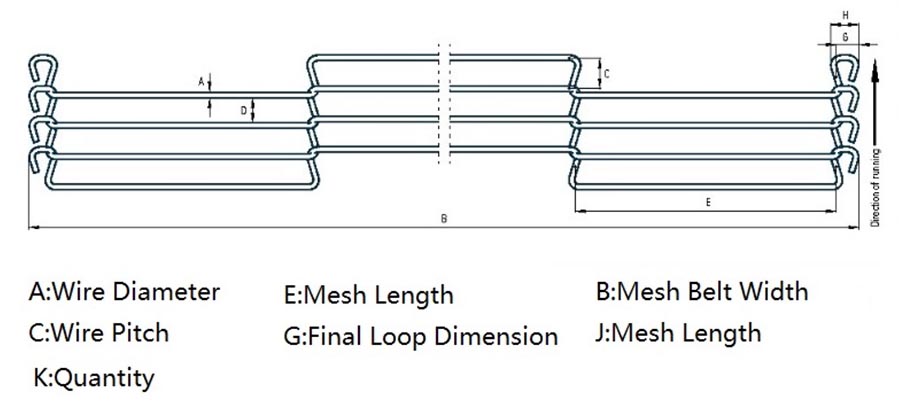

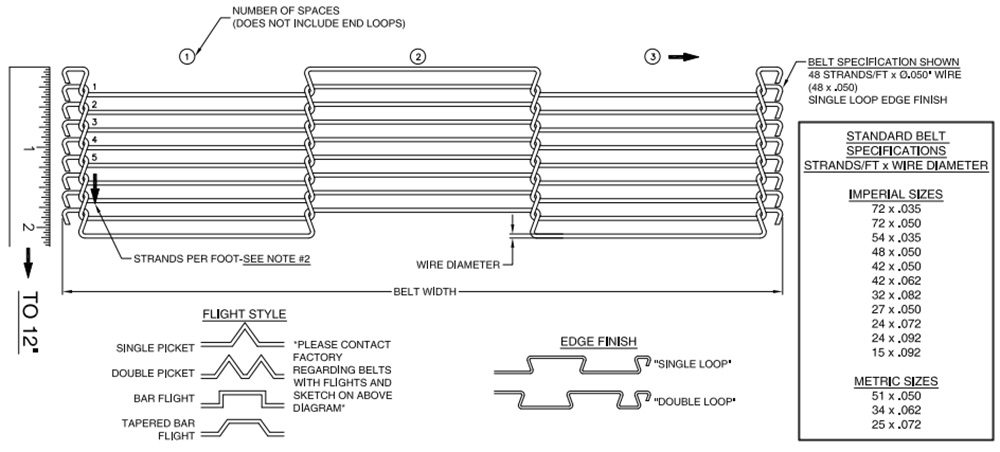

Flat Flex Wire Mesh Belt Drawing

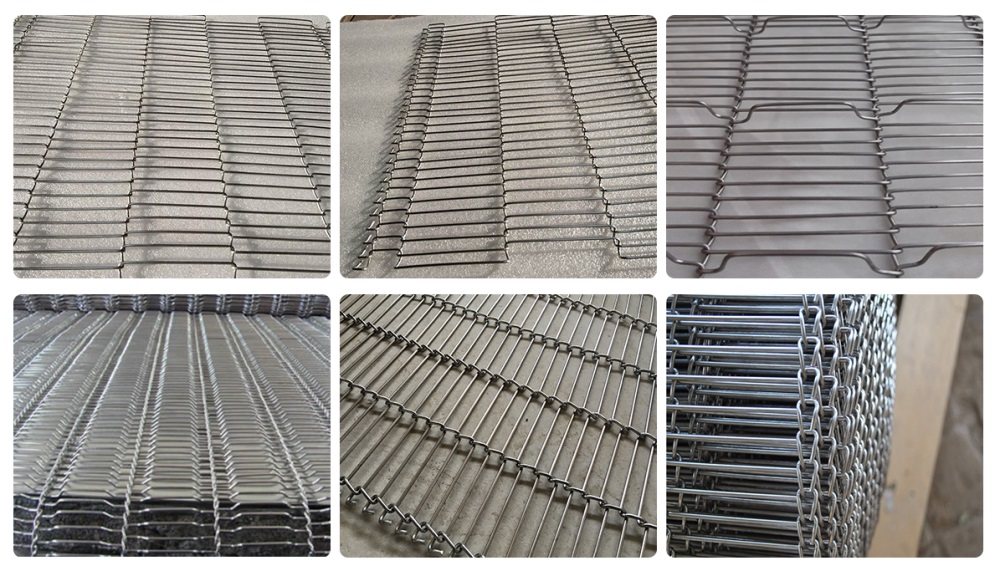

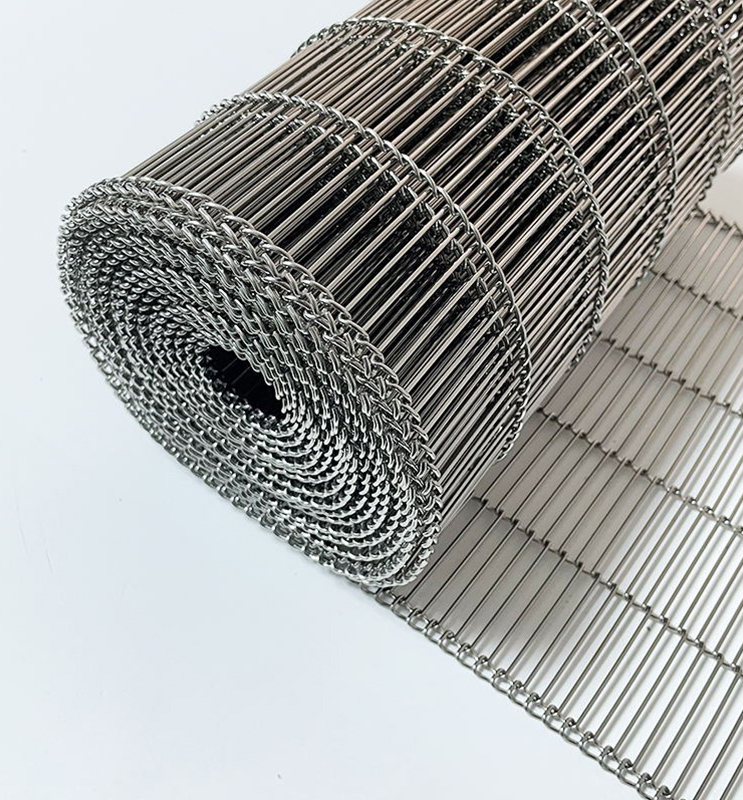

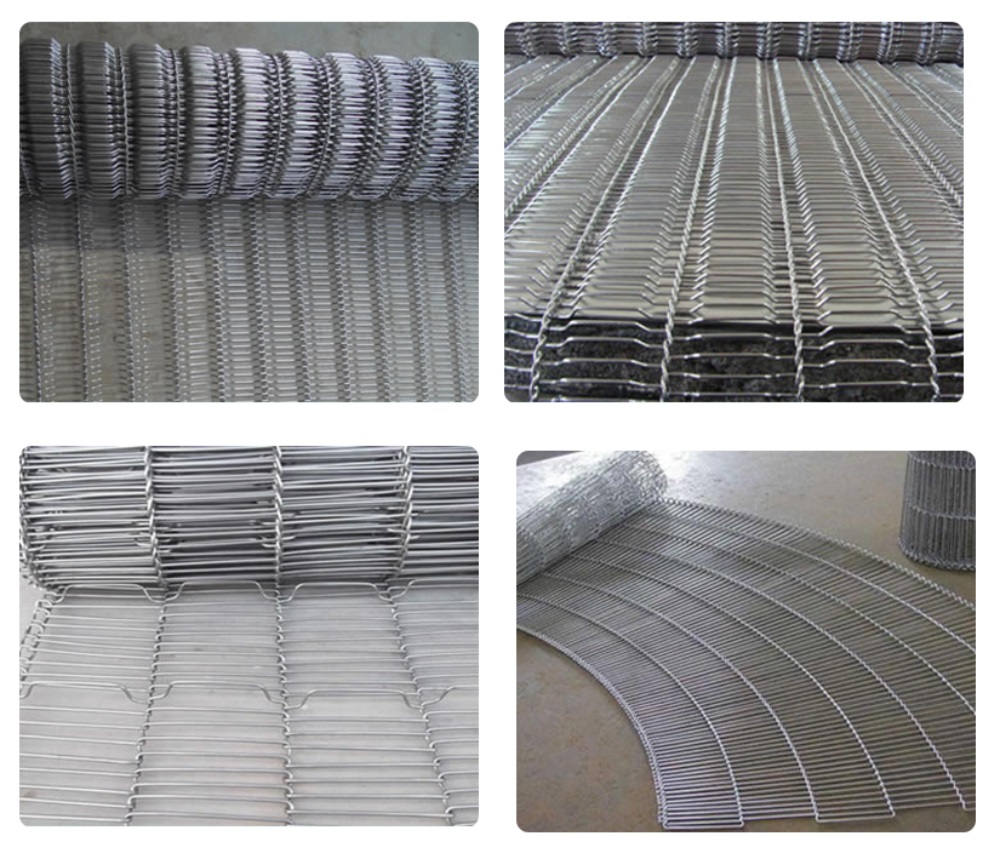

Flat Flex Wire Mesh Belt Show

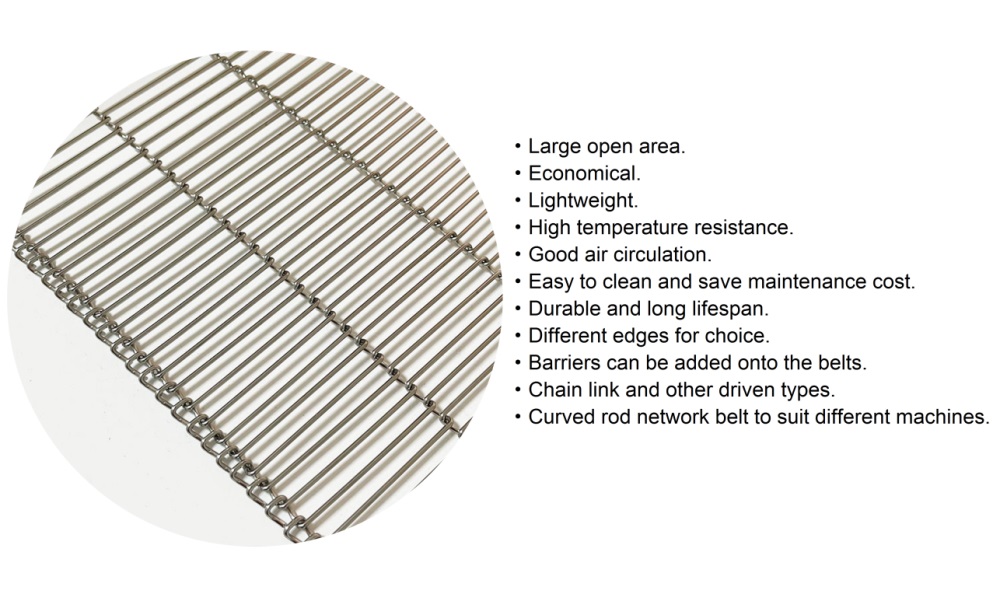

●Large open area.
●Economical.
●Lightweight.
●High temperature resistance.
●Good air circulation.
●Easy to clean and save maintenance cost.
●Durable and long lifespan.
●Different edges for choice.
●Barriers can be added onto the belts.
●Chain link and other driven types.
●Curved rod network belt to suit different machines.

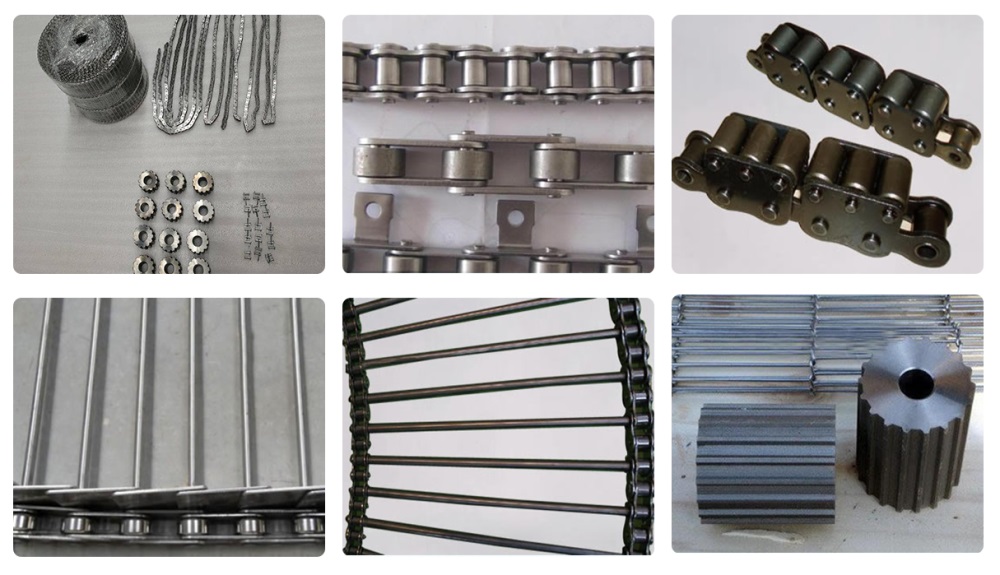

Installation Accessories

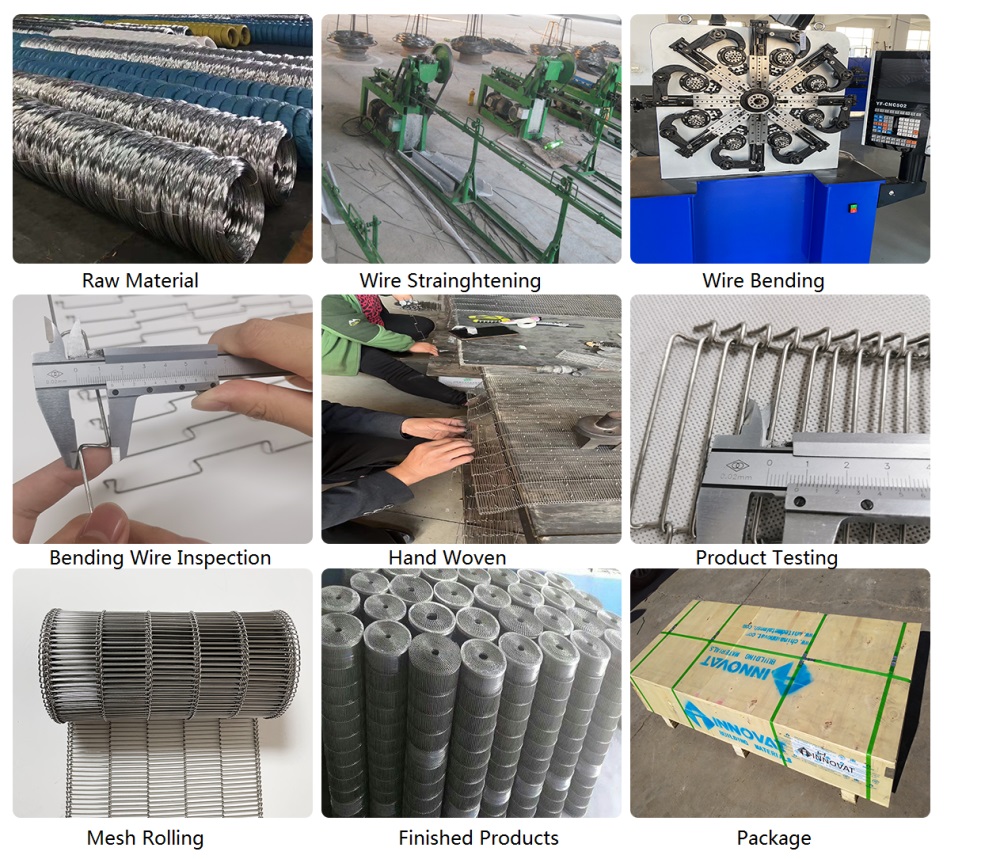

Production Process

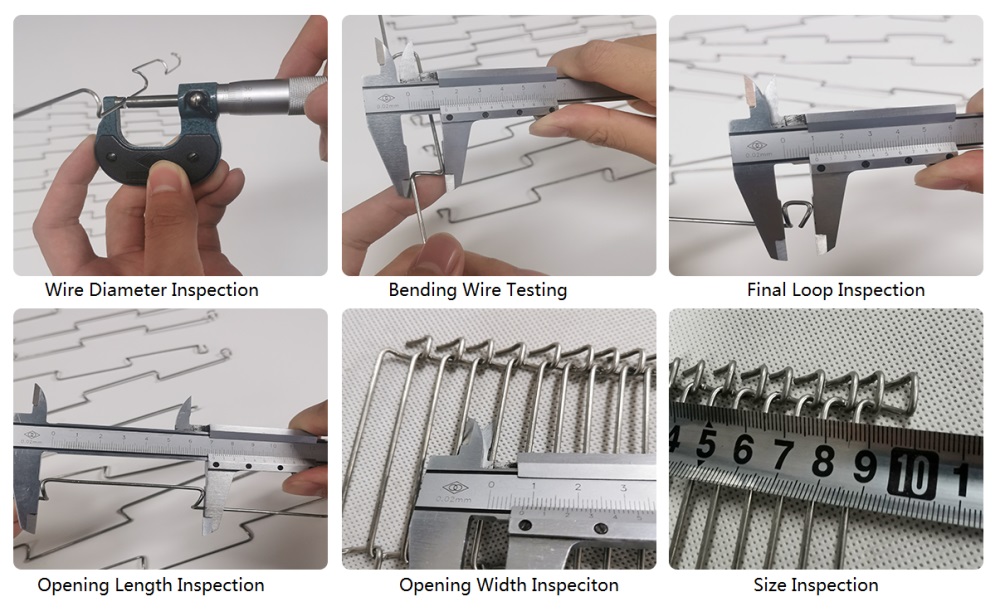

Product Inspection
Quotation Parameters
Application

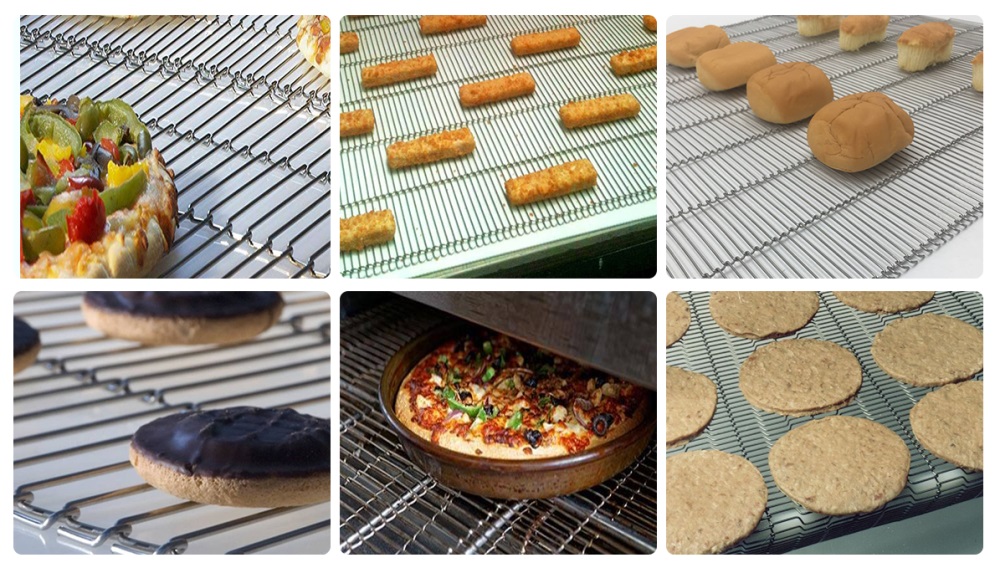

Flat flex conveyor belts are mainly used in for quick-frozen food, fried food, sugar machine, chocolate coating with a variety of bread and pastry food baking conveyor line. Flat flex conveyor belts are used in the food industry for the production of the following products: small dessert, fish products, pizza, vegetables, bread, flour, cakes, meat, candy, potatoes, biscuits, chocolate, nuts and fruit.

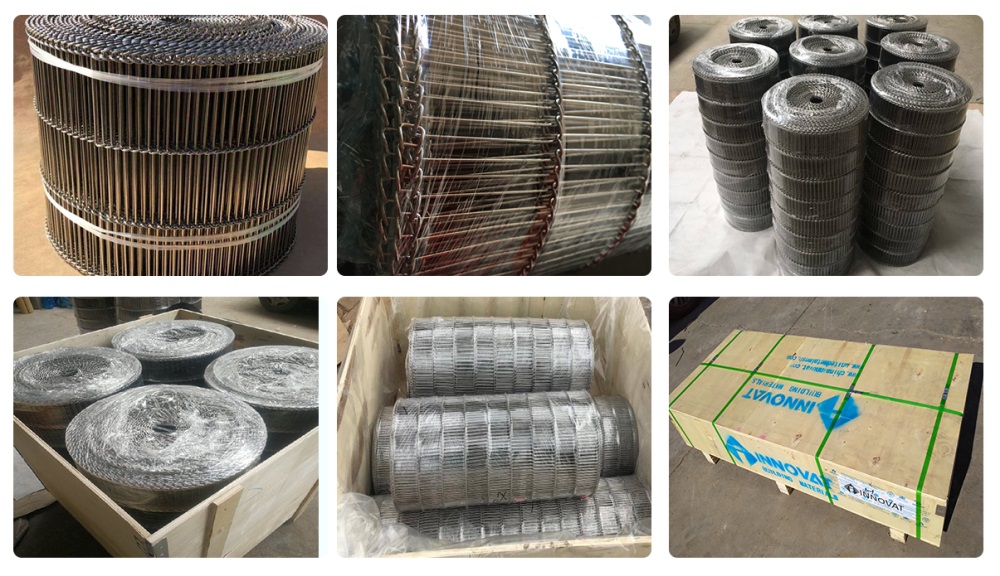

Flat Flex Wire Mesh Belt Package and Shipment
