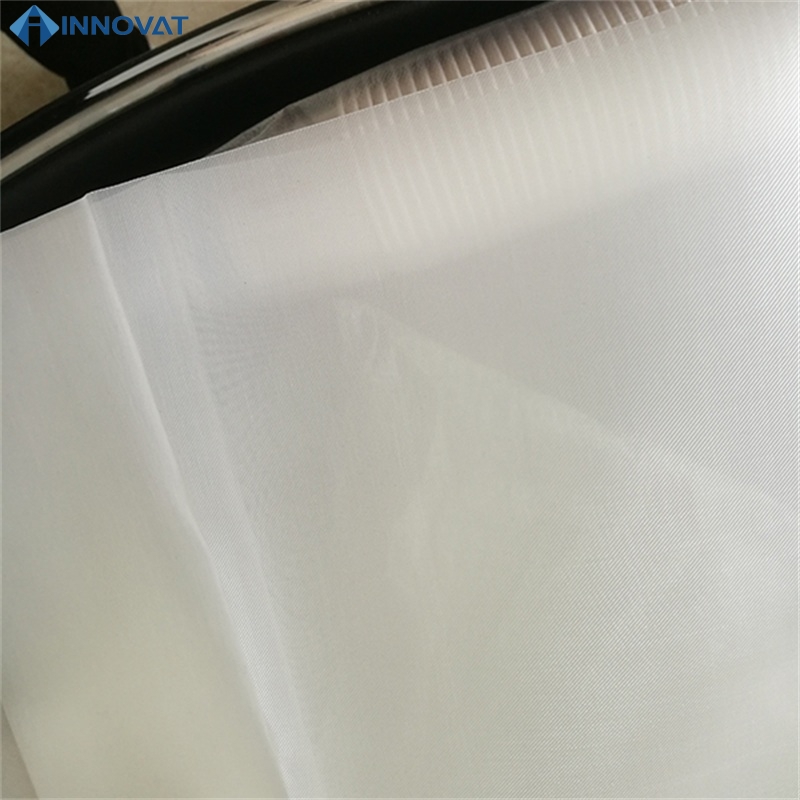

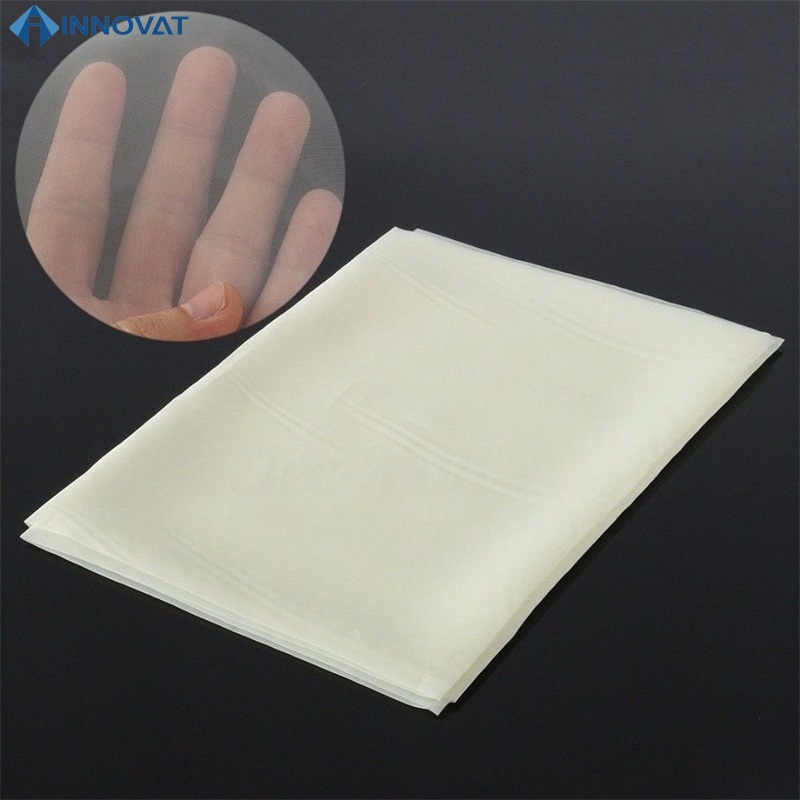

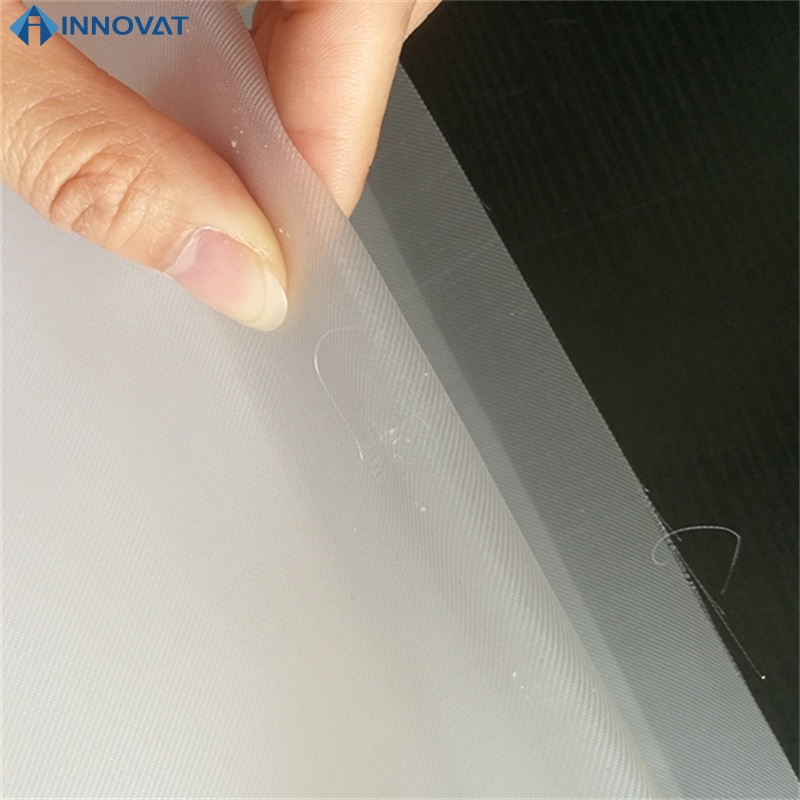

Nylon Mesh

Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications.

Inquire Now

Product Introduction

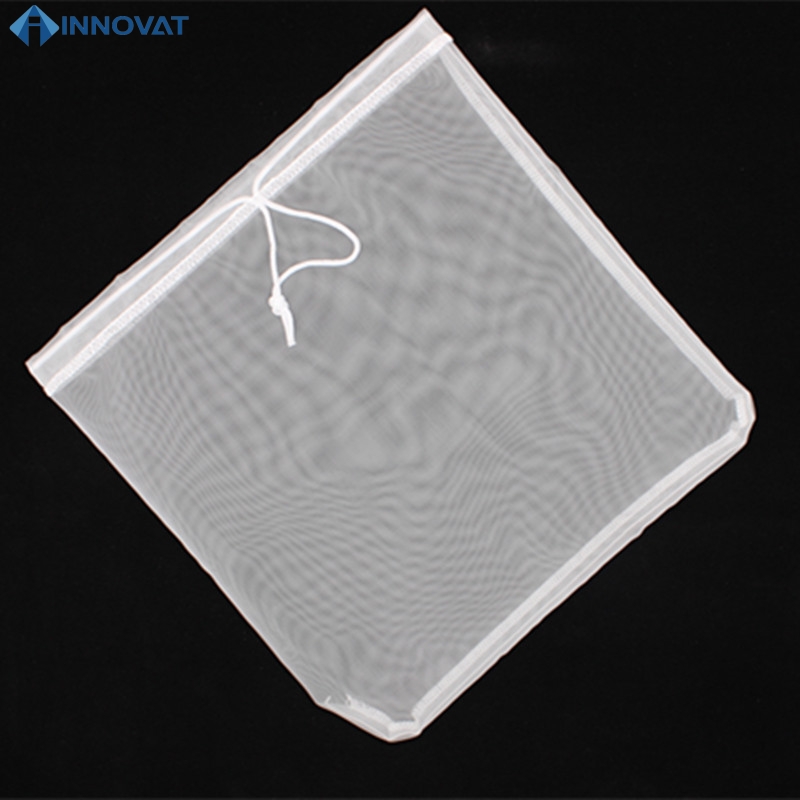

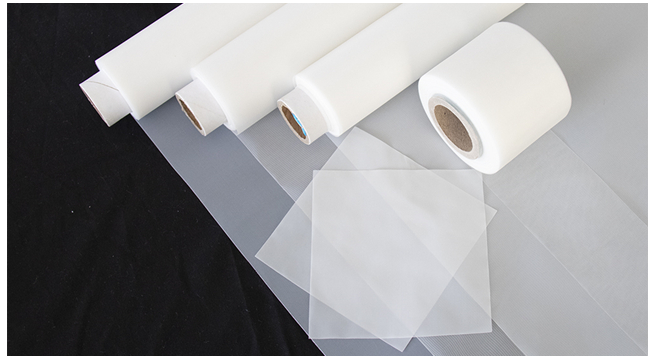

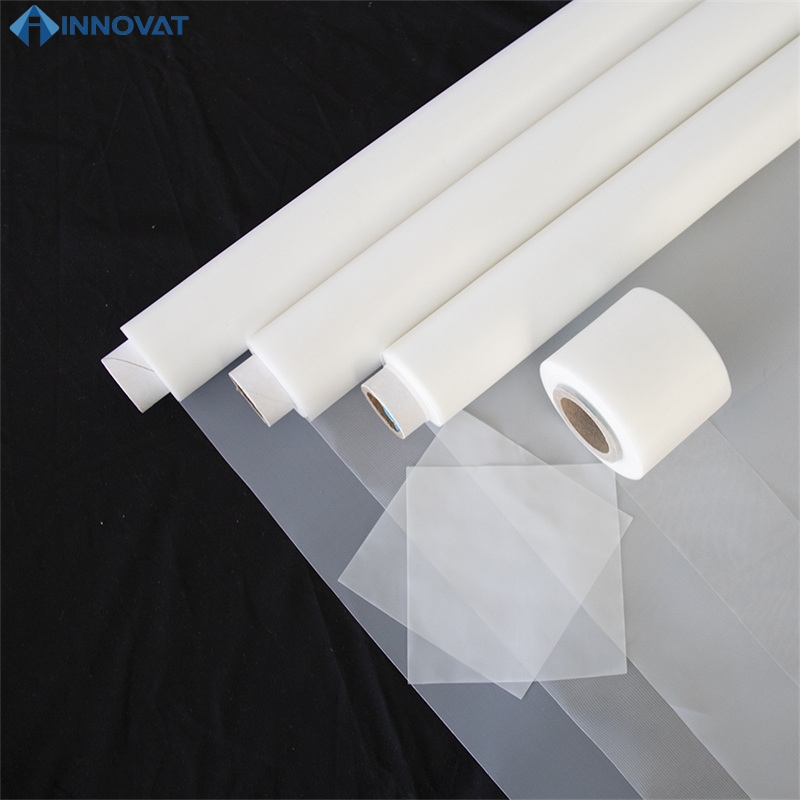

We can supply 0.05m to 3.65m wide, 1500m long jointless nylon filter mesh (nylon filter cloth), to meet the industry-specific applications. With more than 30 years experience of filter mesh manufacturing, We can make more than 10 types of processed nylon mesh products, such as nylon mesh filter discs, nylon mesh filter sheets, filter tubes, nylon mesh filter bags, nut & juice filter bags, etc. Customized products are accepted.

Our nylon filter mesh has passed food grade test and can be used for the collection of algae & cels, particle analysis & filtration, paint monitoring, medical filtration(blood filtration), etc.

Nylon Mesh

Product Specification

Product Name	Food grade 5 10 25 30 40 50 60 70 80 90 100 150 200 250 300 400 500 micron nylon wire mesh fabric cloth screen filter mesh
Color	White, black, grey, red, blue
Material	100% nylon monofilament
Certificate	SGS food grade test
Weave type	Plain woven, twill woven, dutch woven
Mesh Opening	5-2000um
Common Width	100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized
Roll length	30-100m or customized
Mesh Count	4T-240T(10mesh~600 Mesh/inch)
Samples	1m free

Nylon Filter Mesh(Nylon Filter Cloth)
Model	Mesh/cm	Mesh/inch	Aperture (μm)	Thread Dia. (μm)	Open Area(%)	Thickness(μm)	Theoretical Ink(cm3/m2)
5-500	5	13	1500	500	56	1000	308
6-400	6	15	1267	400	58	840	228
7-350	7	18	1079	350	57	640	209
8-350	8	20	900	350	52	645	232
9-200	9	24	911	200	67	370	92
9-250	9	24	861	250	60	460	145
9-300	9	24	811	300	53	570	205
10-250	10	25	750	250	56	530	148
12-300	12	30	533	300	41	495	256
14-200	14	35	514	200	52	380	135
16-200	16	40	425	200	46	400	155
16-250	16	40	375	250	36	420	240
17-200	17	42	388	200	44	380	160
18-220	18	45	366	220	37	400	207
20-200	20	50	300	200	36	375	190
24-150	24	60	267	150	41	305	130
28-150	28	70	207	150	34	278	150
30-120	30	76	213	120	41	230	105
32-100	32	80	213	100	46	240	77
36-100	36	90	178	100	41	195	86
40-100	40	100	150	100	36	192	95
44-100	44	110	127	100	31	175	105
48-80	48	120	128	80	38	150	73
56-60	56	142	120	60	44	110	48
59-60	59	150	110	60	42	98	50
64-60	64	163	96	60	38	120	55
72-50	72	183	89	50	41	90	44
80-50	80	203	75	50	36	93	48
88-40	88	224	74	40	42	65	34
96-40	96	244	64	40	38	76	37
100-40	100	254	60	40	36	78	39
104-40	104	264	56	40	34	79	40
120-40	120	305	43	40	27	80	46
Note:The above datas are theoretic,please reference the actual data if there is a difference!

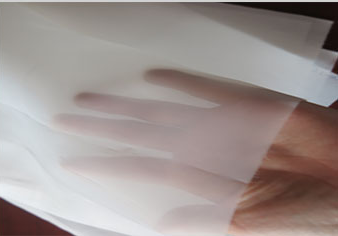

20 Mesh

Nylon Mesh

Pharmaceutical, chemical, dyestuff, food, fishing, filtration, anticorrosion,insect prevention, screen, etc.

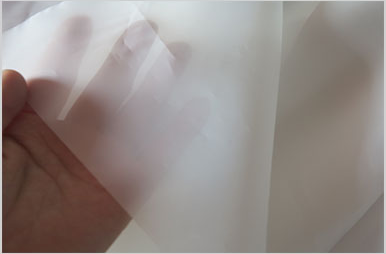

40 Mesh

Nylon Mesh

Artwork: Extremely low detail. Seriously, it's like printing through a screen door. Inks: Really thick inks, or inks with large particles, like glitter inks.

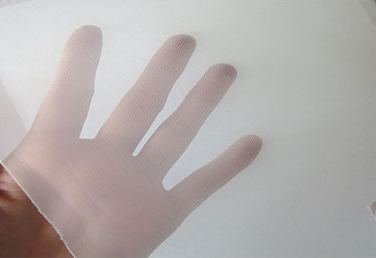

100 Mesh

Nylon Mesh

It is suitable for the tofu and soya-bean,milk and other food and beverage,home-made filtering.

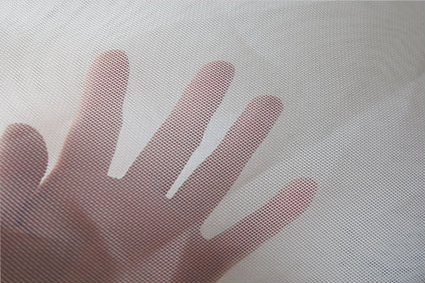

250 Mesh

Nylon Mesh

Mesh can be used as a tea filters, it' S non-toxic harmless, good and inexpensive.

Product Features

1. Non-toxic,odourless,tasteless,high strength,high elongation,good elasticity.
2. With high toughness, good elasticity, resistance to weak acid, oil resistance, alkali resistance, wear resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics. Its application range is very wide.
3. High material quality, corrosion resistance, wear resistance, long use life, smooth surface high strength, strong elastic, ink permeability and good resilience.
4. Excellent alkaline resistance.
5. High precision,unifirm thread diameter
6. It has a working temperature of up to 120 degrees ℃
7. Stable chemical and physical properties

8. Available in disc, tube, bag and special shapes
9. Compliance with food grade

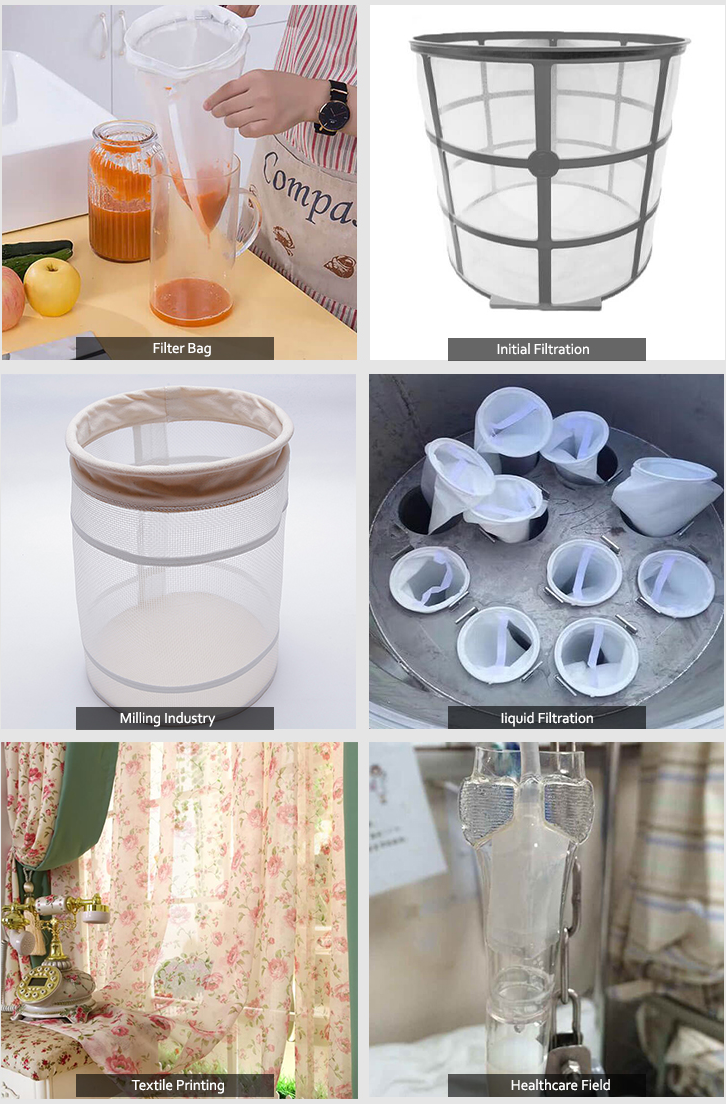

Product Application

Nylon Mesh
