Candle filter also named the Melt Filter Element, is mainly used for high temperature, high pressure, high viscosity polymer, polyester melt filtration. The filter upper and lower end caps are made of stainless steel to ensure corrosion resistance.
Candle Filter Introduction
Candle filter also named the Melt Filter Element, is mainly used for high temperature, high pressure, high viscosity polymer, polyester melt filtration. The filter upper and lower end caps are made of stainless steel to ensure corrosion resistance. The filter medium is made of stainless steel fiber sintered felt and stainless steel wire braided mesh is folded and corrugated. The dimensions are small and the filter area is large. It can be cleaned repeatedly. With the pore gradient formed by layers of different pore sizes,the stainless steel sintered fiber felt product can achieve higher rating
and larger holding capacity.
Candle Filter Specifications
| Product name | Pleated candle filter element |
| Filter media | Wire mesh and sintered fiber felt of 304, 316, 316L, 317L, 904L, Monel, Hastelloy, etc. |
| PH range | 1-14 |
| Working temperature | -50℃ - 800℃ |
| Working pressure | 30Mpa |
| Micron rating | 1-300um |
| Diameter | 25 40 50 60 100 mm, customize provided |
| Length | 5 10 20 30 40 inches, customize provided |
| Thickness | 2mm, customize provided |
| Connectors | Standard interface(222,220,226), threaded connection, fast interface connection, flange connection, tire rod, special customized interface connection |
| Application | Screening, classifying, filtration, separating of plastic fiber and polymer fiber melt filtration and chemical fluid filtration. |
| Properties | High strength, corrosion resistance, good air permeability, large filtration area, high particle holding capability, easy washing and back washing, accurate filtering |
| Technique | Woven / Welded / Sintered |

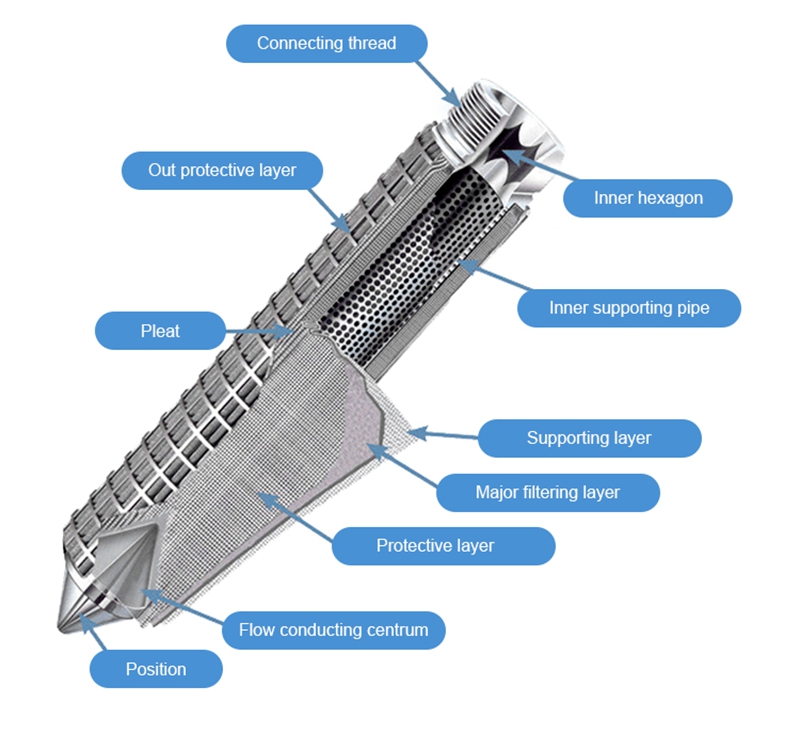

Candle Filter Structure

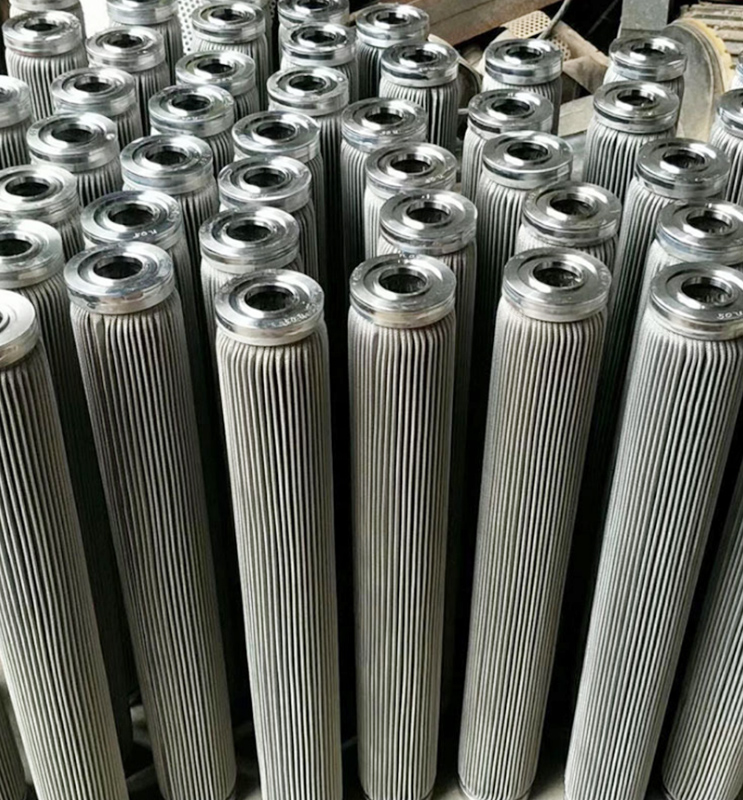

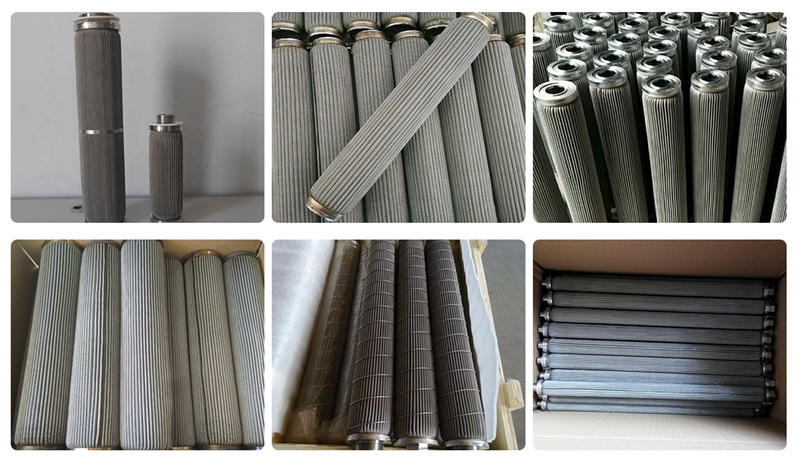

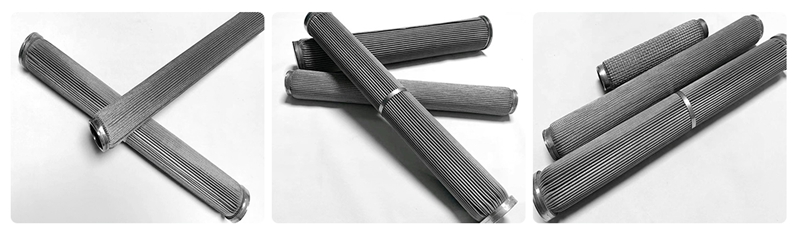

Candle Filter Show

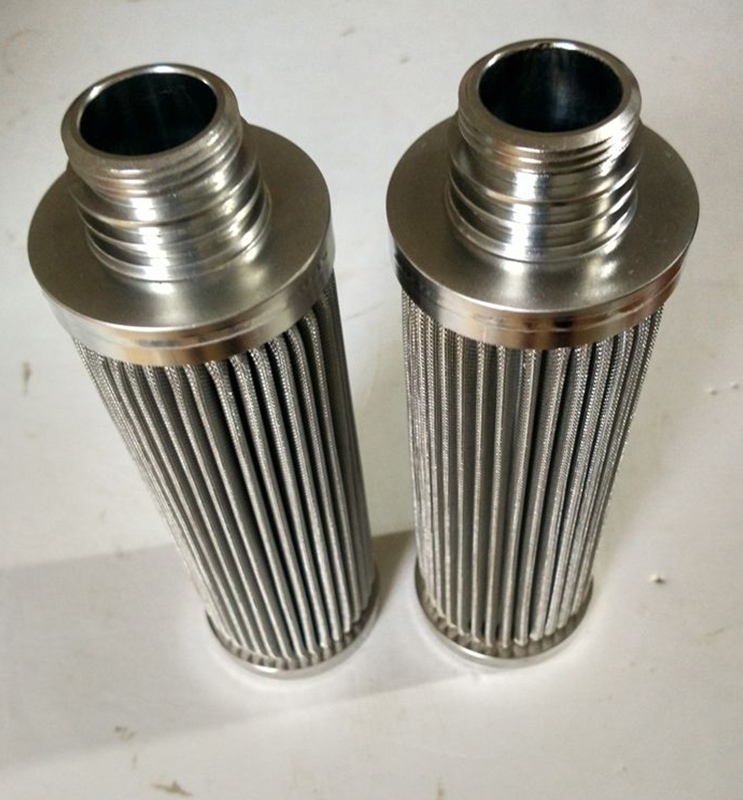

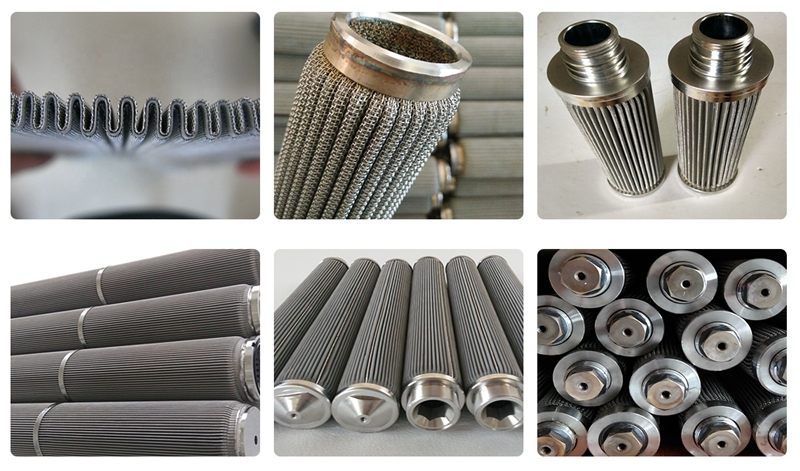

Candle Filter Details

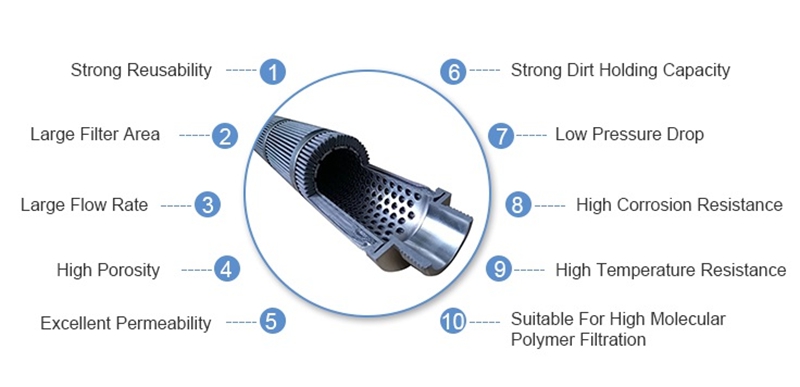

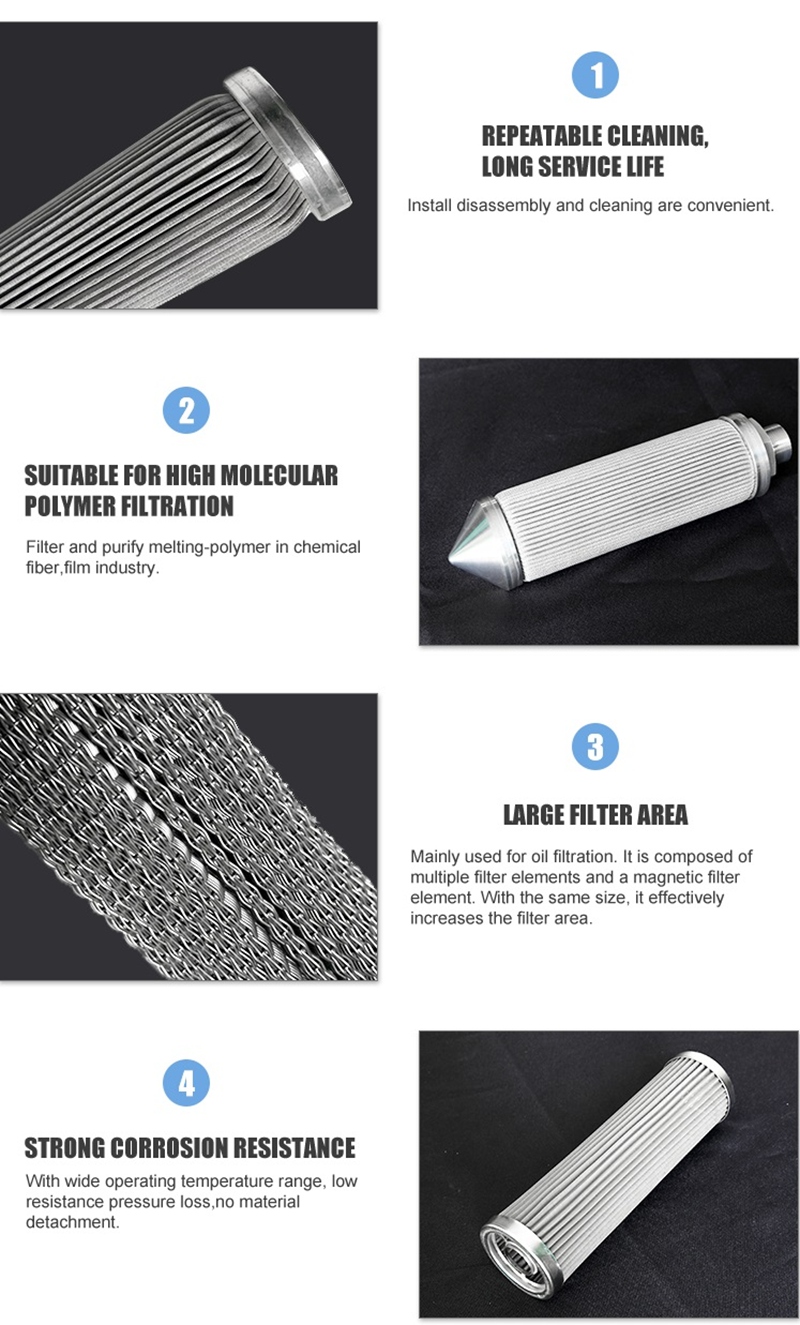

Candle Filter Features

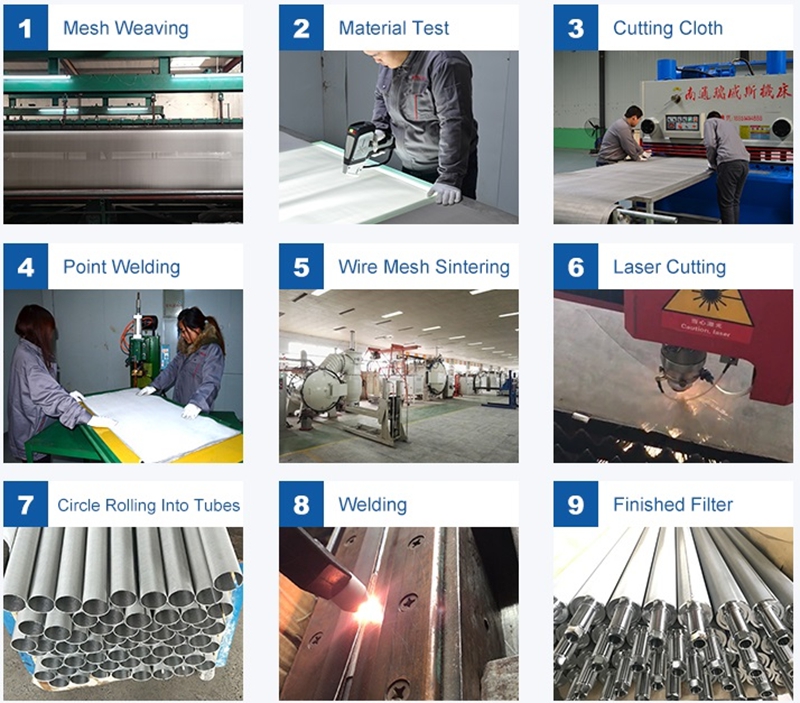

Candle Filter Production Process
Candle Filter Inspection

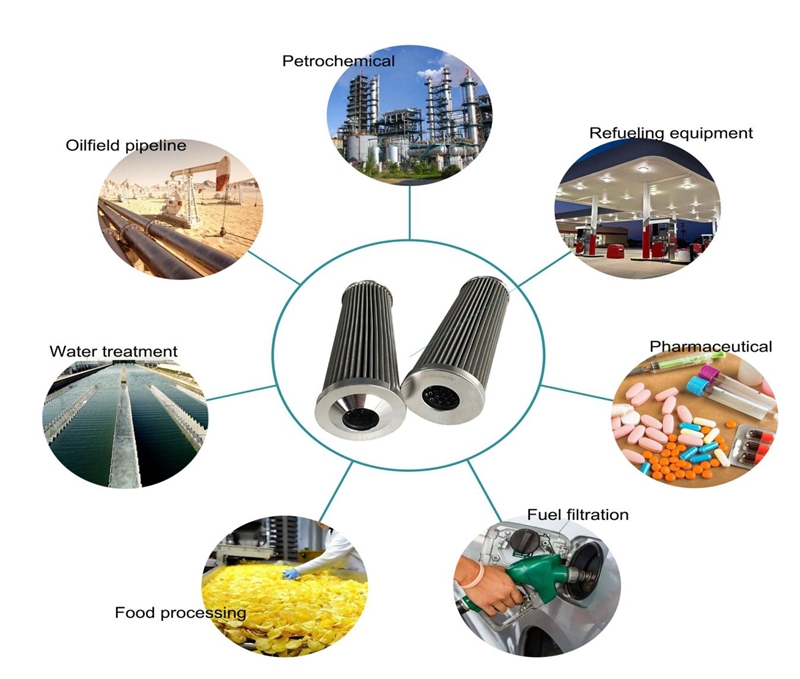

Candle Filter Application

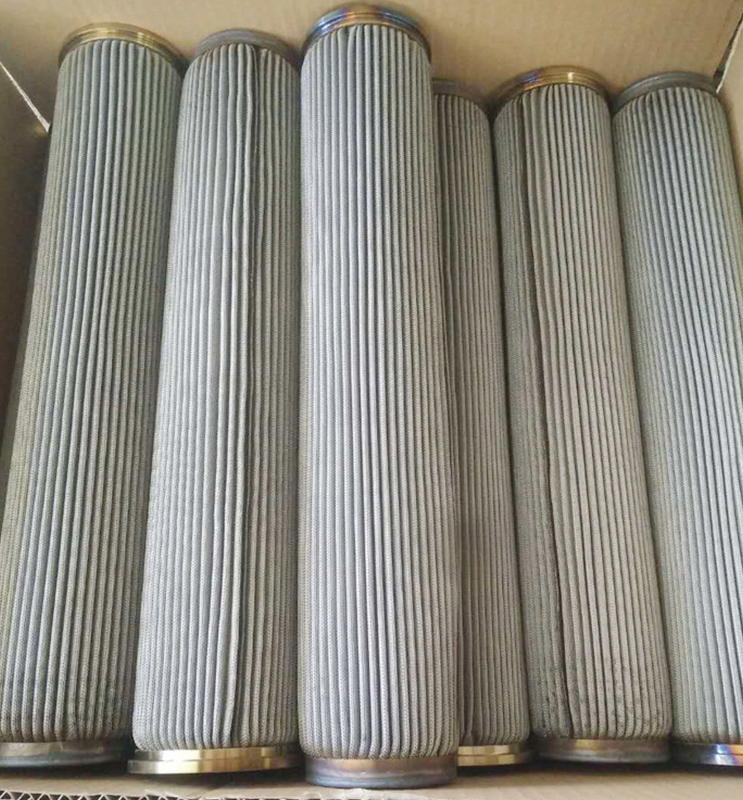

Candle Filter Package
