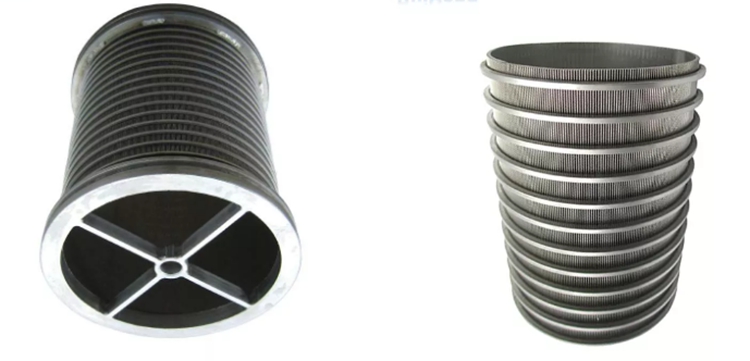

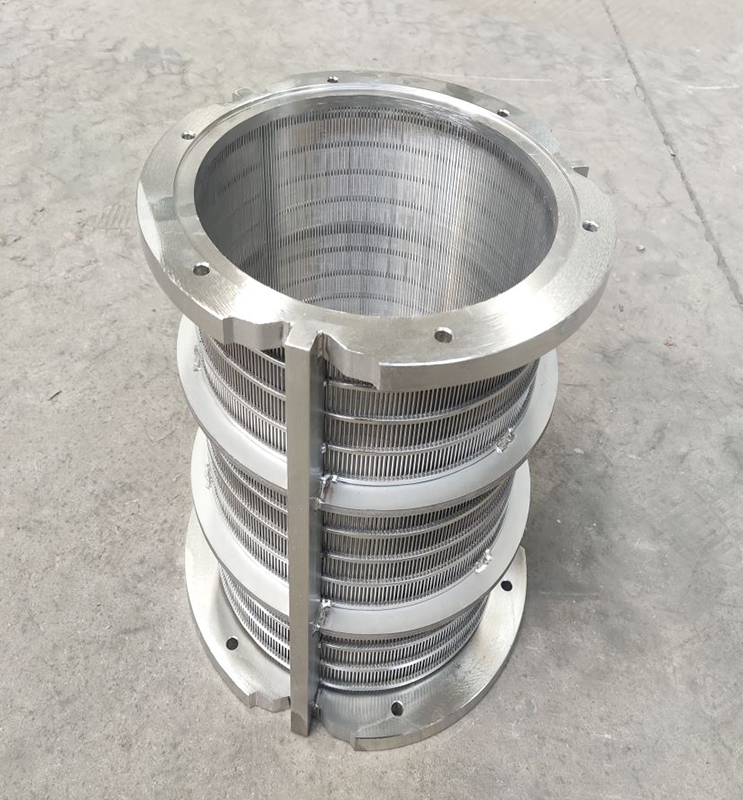

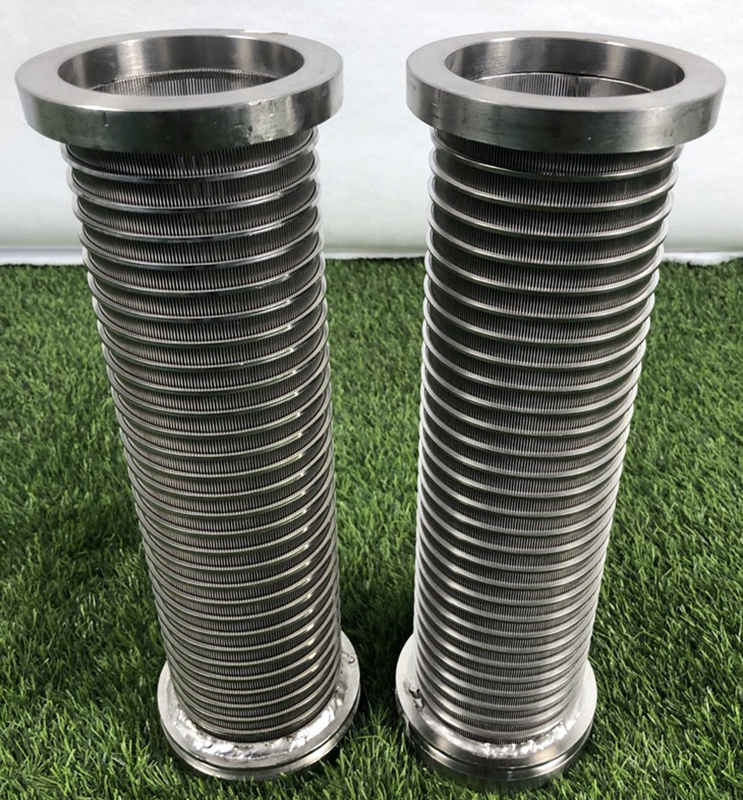

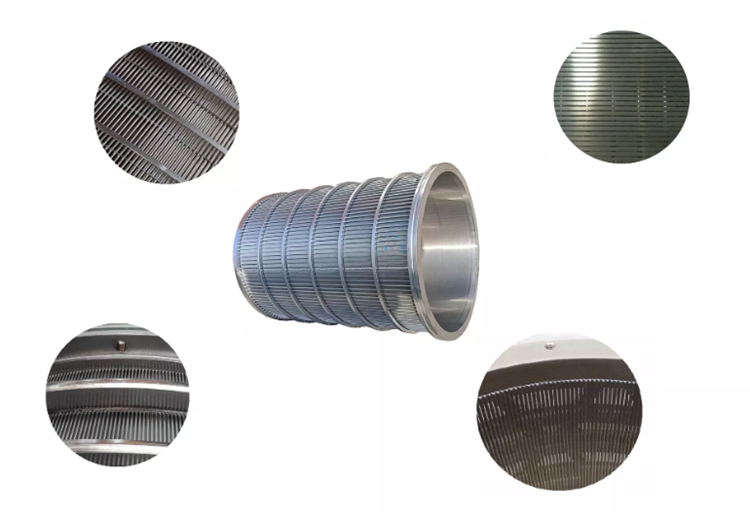

Wedge wire Johnson screen filter tube, also called Wedge Wire Screen Tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Introduction

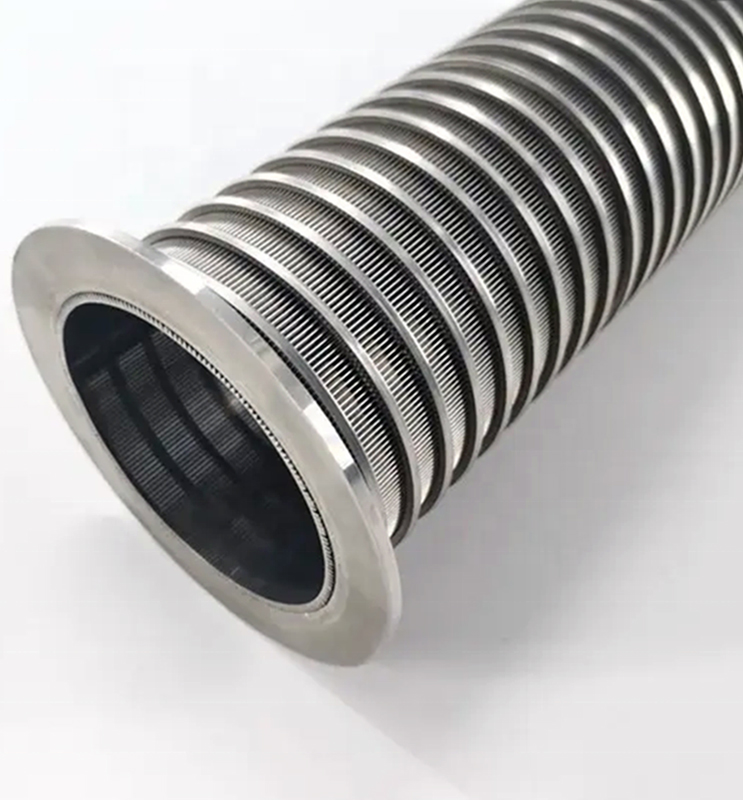

Wedge wire Johnson screen filter tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

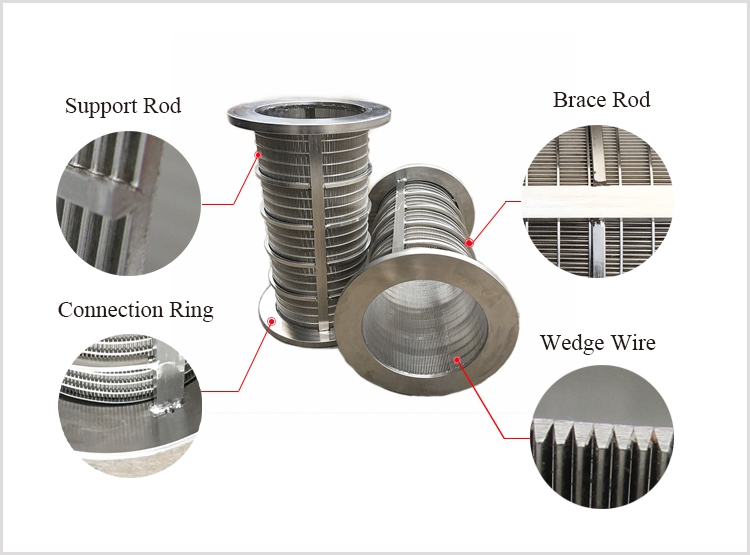

The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Specification
| Material | SS304, SS 304L, SS 316，SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| OD | 19-2000mm | ||||||
| ID | 13-1931mm | ||||||
| Length | Up to 6M | ||||||
| Slot | Min.20 micron | ||||||
| Wedge wire | 0.5*1.5 | 0.75*1 | 1*2 | 1.5*2 | 2*3 | 2*4 | 3*5 |
| Support wire | 1.5*2.5 | 1.5*2.5 | 1.5*2.5 | 1.8*2.5 | 2*3 | 2*4 | 3*5 |
| 2*3 | 2*3 | 2*3 | 2*3 | 2*4 | 3*5 | 3*6 | |
| 3*5 | 3*6 | 3*10 | |||||
| 3*6 | 3*10 | 4*7 | |||||
| 3*10 | 4*7 | 5*6 | |||||
| 4*7 | 5*6 | 5*8 | |||||
| End | Flange, metal ring, cross connector, closed, etc | ||||||
| Note | Customized is available | ||||||
| The following dimensions are for reference | ||||||||||
| V-wire | 20 | 30 | 47 | 60 | 68 | 90 | 118 | 130 | 158 | 191 |
| Width | 0.50 | 0.76 | 1.19 | 1.52 | 1.80 | 2.26 | 2.95 | 3.30 | 4.01 | 4.95 |
| Height | 1.01 | 1.27 | 2.23 | 2.54 | 4.50 | 3.50 | 4.70 | 6.35 | 6.07 | 9.22 |
| Support rod | 63 | 025 | 93 | XJR | 156 | SR250 | SR475 |
| Width | 1.52 | 1.00 | 2.26 | 2.26 | 3.84 | 2.50 | 2.50 |
| Height | 2.54 | 1.50 | 3.51 | 4.80 | 5.51 | 5.60 | 6.30 |

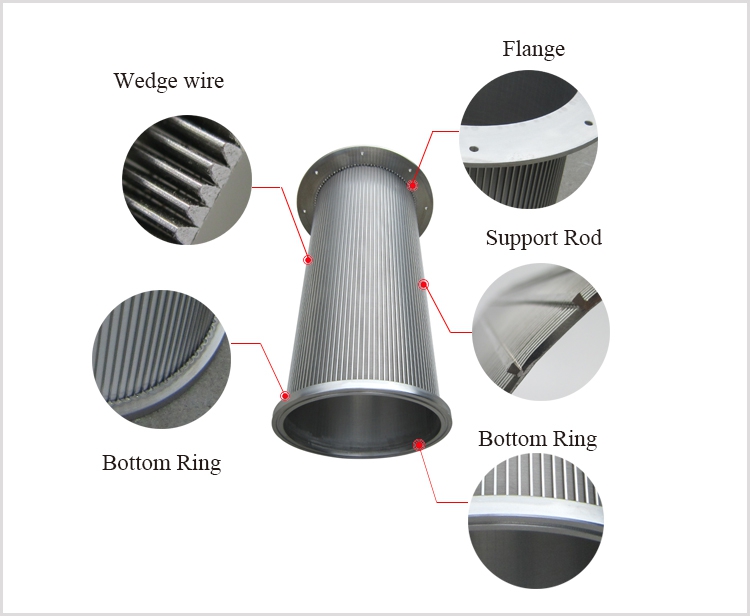

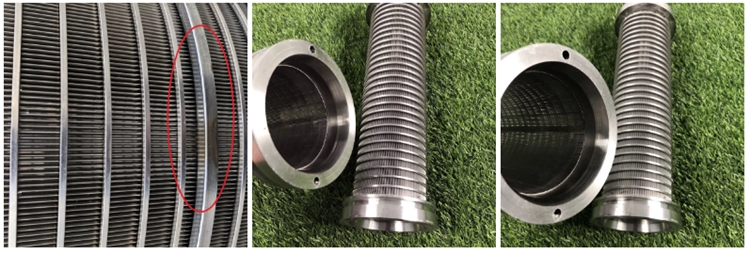

Details

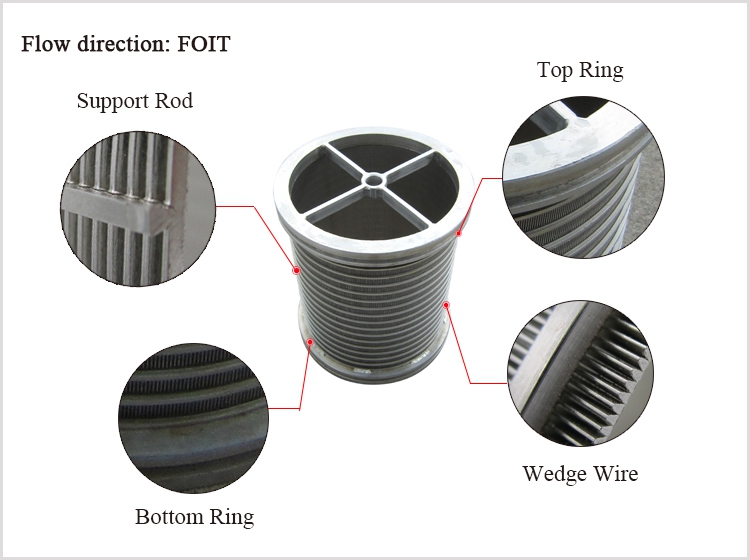

Flow Direction

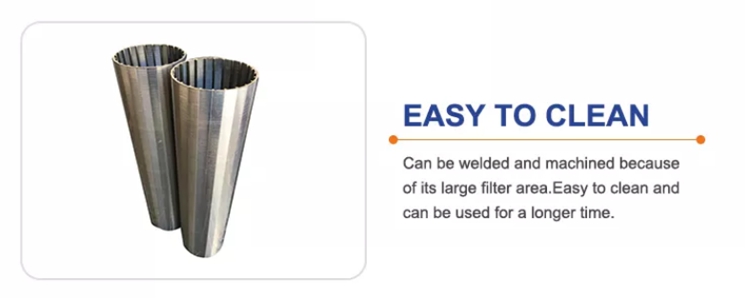

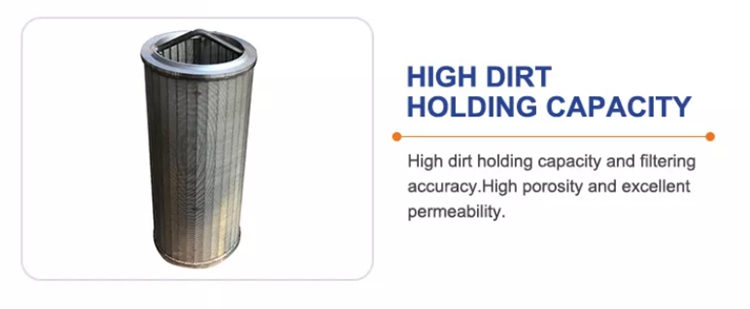

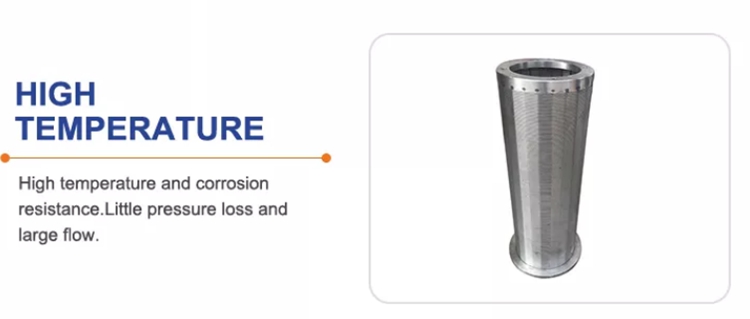

Characteristic

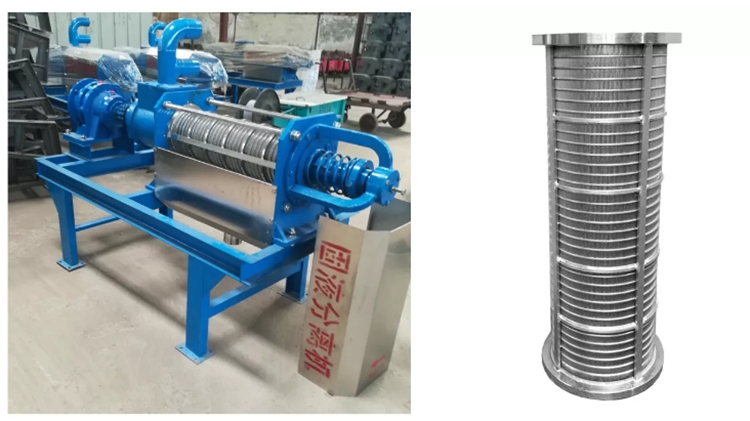

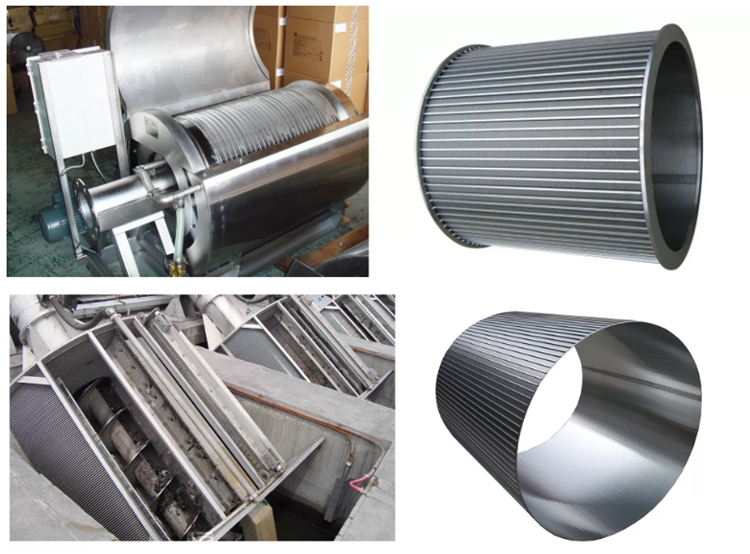

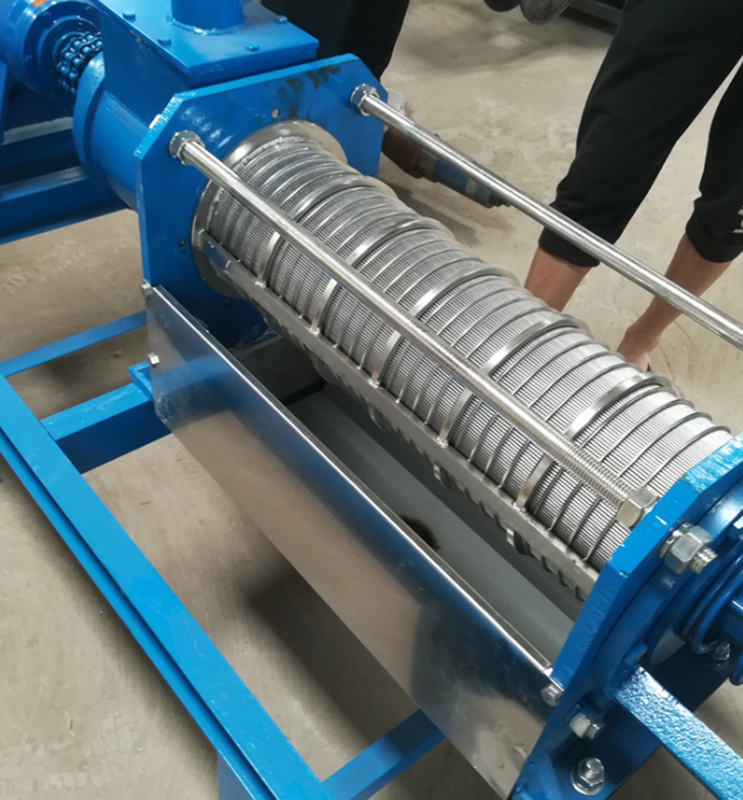

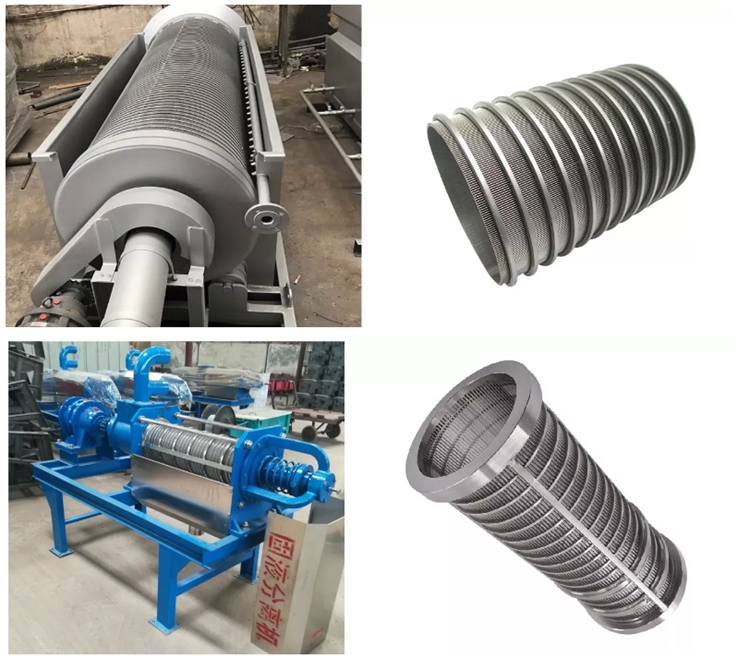

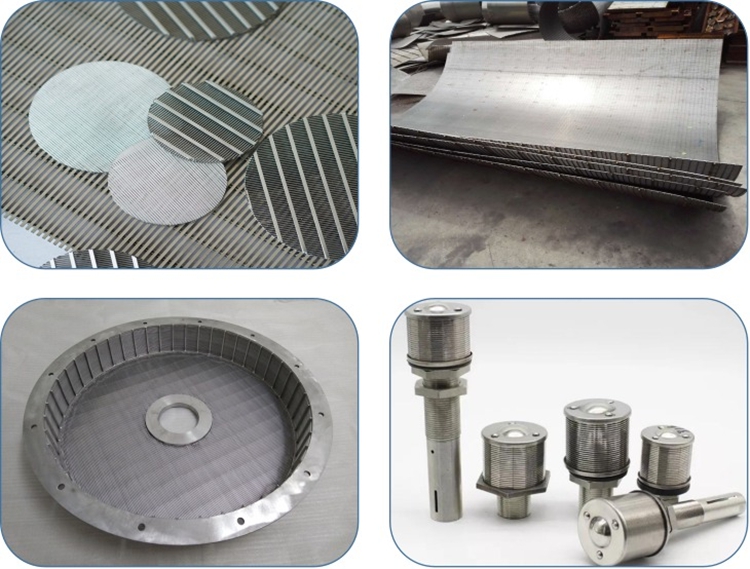

Application
