Constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together. Because of different mesh size and hole size, get a better filtering effect. The bottom high strength steel frame, supporting bar with the moderate tension screen cloth, combined together.
Introduction

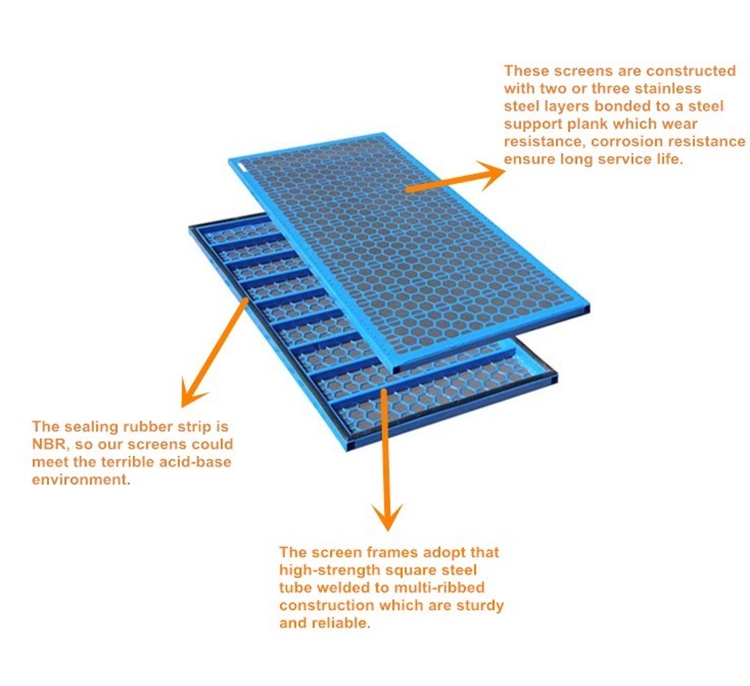

Constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together. Because of different mesh size and hole size, get a better filtering effect. The bottom high strength steel frame, supporting bar with the moderate tension screen cloth, combined together. Infinitely enhance the screen intensity and endurance, get a better filtering effective. Mesh sizes ranging from 20 to 325. The whole cloth is divided into independent small surfaces, prevent the part excessive expansive damaged, with a special rubber plug together to repair damage, can save the time to replace the screen, Increase the efficiency and reduce the cost.
Specification

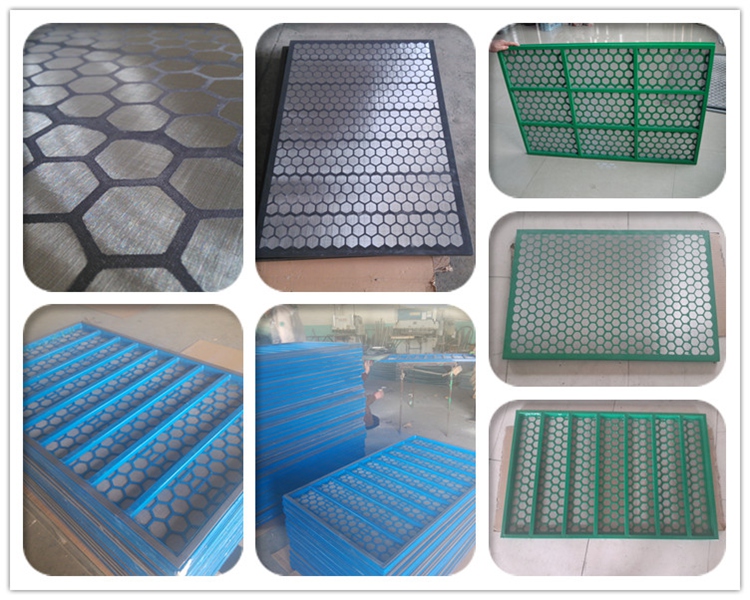

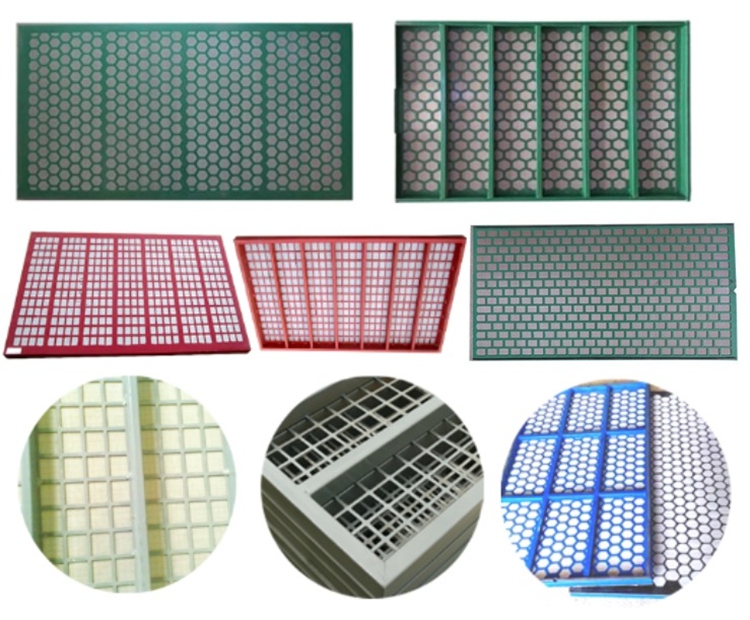

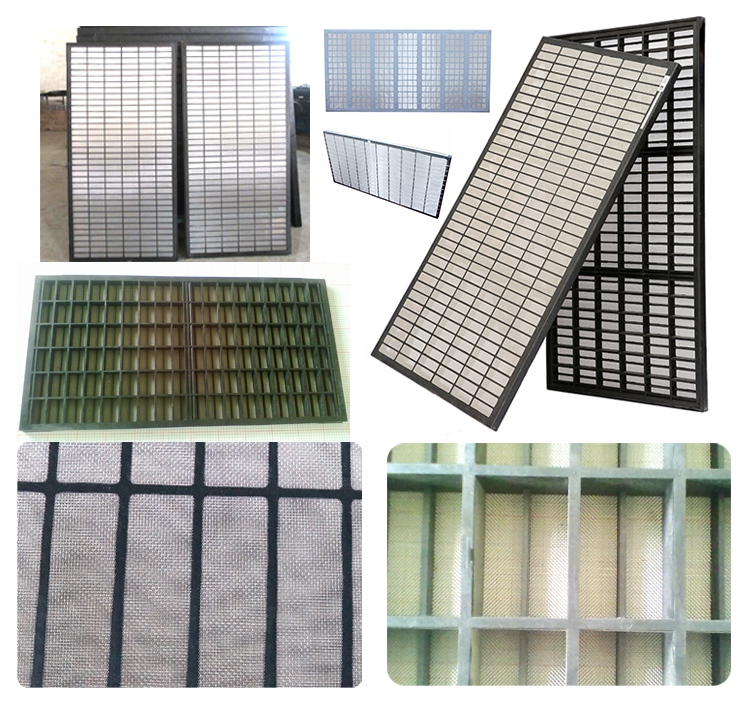

Steel Frame Shaker Screen
Steel Frame Shaker Screen panels use 304 or 316 stainless steel, it infinitely enhance the screen intensily and endurance, get a better filtering effective. each screen attach a specifical rubber plug together to repair damage, can save the time to replace the screen, increase the efficiency and reduce the cost.
| Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight (kgs) |
| BRANDT BL-50/KING COBRA | 20-325 | 1251*635mm | 13.5 |
| SWACO MONGOOSE | 20-325 | 1165*585mm | 14.0 |
| KEMTRON 48 SERIES | 20-325 | 1220*720mm | 17.5 |
| BRANDT VSM300 | 20-325 | 940*676mm | 12.6 |
| SWACO D380 | 20-325 | 1180*712mm | 14.0 |
| SWACO MUMUT | 20-325 | 1115*763mm | 14.0 |
| Others model can be customized according to your specifical sizes and requirements | |||

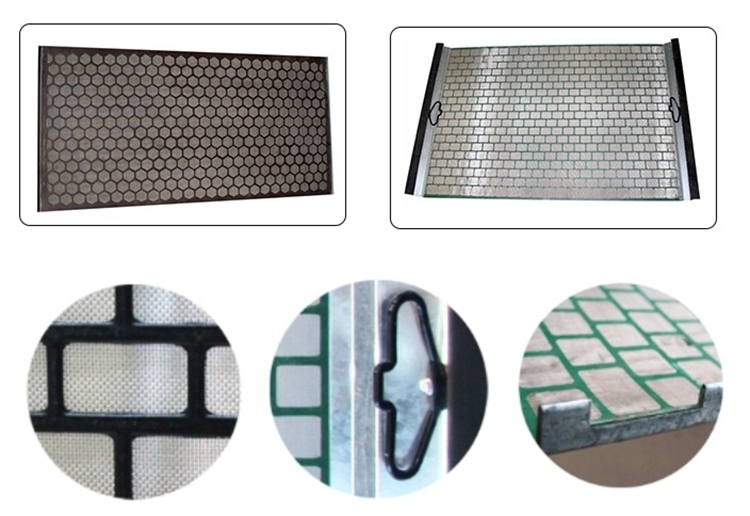

Hookstrip Flat Shaker Screen
| Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight (kgs) |
| FLC2000 PWP | 20-325 | 1053*697mm | 4.8 |
| FLC500 SERIES PWP | 20-325 | 1050*695mm | 6.1 |
| FLC303M PWP | 20-325 | 846*697mm | 4.0 |
| SWACO ALS-2 PWP | 20-325 | 1212*1141mm | 9.0 |
| SWACO DFE | 20-325 | 1225*720mm | 7.0 |
| Other models can be customized according to your specific size and requirments | |||

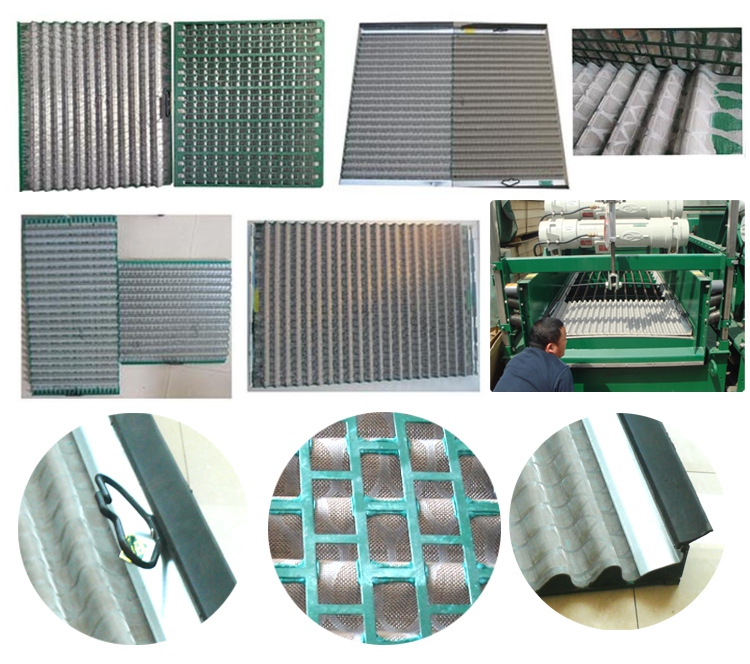

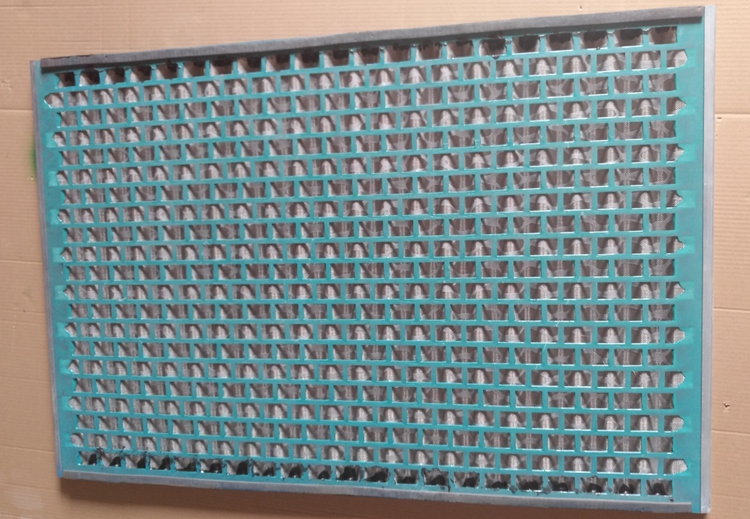

Wave Shaker Screen
Wave shaker screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, after compounded and bended, with a steel backing plate combined together, increase the filtering area 120% to 150% compared to hookstrip flat screen, get a better effective.
| Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight (kgs) |
| FLC2000 | 20-325 | 1053*697mm | 6.0 |
| FLC500 SERIES | 20-325 | 1050*695mm | 7.0 |
| FLC600 | 20-325 | 626*7107mm | 7.0 |
| HYPERFOOL | 20-325 | 1070*570mm | 7.5 |
| Wave | 20-325 | 1165*700mm | 6.5 |
| Others model can be customized according to your specifical sizes and requirements | |||
Composite Shaker Screen
Composite shaker screen use the 304 stainless steel materials. are constructed with 2-4 wire cloth layers combined compositely together, without steel backing plate, can get an effective filtering area and save the shaker screen lifetime.
| Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight (kgs) |
| NCS-300X2 | 20-325 | 1040*600mm | 1.6 |
| ZCN | 20-325 | 1400*460mm | 2.6 |
| NS-115/2 | 20-325 | 1150*1000mm | 2.9 |
| JSS(U.S.A) | 20-80 | 927*914mm | 2.3 |
| SSS(U.S.A) | 20-80 | 1524*1219mm | 4.6 |
| BRANDT 4*5 | 20-325 | 1524*1220mm | 5.0 |
| Others model can be customized according to your specifical sizes and equirements | |||

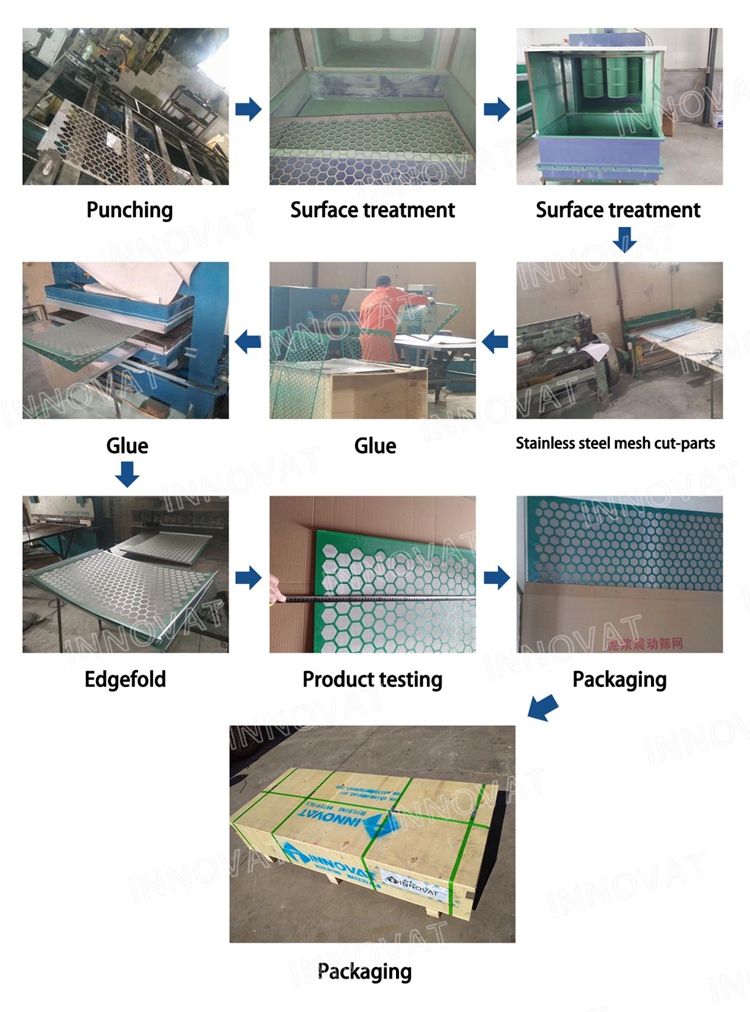

Products Process
Feature
High quality stainless steel
More professional design
Durable raw material
Economical price
Short delivery time
Exact dimension and specs

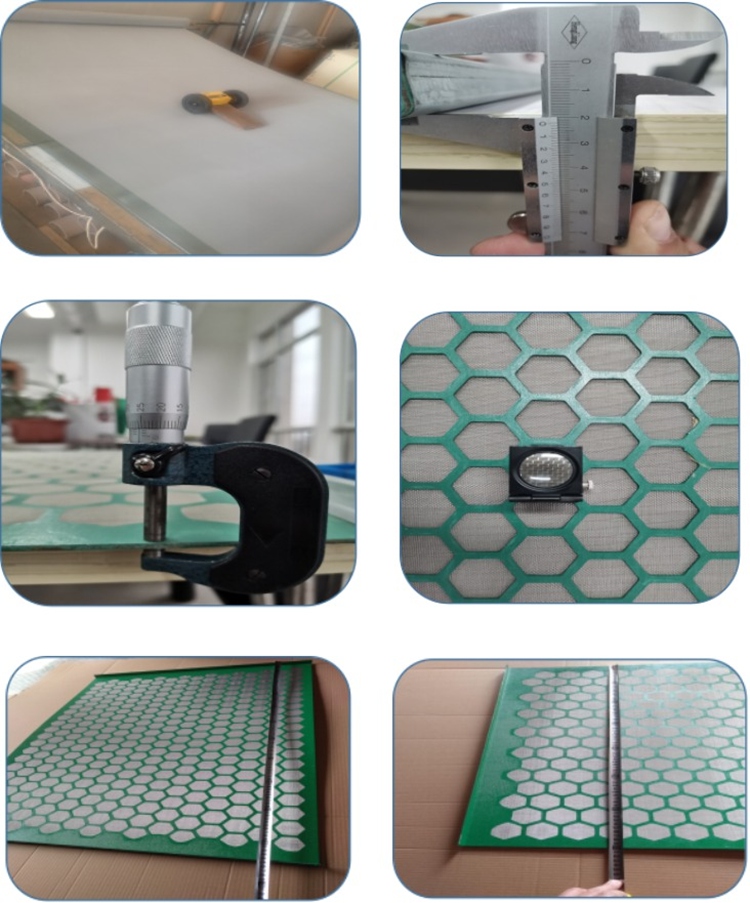

Test
Packing

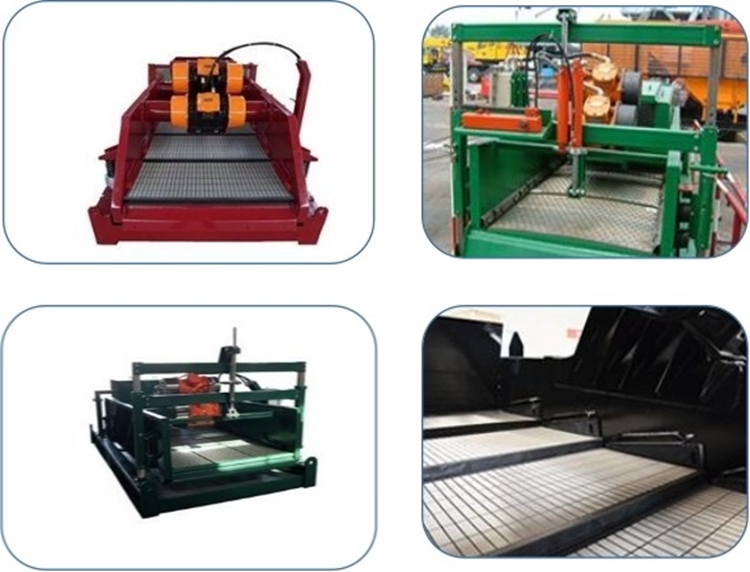

Application
Widely used in petroleum drilling machine，Drilling Filter Screen. Especially, it is the important fitting of drilling slurry purified equipment; for acid, alkali conditions screening and filtering, Oilfield Shale Shaker Screen;used as Mud network for the oil industry, chemical fiber industry for filter screen, electroplate industry to make pickling network,Hookstrip Flat Shaker Screen, Api Shale Shaker Screen etc.
