Wedge wire screen also named Wedge wire filter are produced as flat, arch bent, gutter type, cone and cylindrical segments. They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.
Introduction
Wedge wire screen also named Wedge wire filter are produced as flat, arch bent, gutter type, cone and cylindrical segments. They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.
It is made of 'V' shaped stainless steel wire and stainless steel strip. Smooth surface is for filtering, the gap is strip, belonging to the form of surface filtration. As a multiform of automatic filters ( such as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning filter) are widely used in various industries of fluid filtration.
Stainless steel welding type: mine screen, sieve, sieve basket, vibration screen, slotted sieve, sieve net, cylindrical filter, anisotropic mesh, high strength polyester mesh, griddle net etc. Wedge and wedge wire mesh, stainless steel welded type minemesh material: low carbon steel wire, steel wire, stainless steel wire.
Specification
| Material | SS304, SS 304L, SS 316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Width | Up to 6000mm | ||||||
| Length | Up to 6M | ||||||
| Slot | Min.20 micron, to 3000 micron | ||||||
| Wedge wire | 0.5*1.5 | 0.75*1 | 1*2 | 1.5*2 | 2*3 | 2*4 | 3*5 |
| Support wire | 1.5*2.5 | 1.5*2.5 | 1.5*2.5 | 1.8*2.5 | 2*3 | 2*4 | 3*5 |
| 2*3 | 2*3 | 2*3 | 2*3 | 2*4 | 3*5 | 3*6 | |
| 3*5 | 3*6 | 3*10 | |||||
| 3*6 | 3*10 | 4*7 | |||||
| 3*10 | 4*7 | 5*6 | |||||
| 4*7 | 5*6 | 5*8 | |||||
| End | Flange, metal ring, cross connector, closed, etc | ||||||
| Note | Customized is available | ||||||
| The following dimensions are for reference | ||||||||||
| V-wire | 20 | 30 | 47 | 60 | 68 | 90 | 118 | 130 | 158 | 191 |
| Width | 0.50 | 0.76 | 1.19 | 1.52 | 1.80 | 2.26 | 2.95 | 3.30 | 4.01 | 4.95 |
| Height | 1.01 | 1.27 | 2.23 | 2.54 | 4.50 | 3.50 | 4.70 | 6.35 | 6.07 | 9.22 |
| Support rod | 63 | 025 | 93 | XJR | 156 | SR250 | SR475 |
| Width | 1.52 | 1.00 | 2.26 | 2.26 | 3.84 | 2.50 | 2.50 |
| Height | 2.54 | 1.50 | 3.51 | 4.80 | 5.51 | 5.60 | 6.30 |

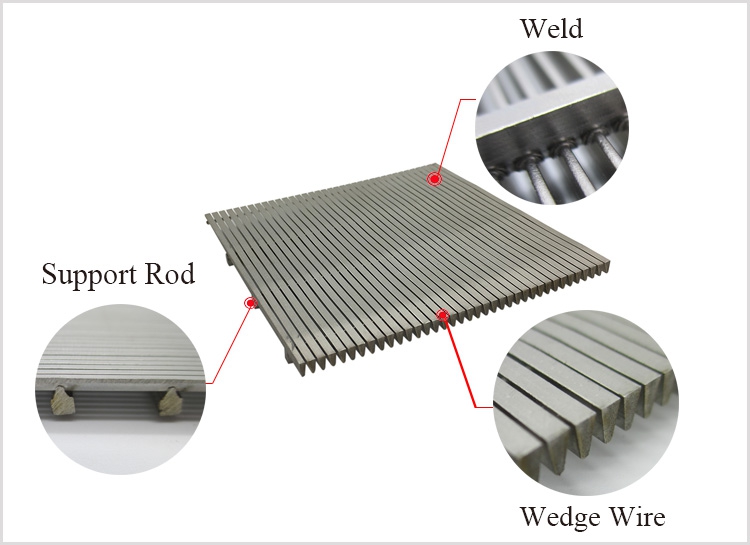

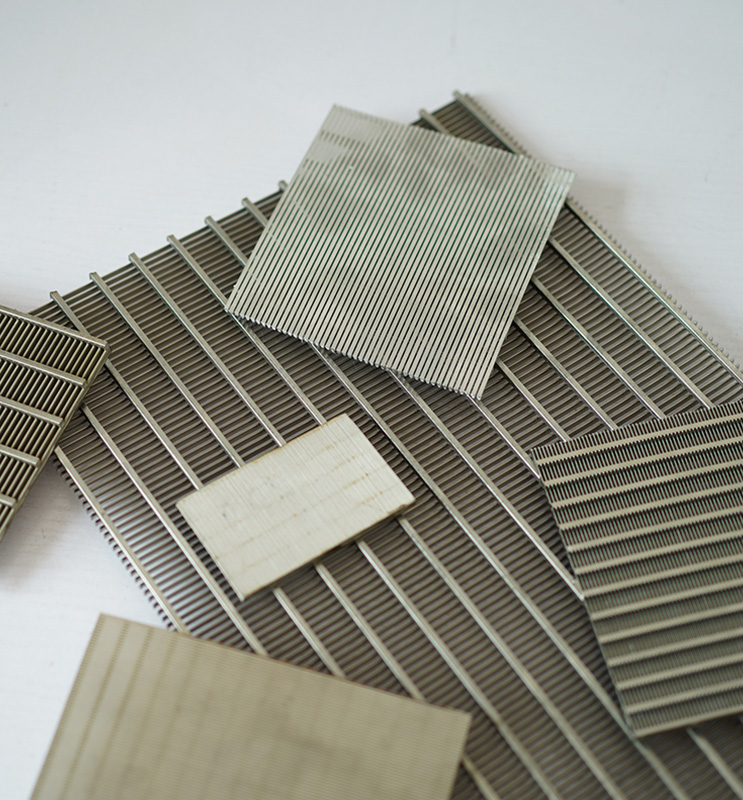

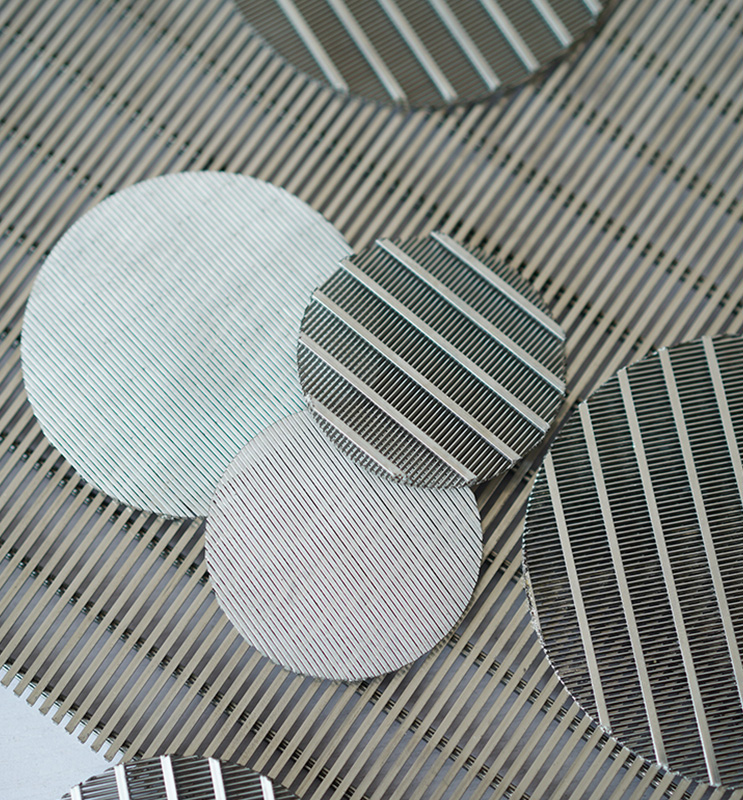

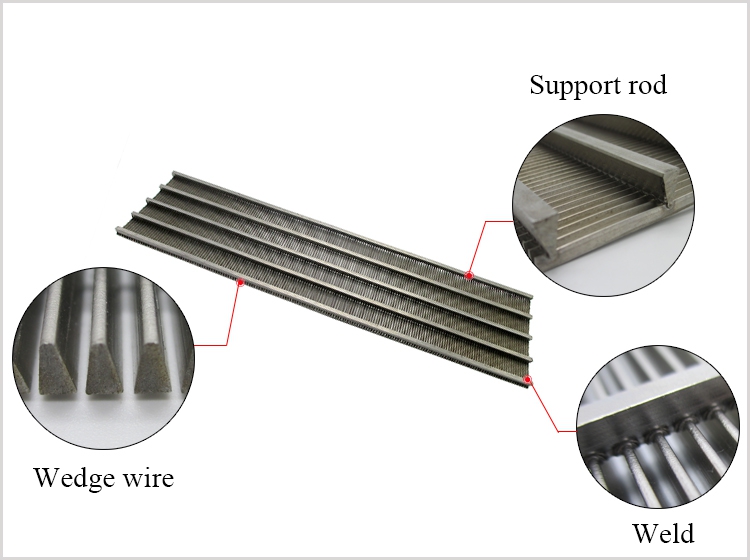

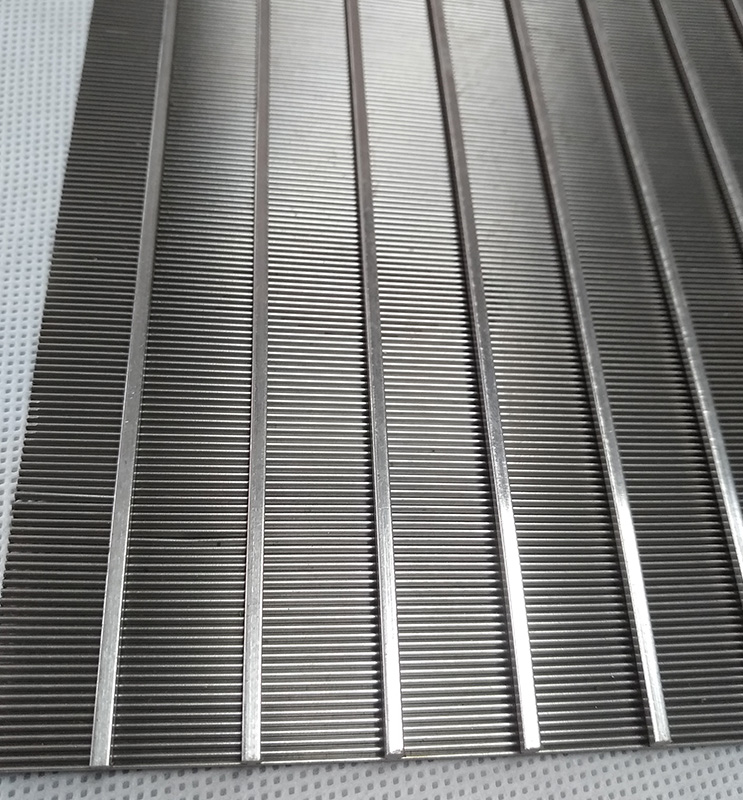

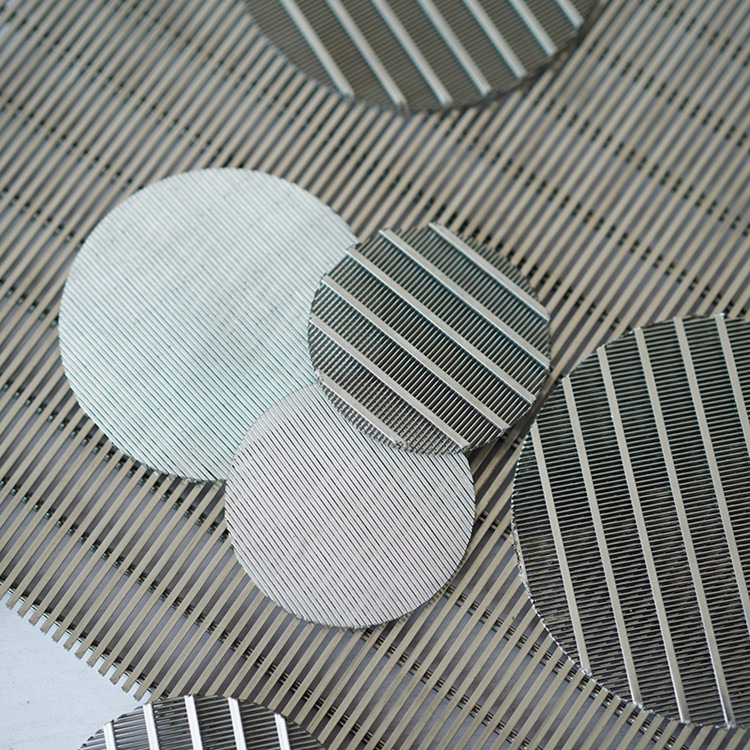

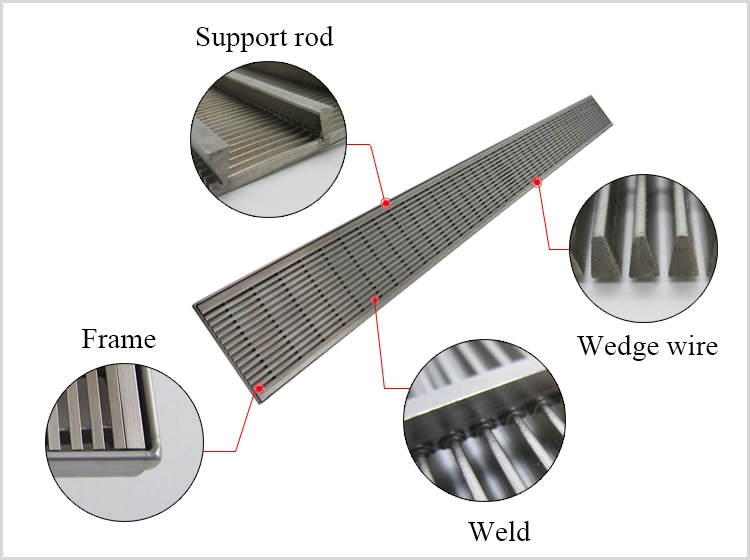

Detail Picture

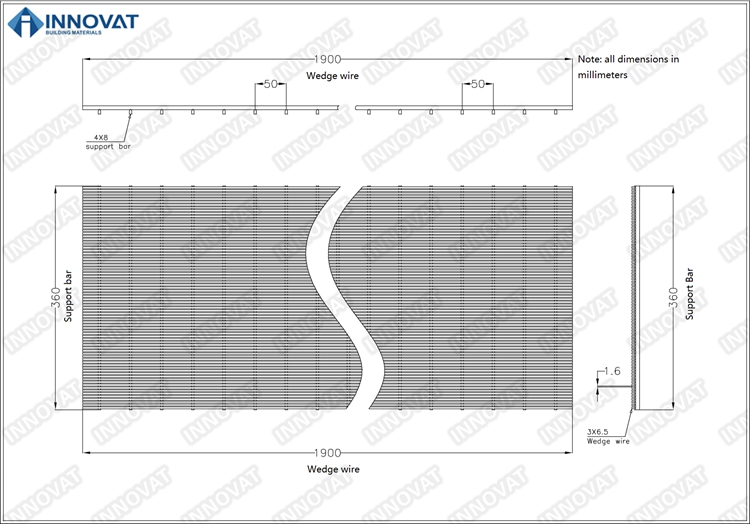

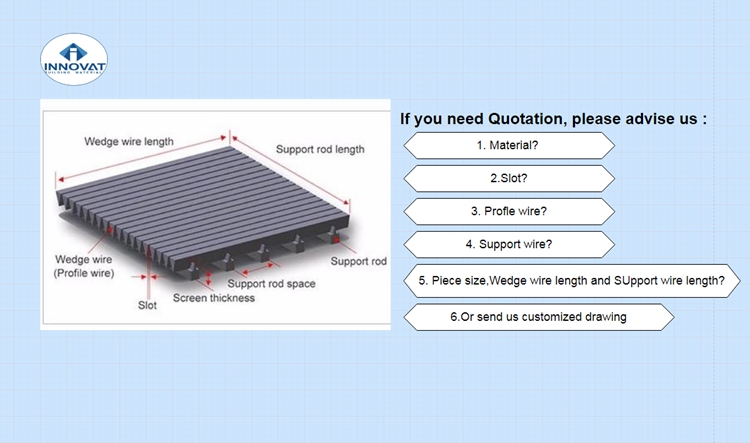

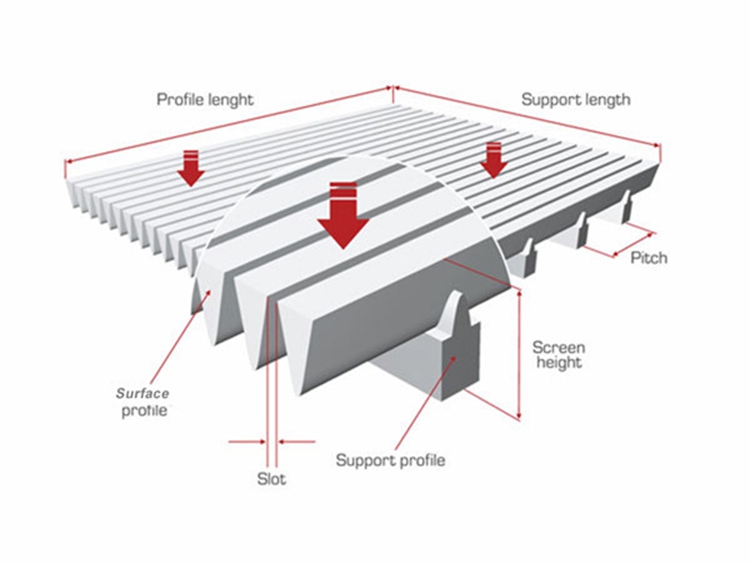

Drawing

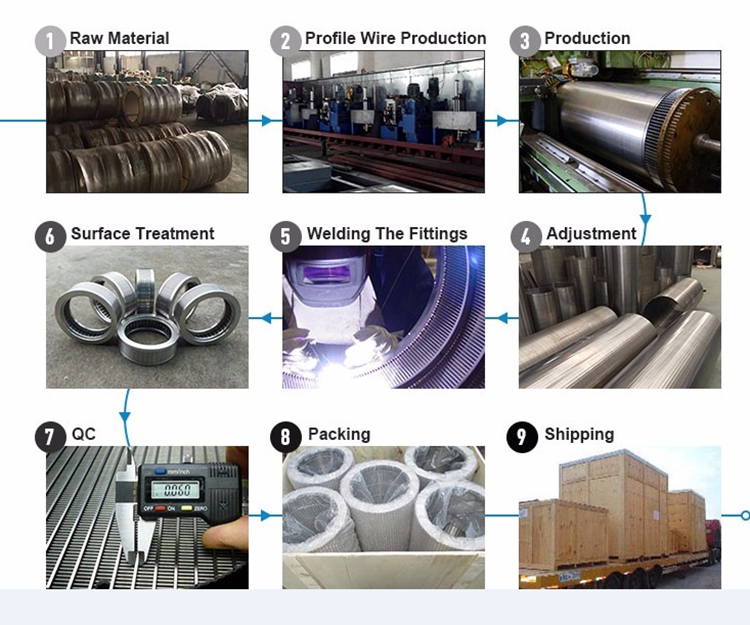

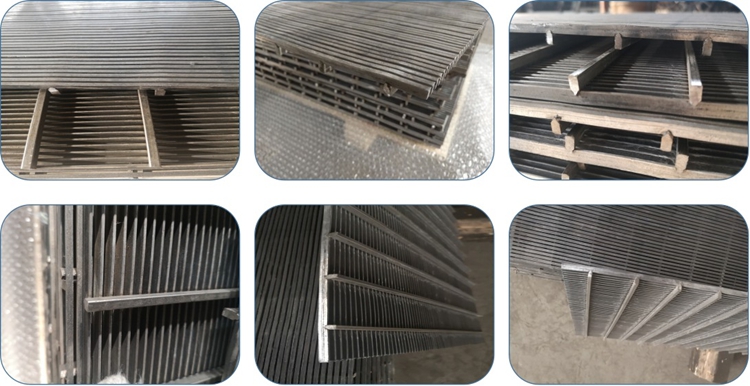

Products Process

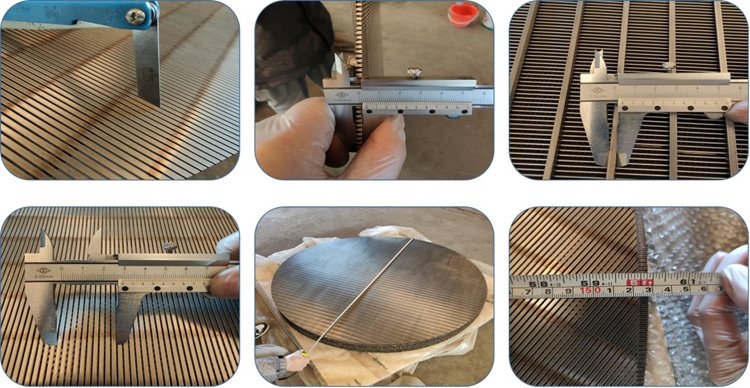

Test
Character
1) long service life
2) high opening rating
3) Uniform screen seam, stable welding quality
4) good strength, stiffness and load capacity
5) Strong to be acidproof , alkali-resisting , bear high temperature , pulling force and wearability

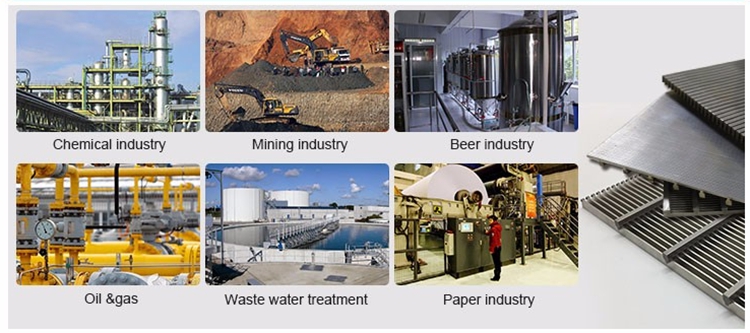

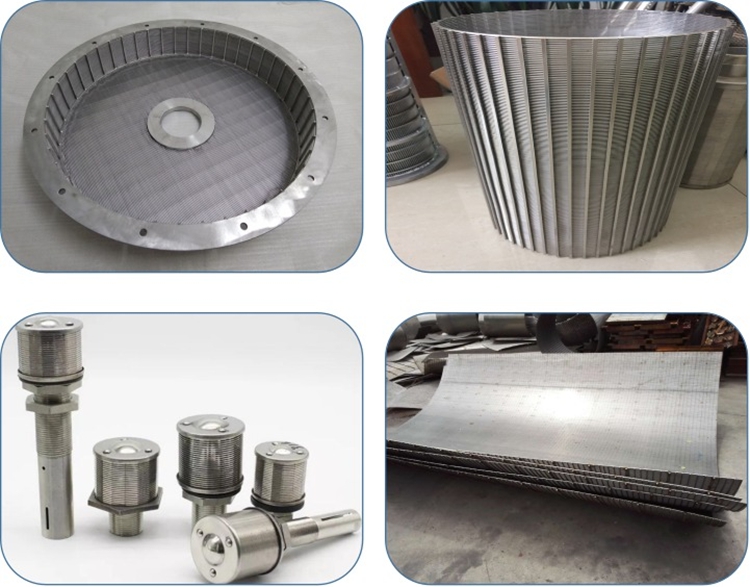

Application
