Temporary Fence

Product Introduction

Temporary fencing is made of high quality carbon steel. With PVC coated, powder coated, galvanized or painted surface, it has a good aesthetic effect and long service life. It can be divided into three types:

Canada portable fence, Australia portable fence and Crowd Control Barrier.

Canada portable fence is welded temporary fencing with square frame; Australia portable fence is another welded temporary fencing with round frame;

Crowd control barrier has only round frame pipes without welded wire mesh.

Because of the high strength and flexibility, temporary fencing is widely used for construction fencing,factory fencing, residence fencing and so on.

Temporary Fence Types

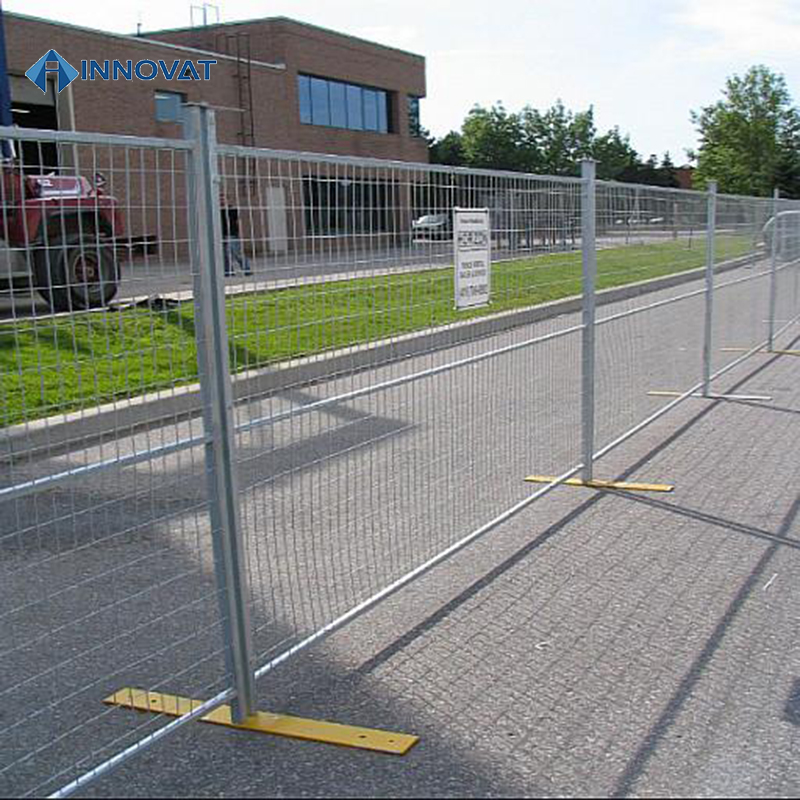

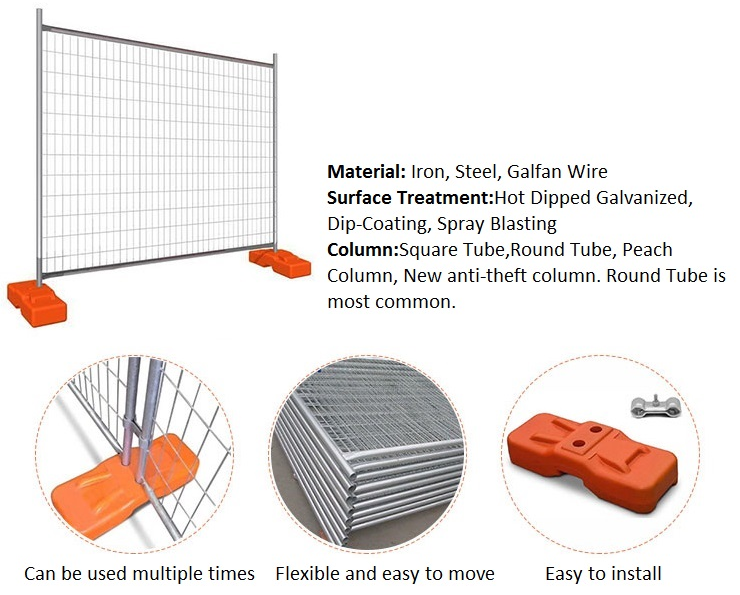

Canada Temporary Fence:

Canada portable fence with square frame and vertical or horizontal square pipe is a kind of welded

portable fence. Connected by top coupler, metal feet and other accessories, it becomes a whole fence

system for temporary fencing. Because of the various colors, high strength and durability, it has a long

service life and it's safe for residences fencing and factories fencing.

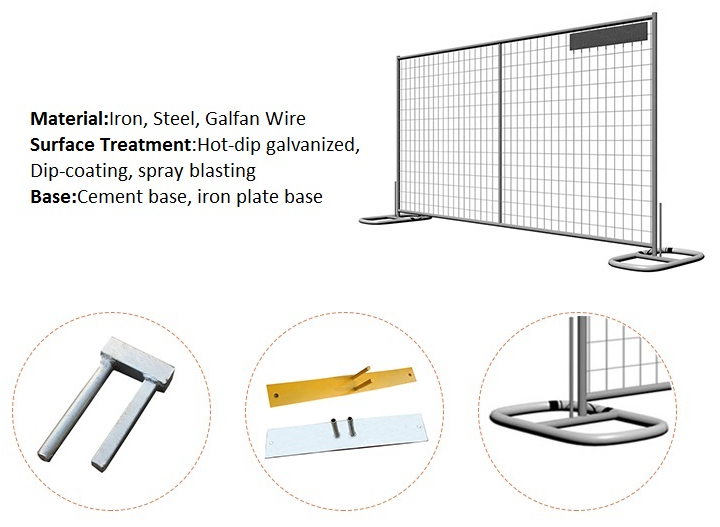

Specifications:

·Material: Iron Steel, Galfan Wire

·Surface treatment: Hot-dip galvanized, Dip-coating, spray blasting

·Common color: yellow, orange, green, blue, red.

·Middle frame: vertical or horizontal square pipe.

·Frame pipe shape: square.

·Fittings:

·Top coupler

·Coupler with two round tubular legs.

·Coupler with round and square tubular legs.

·Fencing feet

·Common size: 860 × 80 × 6 or 7 mm (thickness).

·Standard fence feet.

·Anchor base feet.

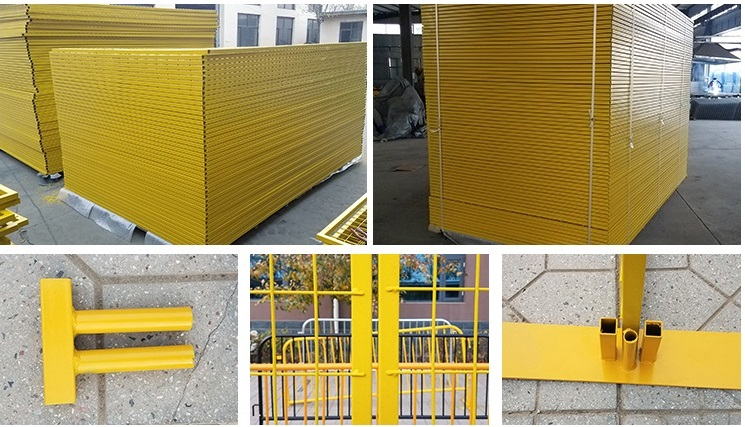

Galvanized Canada Portable fence top coupler with round and square tubular legs.	Yellow Canada portable fence top coupler with round and square tubular legs.	Galvanized Canada portable fence feet.	Yellow Canada portable fence feet.

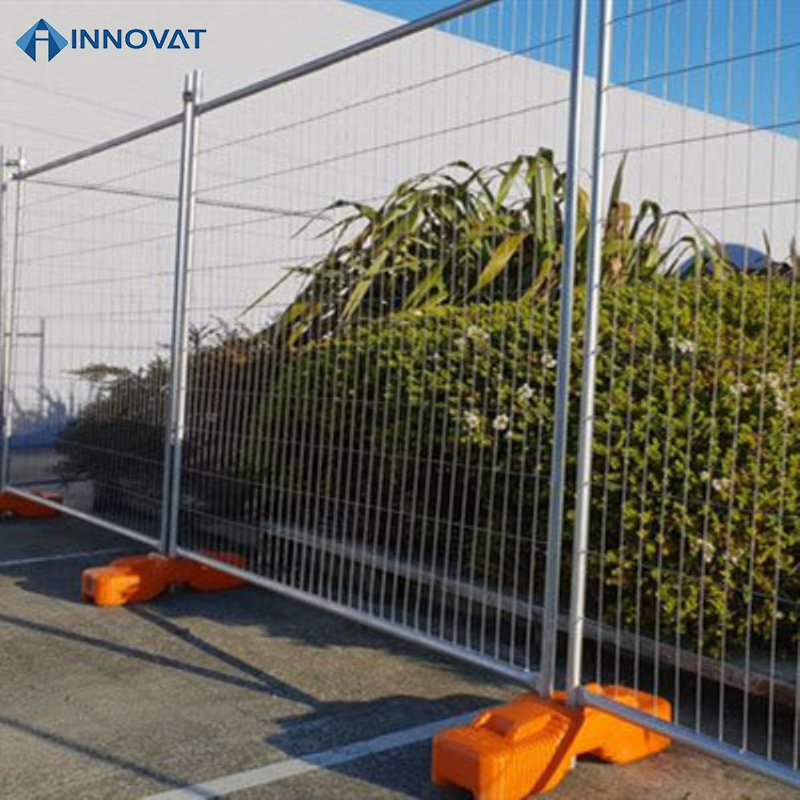

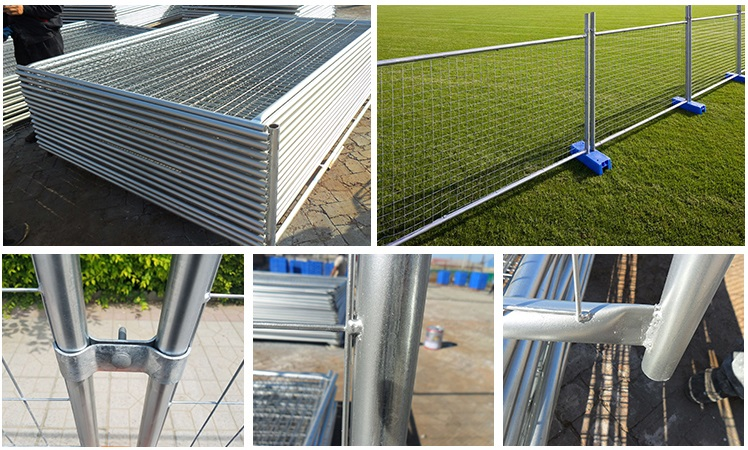

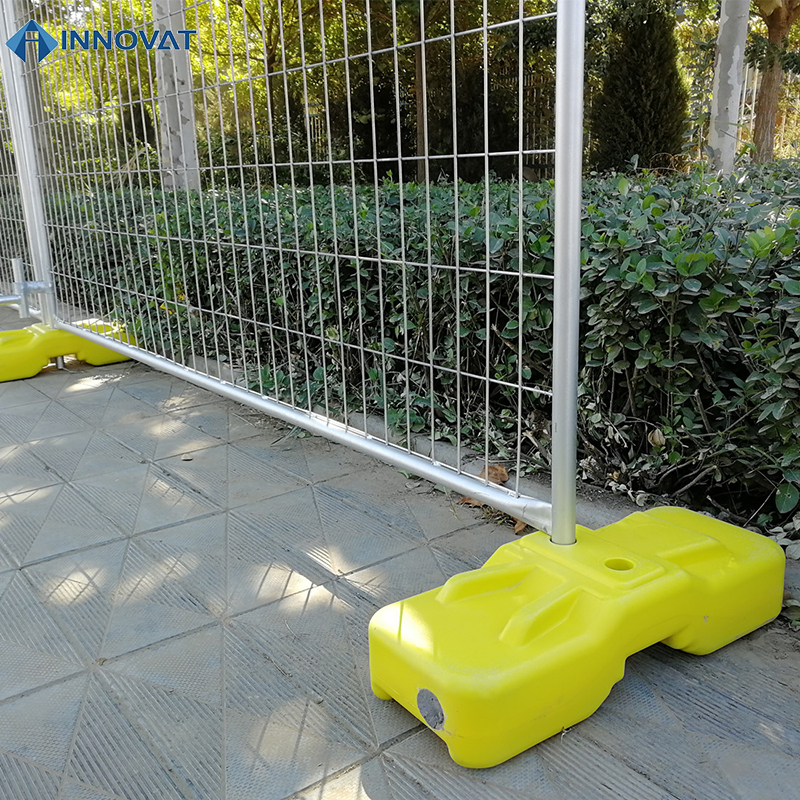

Australia Temporary Fence

Australia portable fence with round fence frame made of carbon steel is a kind of welded portable fence. Combined with feet, clamps, stays, shade cloth, it is strong enough for security barrier.Because of the easy installation, flexible structure

and long service life, it's necessary and desirable for construction site fencing, factory fencing,residence fencing, sport field fencing, road fencing, animal fencing and so on.

Specifications:

·Material: carbon steel wire.

·Surface treatment: hot dipped galvanized.

·Wire diameter: 4 mm.

·Zinc thickness: 42 microns.

·Fittings: clamps, feet, stays, shade cloth, bolts and nuts, hand rails, dog bars.

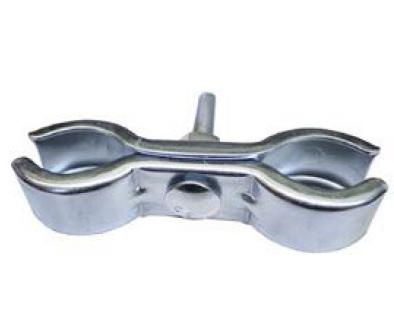

·Clamps

Clamps for the low mould feet

Length: 140 mm.

Width: 40 mm.

Thickness: 4 mm.

·Clamps for the injection mould feet

Length: 100 mm.

Width: 40 mm.

Thickness: 4 mm.

·Bolts and nuts: 10 mm (thickness) × 50 mm (length).

·Feet

·Injection mould feet: 560 × 245 ×130 mm.

·Blow mould feet: 600 × 220 ×150 mm.

·Recycled rubber feet: 767 × 192 × 126 mm.

Australia portable fence clamp          Australia portable fence feet          Australia portable fence with handrail

          Fence with bracing                             Fence with dog bar                              Fence with shade cloth

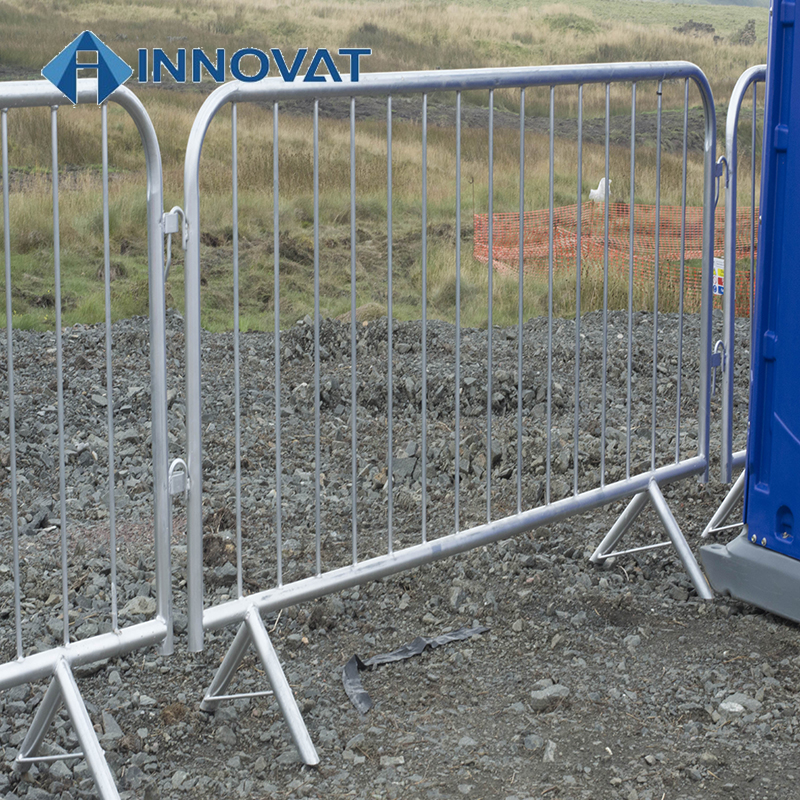

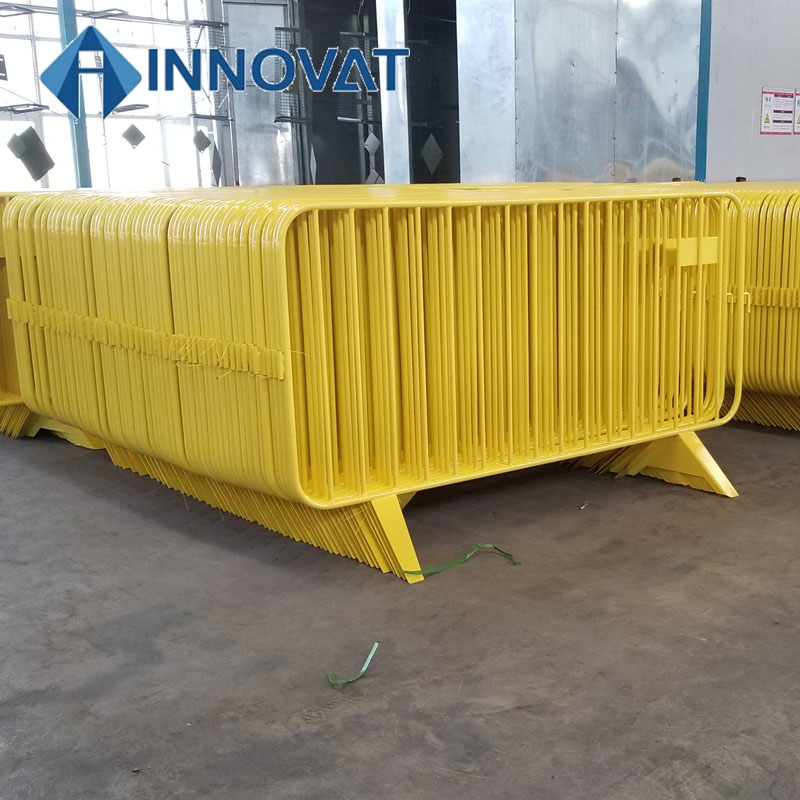

Crowd control barrier

Crowd control barrier, also known as pedestrian barrier is made of high quality carbon steel. The upright

frames are fully inserted into the outer frame before welding, and then they will be hot dipped

galvanized, PVC coated or powder coated. With high strength and durability, it's widely used by traffic

police and event organizers for road fencing, restricted area fencing, exhibition hall fencing and so on.

Specifications:

·Material: gauge 16 tubular steel

·Surface treatment: hot dipped galvanized PVC coated or powder coated

·Common color: black, orange, yellow, white, other colors available

·Welded method: 360 degrees hand welded

·Technology standard: hot dipped galvanized after welding

·Zinc standard: 42 microns, 300 g/m2

·Maximum zinc coated weight: 400 g/m2

·Fittings

·Crowd barrier feet system

             bridge feet                       flat feet                         fixed feet

·Crowd control barrier interlock system: hook (minimum diameter: 5/8")

·Barrier jacket

·Reflective strips

·Warning signs

Temporary Fence Accessories

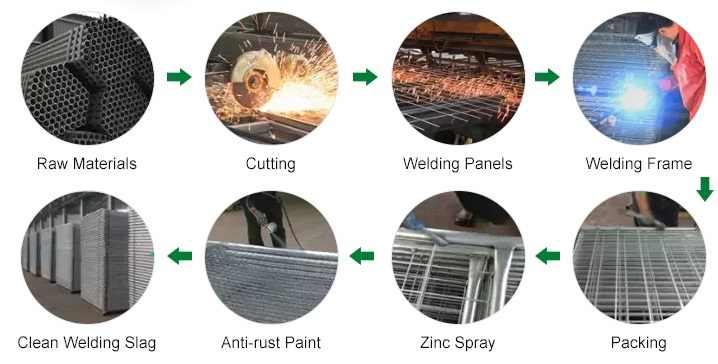

Temporary Fence Production Process
