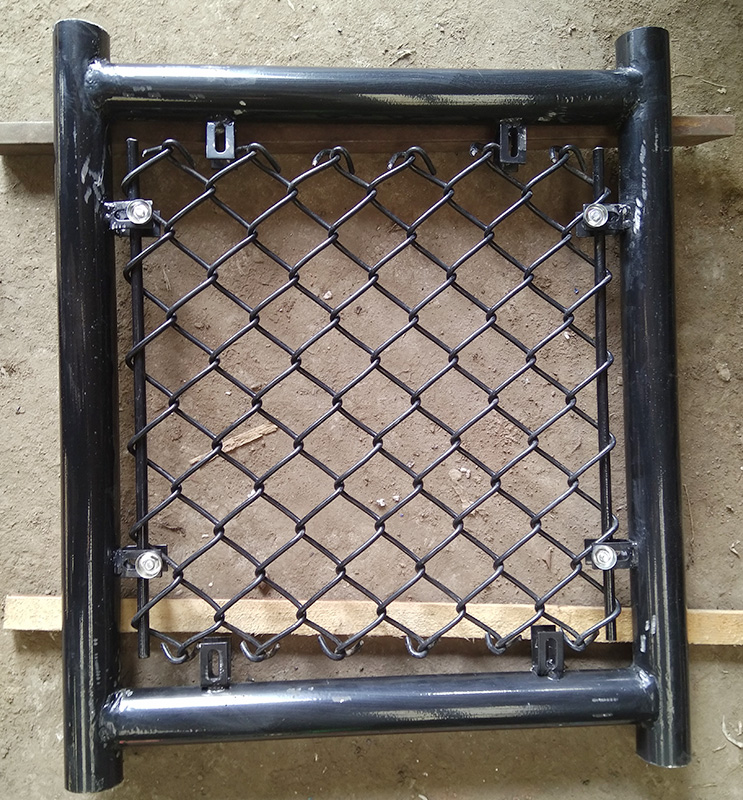

PVC coated chain link fence also called vinyl coated or plastic coated chain link mesh is woven accurately with PVC wire in green or black color. Add color and style to your fence with color coordinated, vinyl coated chain wire fence. The heavy fence coated with fused and bonded vinyl is guaranteed for years of trouble-free use.
PVC coated chain link fence also called vinyl coated or plastic coated chain link mesh is woven accurately with PVC wire in green or black color. Add color and style to your fence with color coordinated, vinyl coated chain wire fence. The heavy fence coated with fused and bonded vinyl is guaranteed for years of trouble-free use.
The grid shape can be square (when the angle is 90 degrees) and diamond (when the angle is 60 degrees).
Make the hooked wire mesh rust-free and corrosion-resistant after use. Chain link can be coated with PVC, galvanized or galvanized and PVC coating. The more zinc, the longer the chain link will not rust. However, ocean air, acid rain, ammonia, which turns into nitric acid, can easily destroy the zinc layer. In order to be used in such a harsh environment, the wire must be coated with PVC. The zinc and PVC wire is actually galvanized and then vinyl is placed and sealed around it. It has the best durability and corrosion resistance; and it is not afraid of oil or water.
| Galvanized Chain Link Fence ( galvanized wire) | ||||
| Wire Diameter (mm) | Mesh Size (mm) | Roll Length (m) | Standard Heigh t(mm) | Standard Post Heights(mm) |
| 5x5 | 10 | 500 | 1000 | |
| 1000 | 1500 | |||
| 1.2 | 10×10 | 10 | 1250 | 2000 |
| 20×20 | 1500 | 2000 | ||
| 1.4 | 20×20 | 10 | 2000 | 2500 |
| 1.8 | 30×30 | 10 | 2500 | 3000 |
| 2.5 | 40x40 | 10 | 3000 | 3500 |
| 2.8 | 50x50 | 10 | 4000 | 4500 |
| 3 | 50×50 | 10 | 5000 | 5500 |
| 4 | 60×60 | 10 | ||
| PVC coated Galvanized Chain Link Fence (PVC coated wire) | ||||
| Wire Diameter (mm) | Mesh Size (mm) | Roll Length (m) | Standard Height (mm) | Standard Post Heights (mm) |
| 1.8 | 20×20 | 10 | 5oo | 1000 |
| 1000 | 1500 | |||
| 1250 | 2000 | |||
| 1500 | 2000 | |||
| 1.8 | 30x30 | 10 | 2000 | 2500 |
| 2.5 | 40x40 | 10 | 2500 | 3000 |
| 2.8 | 50x50 | 10 | 3000 | 3500 |
| 3 | 60×60 | 10 | 4000 | 4500 |
| 4.5 | 65×65 | 10 | 5000 | 5500 |

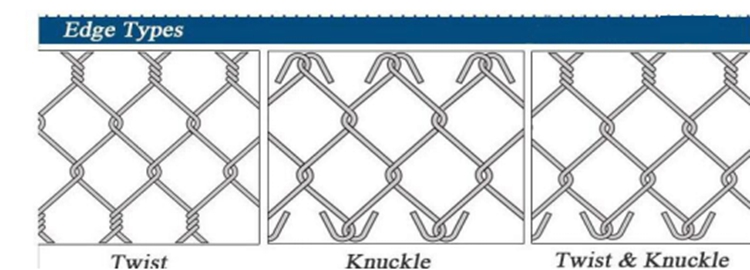

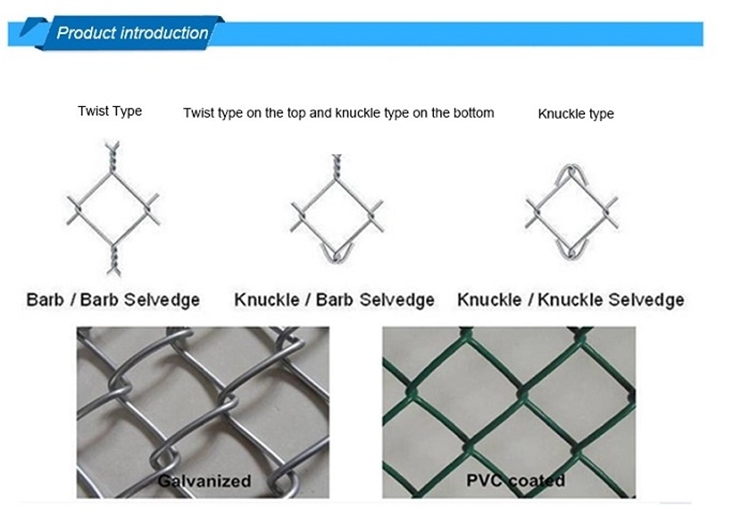

End Treatment
(1) Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2) Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)
(3) Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)

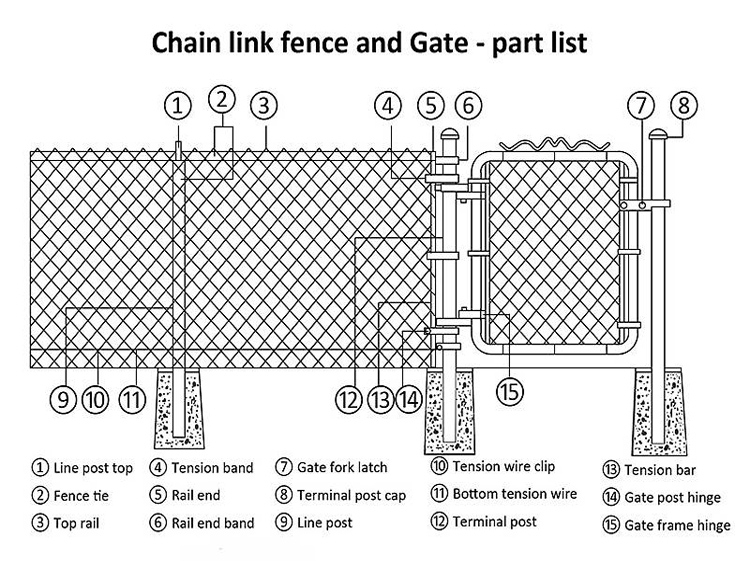

Chain Link Fence and Gate-part list

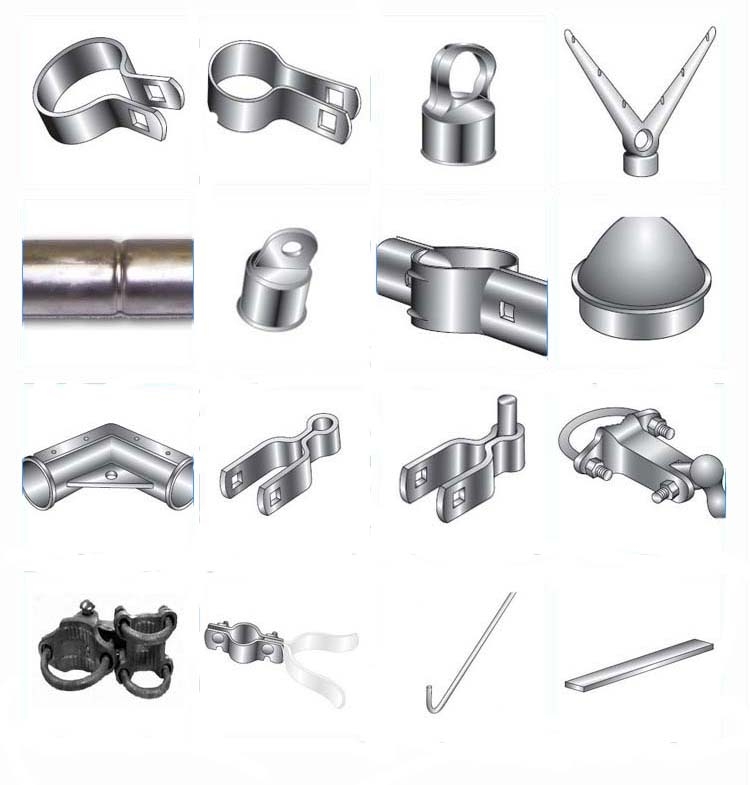

Fittings of Chain Link Fence
Face Treatment

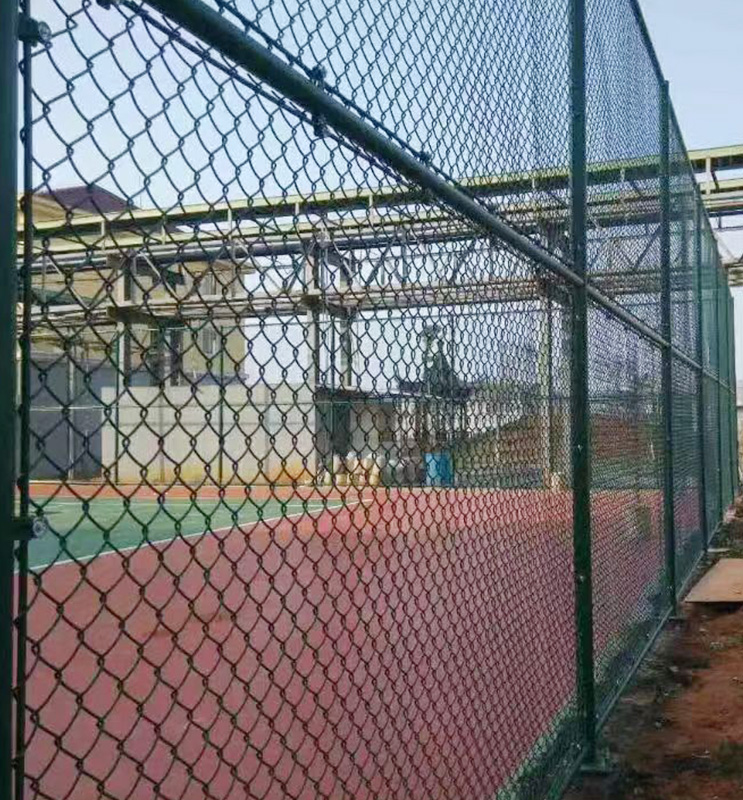

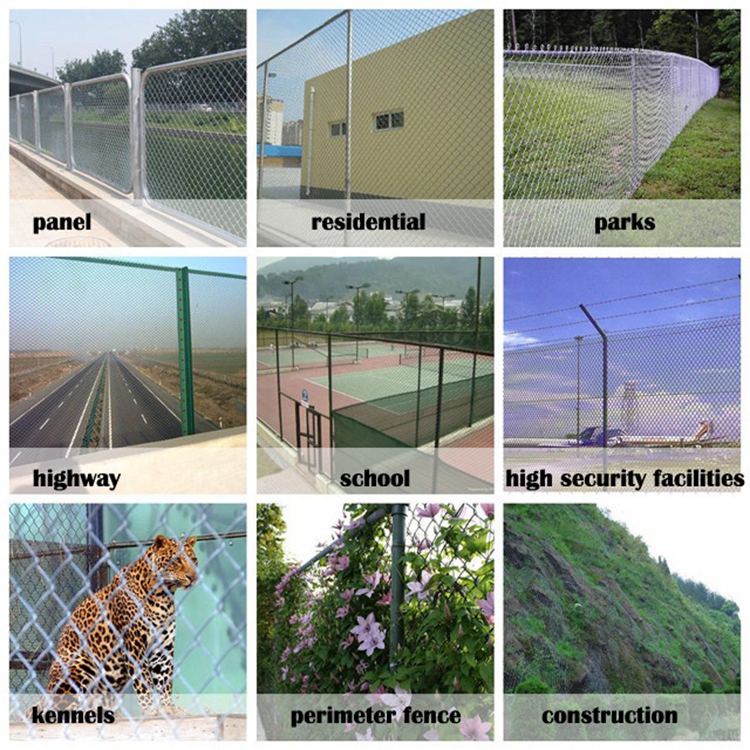

Playground(Tennis Ground, Football Ground, Basketball Ground)
Building Site
Courtyard, Park, Lawn, Forest Protecting

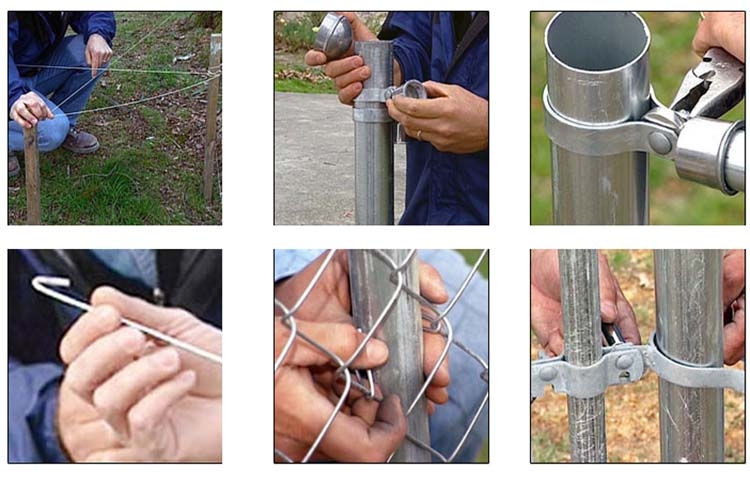

Install of Chain Link Fence

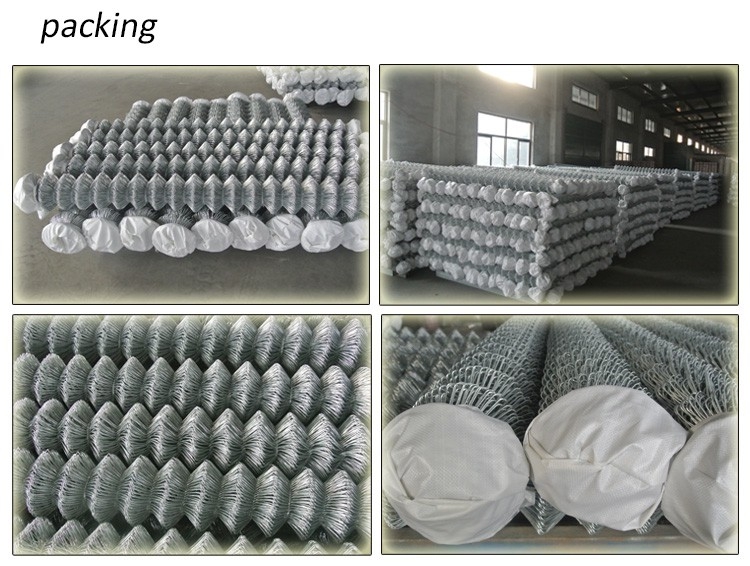

Packing
