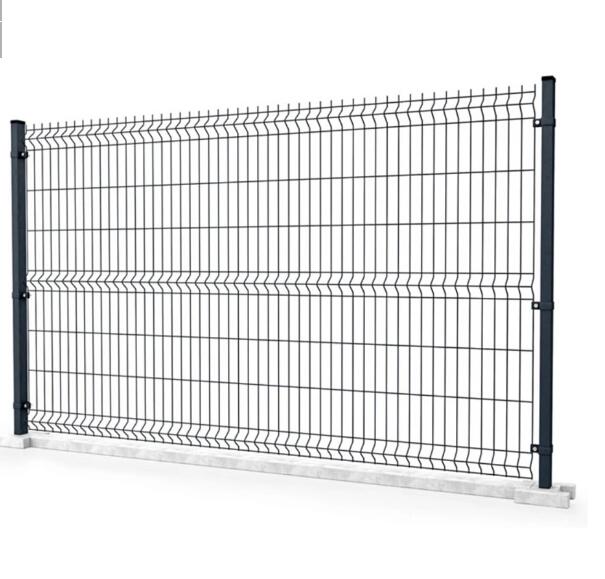

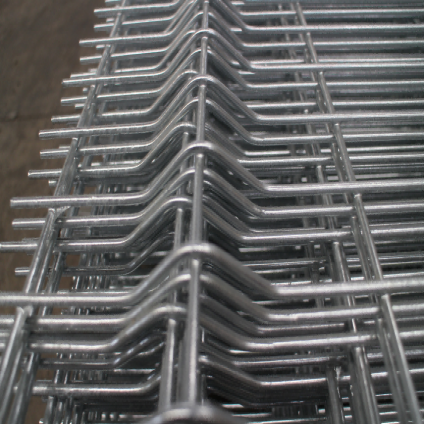

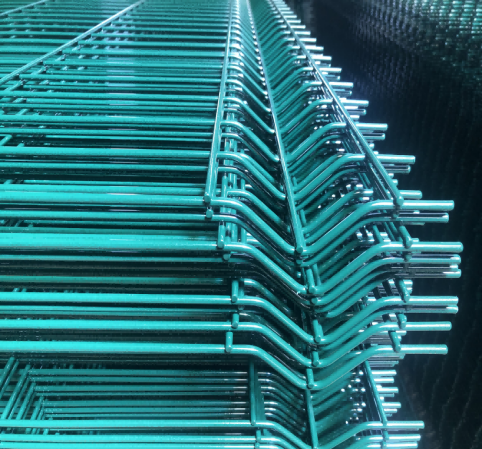

Curvy welded mesh fence, also called 3D security fenc-ing, is made of carbon steel wires and steel tubes. Hot dipped galvanized or colorful powder coating supplies bright and anti-corrosive surface for durable life. Different curves on fence panel increase security grade.
It is widely used in commercial and residential applications for different grade security protection applications.
Associated posts and accessories are supplied for easy and fast installation. The posts will be buried into earths or bolted onto concrete or hard ground.
Product Introduction
Curvy welded mesh fence, also called 3D security fenc-ing, is made of carbon steel wires and steel tubes. Hot dipped galvanized or colorful powder coating supplies bright and anti-corrosive surface for durable life. Different curves on fence panel increase security grade.
It is widely used in commercial and residential applications for different grade security protection applications.
Associated posts and accessories are supplied for easy and fast installation. The posts will be buried into earths or bolted onto concrete or hard ground.
Product Specification
| DIMENSIONS | |||||||
| fence height | postheight | fence width | bending | wire diameter | mesh | surfacetreatment | color |
| 630 mm | 1100 mm | 2.0mor2.5mor2.9m | 2 | 3.0mmor3.5mmor4.0mmor4.50mmor5.00mm | 200X55mm200x50mm150x75mm150x50mm100x50mmetc | Galvanized +powder coatedGalvanized +PVC coatedHot dipped Galvanized | RAL6005 Green,RAL7016 Gray,RAL9005 Black,RAL8014 Brown,RAL9010 White,and other RAL colors |
| 830 mm | 1300 mm | 2 | |||||
| 1030 mm | 1500 mm | 2 | |||||
| 1230 mm | 1800 mm | 2 | |||||
| 1530 mm | 2000 mm | 3 | |||||
| 1830 mm | 2300 mm | 4 | |||||
| 2030 mm | 2500 mm | 4 | |||||
| 2430 mm | 3000 mm | 4 | |||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you. | |||||||
| Post Style | Post Size |
| Square/Rectangular Post | 40x60mm |
| 60x60mm | |
| 60x80mm | |
| Peach Post | 50x70mm |
| 70x100mm | |
| Round Post | 42x1.5mm |
| 48x1.5mm | |
| 60x1.5mm |
Product Surface Treatment
Surface Treatment :
1. Powder coated galvanized;
2. PVC coated;
3. Hot dipped Galvanized;

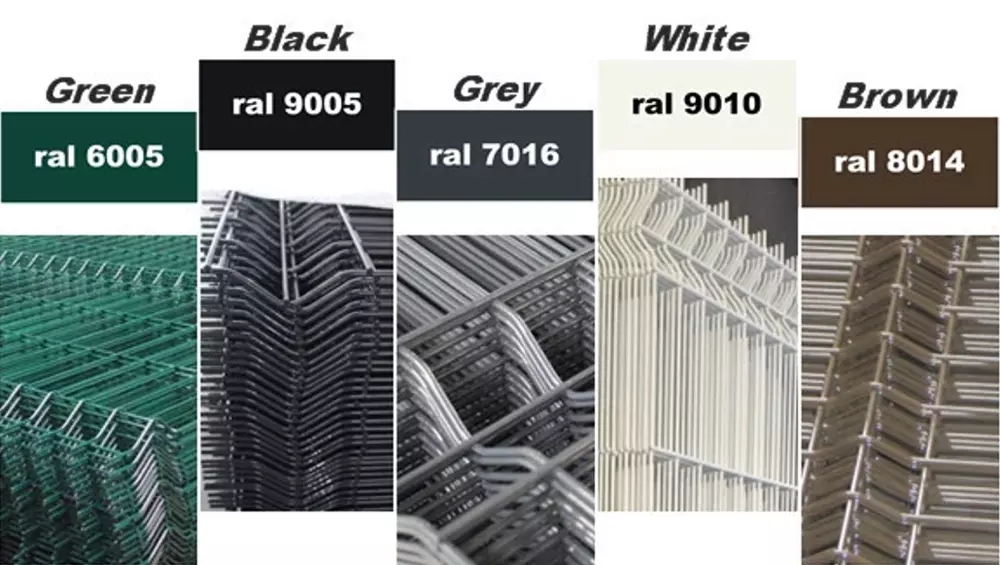

Colour Avaiable
RAL 6005 Dark Green, RAL 9005 Black, RAL 7016 Grey, RAL 8017 Chocolate color.
Other RAL colors can also be customized.

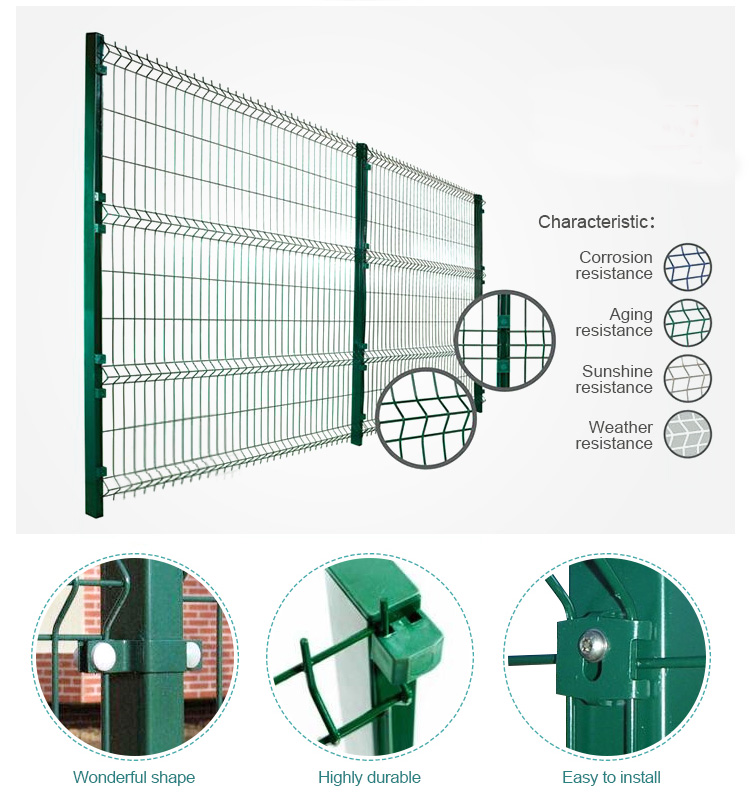

Product Features

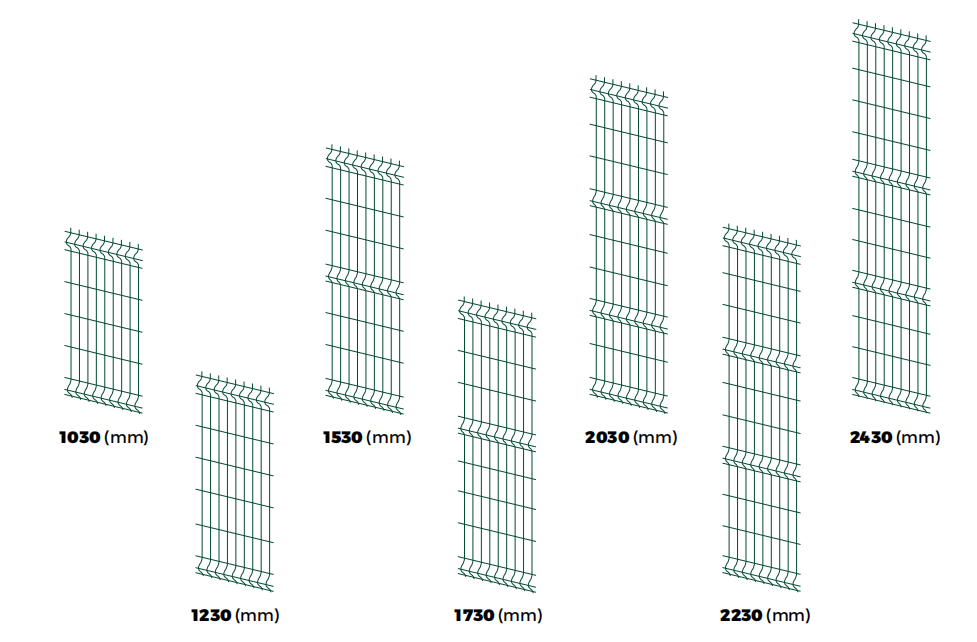

Curve Quantities
1. Height: 630 mm, 830 mm, 1030 mm,1230 mm (2 curves).
2. Height: 1530 mm, 1730 mm (3 curves).
3. Height: 2030 mm, 2230 mm, 2430 mm (4 curves).

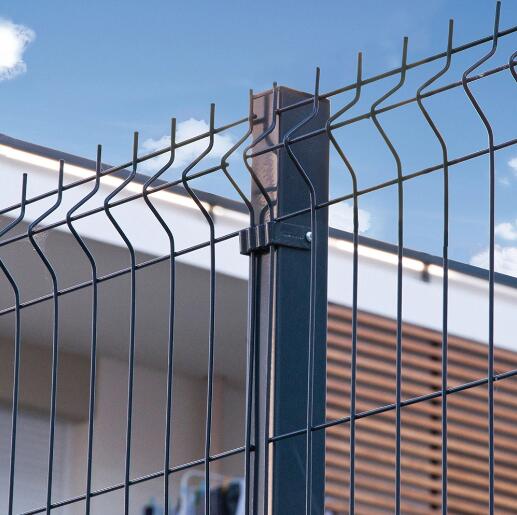

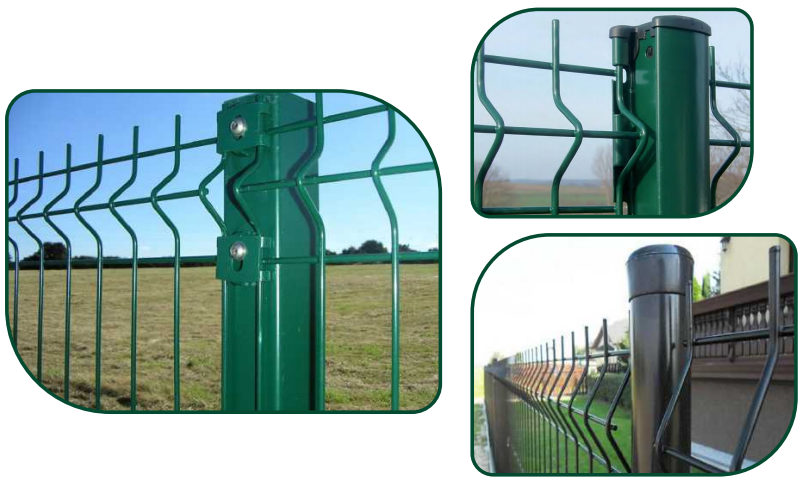

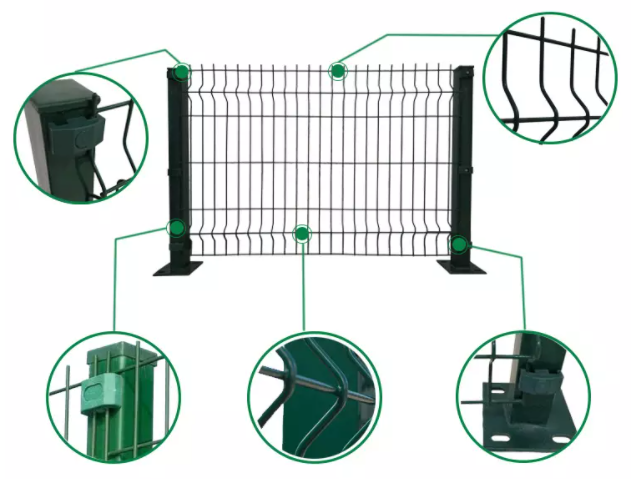

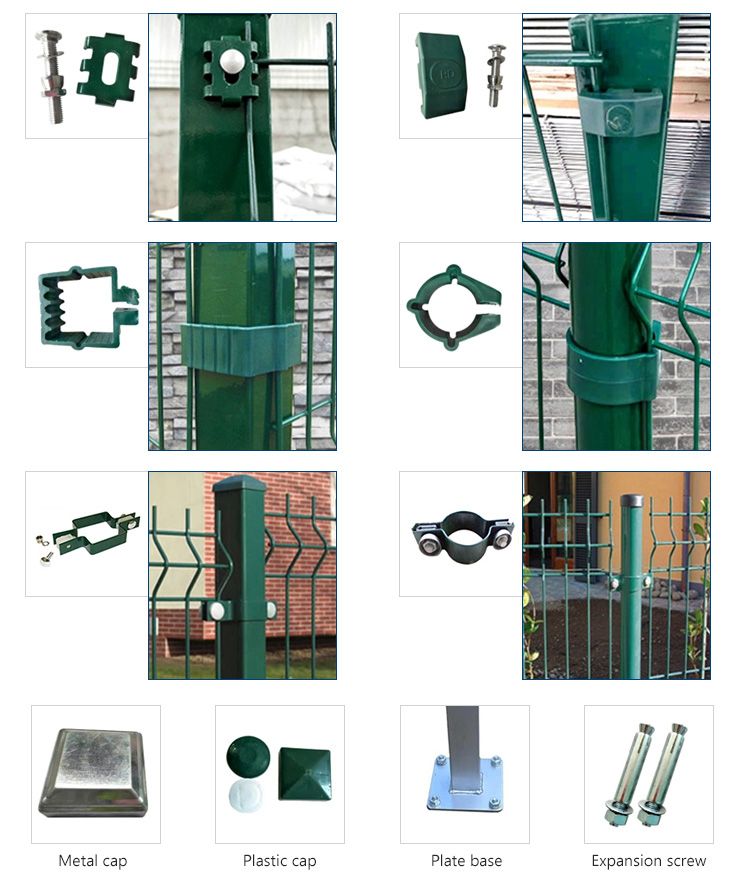

Product Accessories

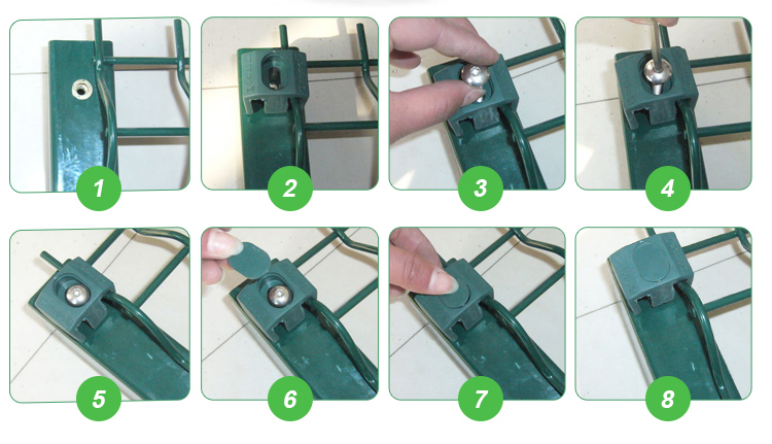

Installation Steps

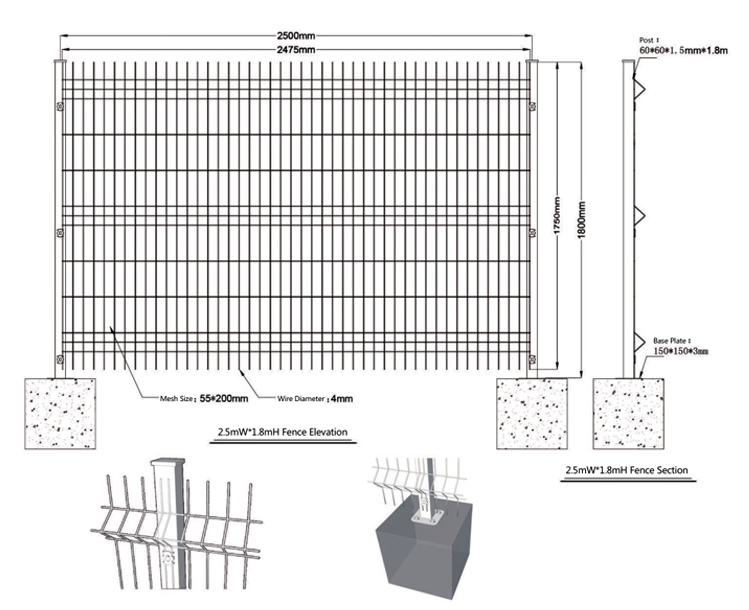

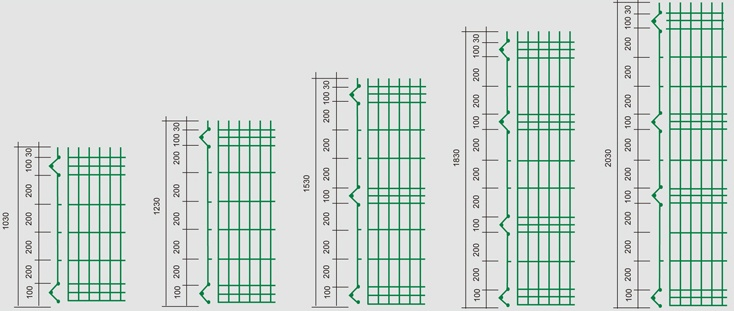

Product Drawings

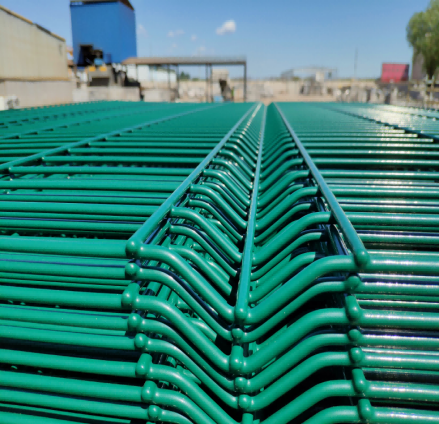

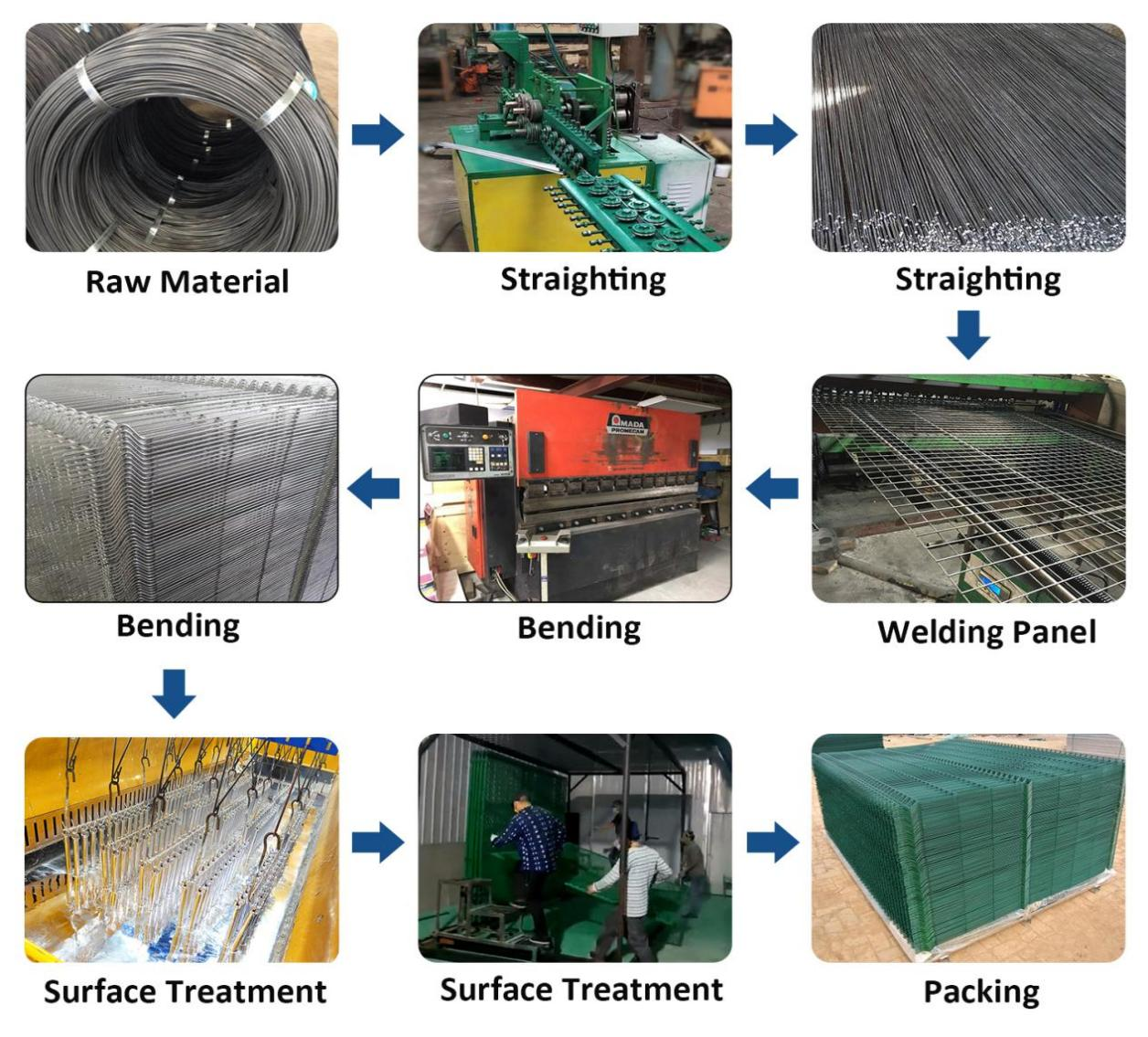

Product Process

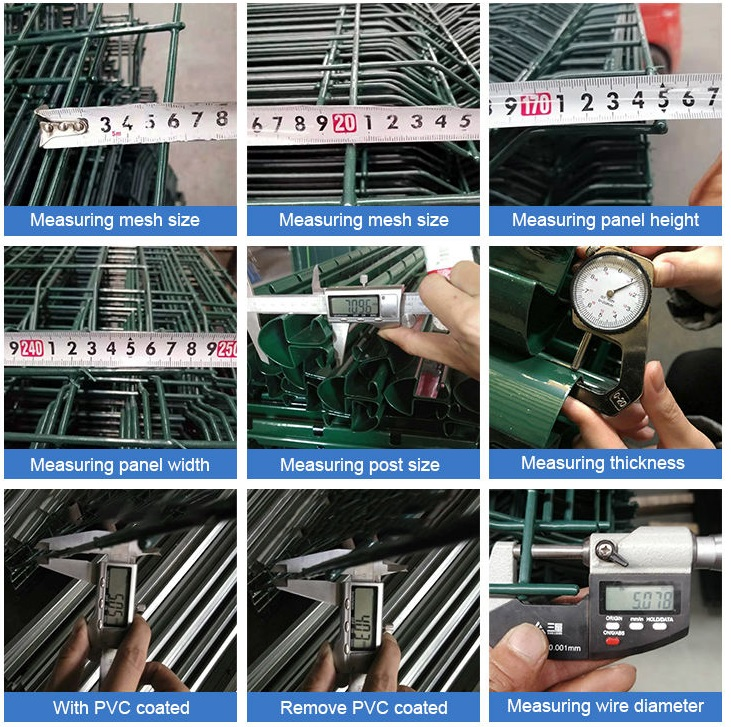

Product Inspection

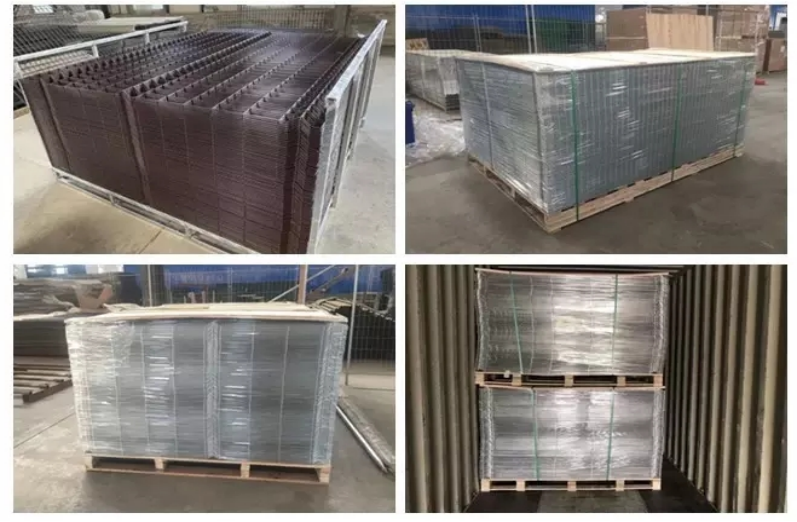

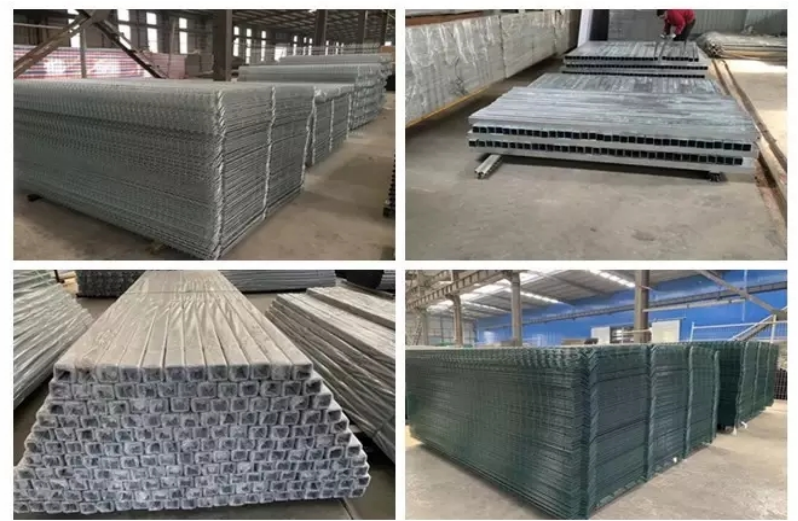

Package & Shipment
Fence Panels:
l it has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
l it has 4 metal corners to keep the pallet more strong.
l it has metal plate under the plastic bandage to reduce the apressure of fence panels.
l it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
Fence Post:
Each fence post is covered by cap (save your installing time and cost of labor) then with plastic film, then metal pallet.
Accessories:
Clips and screws are packed by sets, plastic film + carton box.

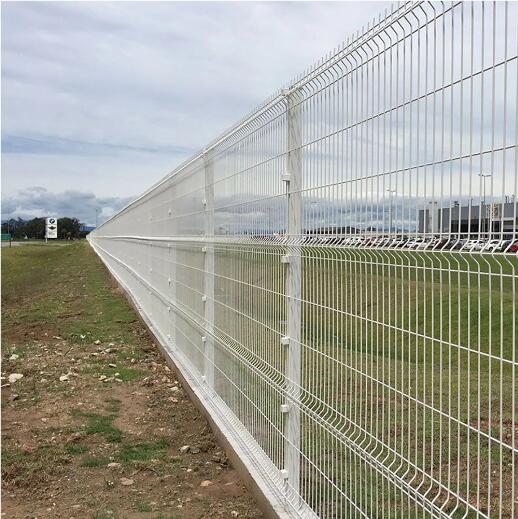

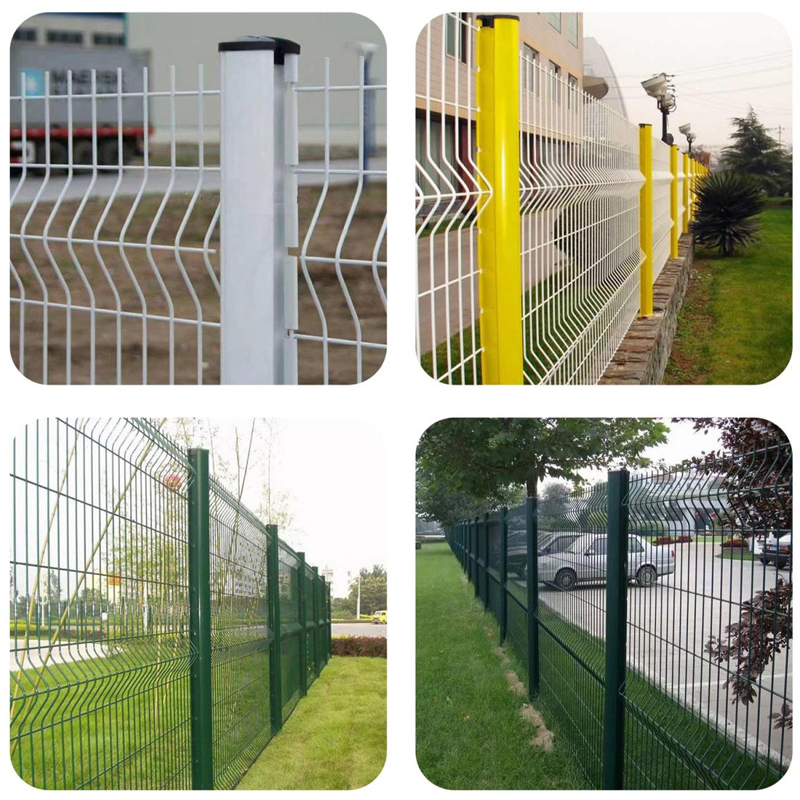

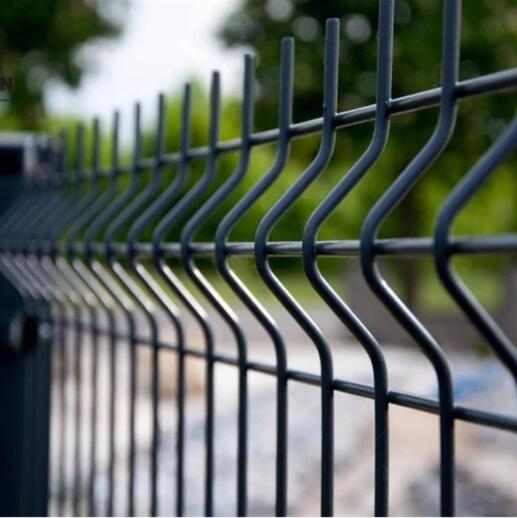

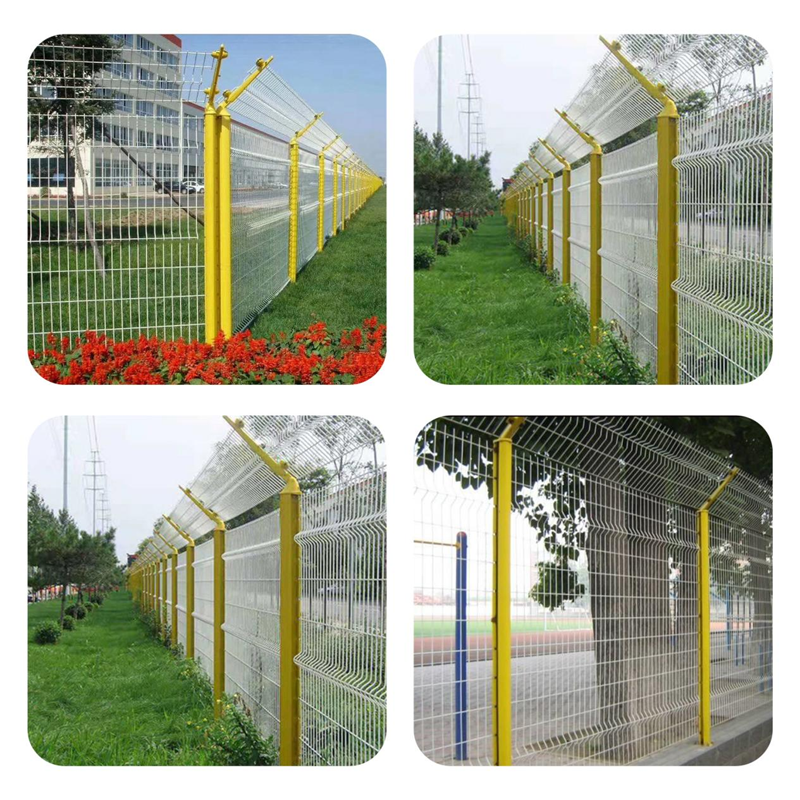

Product Application
