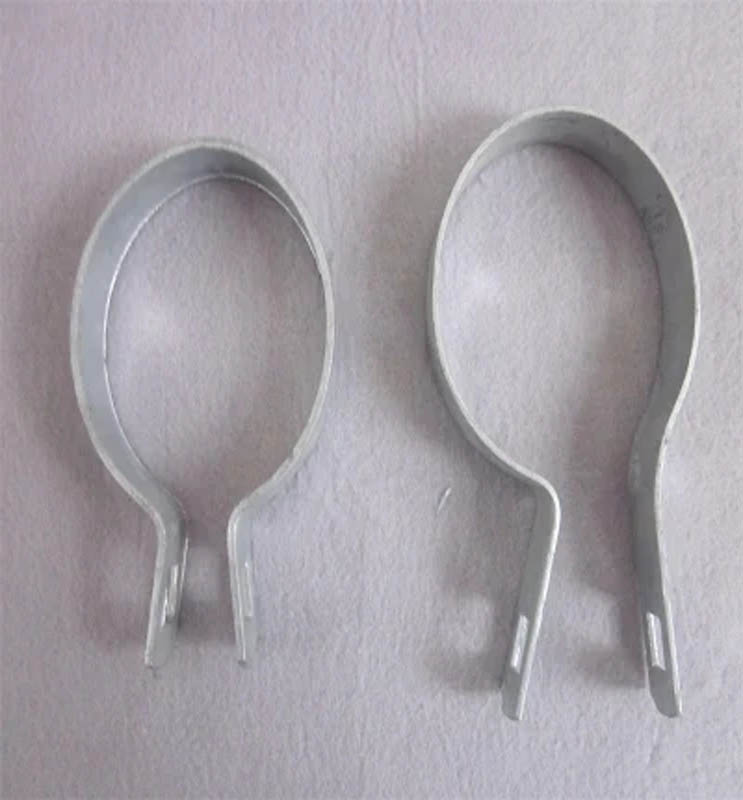

These Tension Bands are Manufactured from Galvanized Steel to Prevent Rust.

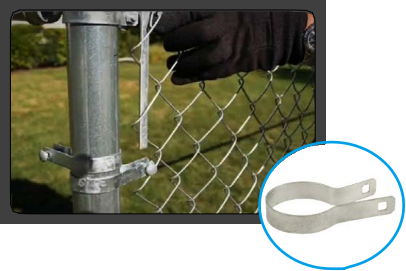

Tension Bands are used to attach chain link fabric/mesh to a terminal post, corner fence post, end fence post, gate fence post or gate frame pipe.
Tension Bands Wrap Around the Pipe on the Fence and Attach to a Tension Bar Holding the Fencing.
There are 26 kinds of chain link fence accessories with different sizes while used in the installation of chain link fence.
These Tension Bands are Manufactured from Galvanized Steel to Prevent Rust.
Tension Bands are used to attach chain link fabric/mesh to a terminal post, corner fence post, end fence post, gate fence post or gate frame pipe.
Tension Bands Wrap Around the Pipe on the Fence and Attach to a Tension Bar Holding the Fencing.
For applications where Outside Diameter pipe is used
Use to attach chain link top rail to a terminal post, corner fence post, end fence post, gate fence post or gate frame pipe
Brace bands are one of the essential items to build chain link fences. They are used to attach chain link fence fabric to line pots and terminal/end posts. Made of galvanized steel for strength and rust and corrosion resistance.

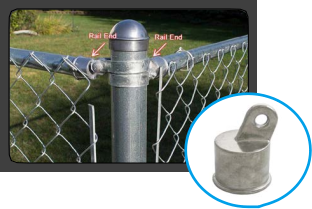

Rail Ends used for pipe top connection.
Features:
• Easy To Install
• Pre-Drilled Holes
• Galvanized Finish Protect Against Rust
• Service: Customized made according to your drawings and requirement
•Sample: Free-you only need to pay the freight charge

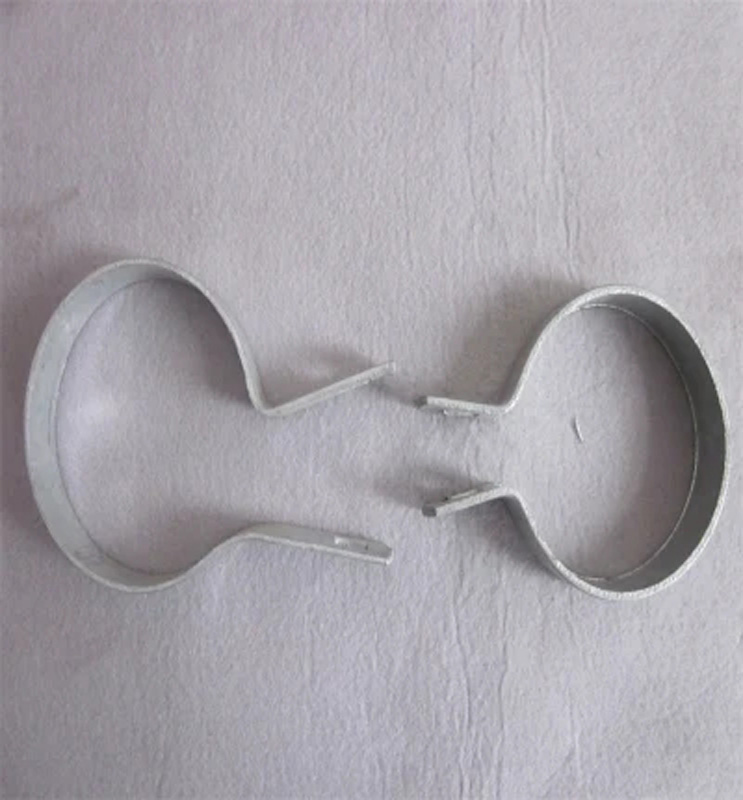

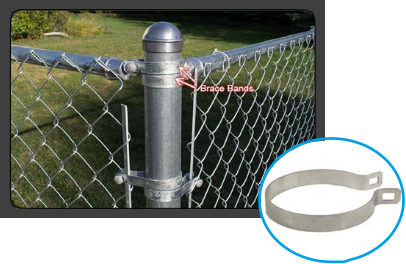

Type1 : Brace Band
| Material | pressed steel |
| Surface treatment | hot-dip galvanized or PVC-coated |
| Color | match the color coating of the fabric |
| Minimum thickness | 12 gauge |
| Minimum width | 3/4" |
| Size | 1-3/8", 1-5/8", 2", 2-1/2", 3", 4", 6" |
Type 2: Tension Band
| Material | pressed steel |
| Surface treatment | hot-dip galvanized or PVC-coated |
| Color | match the color coating of the fabric |
| Minimum thickness | 14 gauge |
| Minimum width | 3/4" |
| Size | 1-3/8", 1-5/8", 2", 2-1/2", 3",3-1/2", 4", 6" |
Type 3: Bullet Post Cap
Two-way bullet post cap One-way bullet post cap
| Material | steel, aluminum |
| Surface treatment | galvanized or vinyl-coated |
| Color | silver, black, green, brown or custom colors |
| Weight | 4.3 bounce |
| Post size | 2-1/2" (2-3/8". Actual) |
| Style | 0-way, 1-way and 2-way |

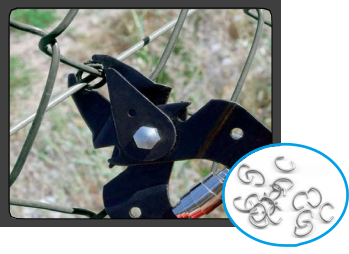

Type 4: Hog Rings
| Material | steel |
| Surface treatment | galvanized or vinyl-coated |
| Color | silver, black, green, brown or custom colors |
| Wire Gauge | 9 gauge, 11 gauge, 14 gauge |
| Size | 3/4", 1/2", 3/8" |
| Auxiliary tool | pliers |

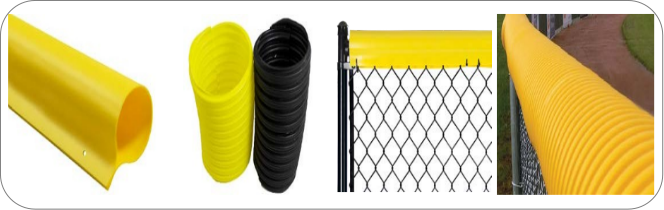

Type 5: Safety Top Cap
Safety top cap Corrugated tubing fence top cap
| Material | UV stabilized HDPE (high density polyethylene) | |
| 1.Safety top cap | Color | yellow, red, green, blue, black, orange, etc |
| Thickness | 1/16" | |
| Height | 1/2" | |
| Width | 2 3/4" | |
| Length | 8 ft | |
| Package | 10 pcs/box | |
| Accessories | hog-rings or zip-ties | |
| 2.Corrugated tubing fence top cap | Color | yellow & black |
| Diameter | 4 1-2" | |
| Thickness | 1/16" | |
| Roll length | 100 ft & 250 ft | |
| Warranty | 3 years | |
| Accessories | cable ties | |

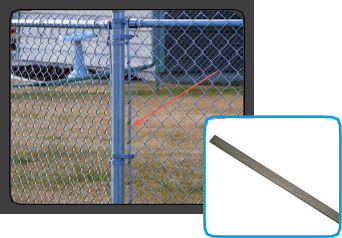

Type 6: Tension Bar
| Material | steel |
| Surface treatment | galvanized or vinyl-coated |
| Width | 5/8", 3/4", 3/8" |
| Thickness | 3/16", 1/4" |
| Height | 36", 42", 48", 60", 72", 84", 96",108'',120'', 144'' |

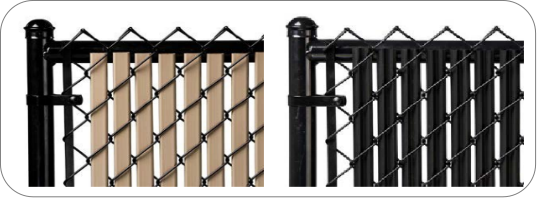

Type 7: Chain Link Fence Slat
Ridged chain link fence slat Winged chain link fence slat
| Slat material | plastic tubes slat, aluminum slat, high-density polyethylene slat, plastic coated slat | ||||
| Color | light blue, white, green, brown, blank, etc | ||||
| Slat width | Mesh size | Wire gauge | Slats per bag | Approx coverage per box | |
| Ridged slat | 1 3/32" | 2" | 8", 9", 11" | 82 | 10 linear feet |
| 1 1/4" | 2 1/4", 2 3/"8 | 11 1/2", 12 1/2" | 78 | 10 linear feet | |
| 7/8" | 1 3/4" | 8",9", 11" | 97 | 10 linear feet | |
| Winged slat | 1 1/4" | 2" | 9" | 82 | 10 linear feet |
Type 8: Tension Wire
| Material | steel wire |
| Surface treatment | galvanized, PVC coating, metallic coating |
| Color | green, silver, black, brown |
| Wire gauge | 7 gauge, 9 gauge, 11 gauge |
| Length | 1000 feet/coil |
| Table 1 Breaking Strength of Metallic-Coated Core Wire | |
| Specified diameter of core wire inch. (mm) | Minimum breaking strength ibf (N) |
| 0.177 (4.50) | 1950 (8670) |
| 0.148 (3.76) | 1290 (5740) |
| Table 2 Weight of Metallic Coatings | |||||||
| Specified diameter of core wire, inch. (mm) | Minimum weight of zinc coating, oz/ft2(g/m2) | Minimum weight of aluminum coating oz/ft2 (g/m2) | Minimum weight of zinc-5 % aluminum-mischmetal coating oz/ft2(g/m2) | ||||
| 0.177 (4.50) | 0.40 (122) | 0.20 (61) | 0.40 (122) | ||||
| 0.148 (3.76) | 0.30 (92) | 0.20 (61) | 0.30 (92) | ||||
| Table 3 Thickness of Polymer Coating | ||
| inch. (mm) | inch. (mm) | |
| Minimum thickness at any point | 0.015 (0.38) | 0.006 (0.15) |
| Maximum thickness at any point | 0.025 (0.64) | 0.012 (0.30) |

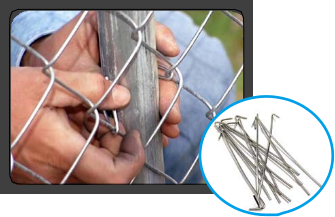

Type 9: Fence Tie
| Material | aluminum |
| Surface treatment | vinyl-coating, galvanized |
| Color | silver, black |
| Wire gauge | 9 |
| Length | 6-1/2", 8-1/4" |

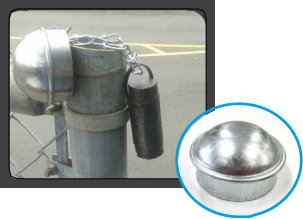

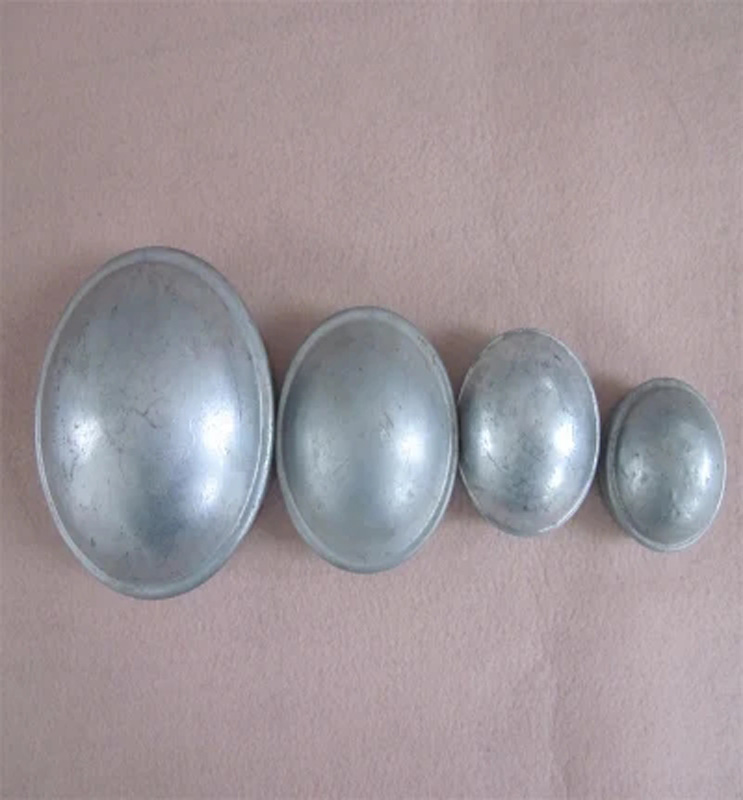

Type 10: Post Cap
| Material | aluminum or steel |
| Surface treatment | galvanized or vinyl-coated |
| Style | dome and acorn post cap |
| Post size | 1-3/8", 1-5/8", 2", 2-1/2", 3", 4", 6-5/8" |

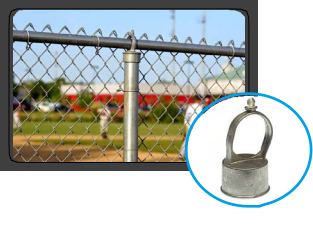

Type 11: Line Post Cap
| Material | pressed steel or aluminum |
| Size | 1-5/8" × 1-3/8", 1-5/8" × 1-5/8", |
| 2" × 1-3/8", 2" × 1-5/8", 2-1/2" × 1-5/8", | |
| 3" × 1-5/8", 3-1/2" × 1-5/8", 4" × 1-5/8". |

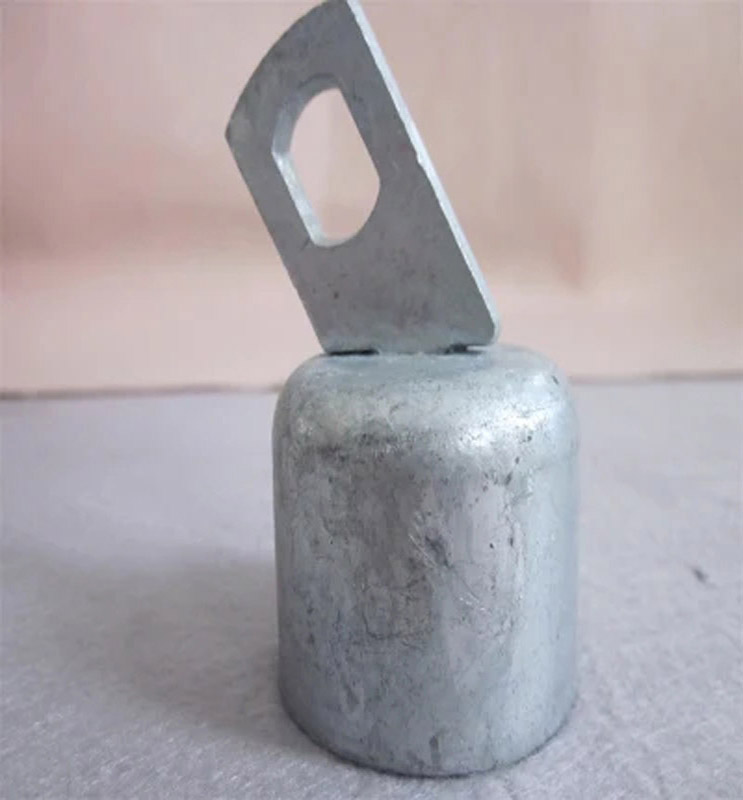

Type 12: Rail End
| Material | aluminum or steel |
| Surface treatment | zinc-coating or vinyl-coating |
| Diameter | 1-3/8", 1-5/8" and 2" |
