There are many kinds of choices for you ,you can choose the wire diameter,color,mesh opening,length,height,etc.

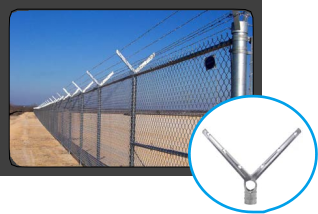

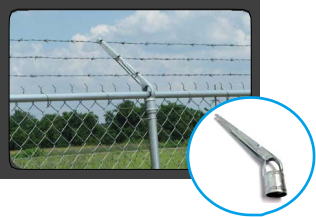

Type 13: Barbed Wire Arm
V-shape barbed wire arm 45 degree barbed wire arm
| Material | pressed steel |
| Surface treatment | hot-dip galvanized |
| Size | 1-5/8" × 1-5/8", 2" × 1-5/8", 2-1/2" × 1-5/8" |
| Style | single slanted arm for three barbed wire strands |
| V-shaped arm for six barbed wire strands |

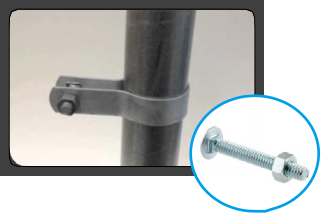

Type 14: Carriage Bolt
| Material | steel |
| Surface treatment | hot-dip galvanization |
| Diameter | 5/16 & 3/8 inch |
| Length | 1-1/4, 1-1/2, 2, 2-1/4, 2-1/2, 3 & 3-1/2 inch |
| Nut is included. | |

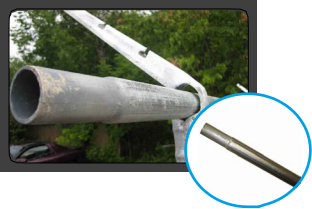

Type 15: Top Rail Sleeve

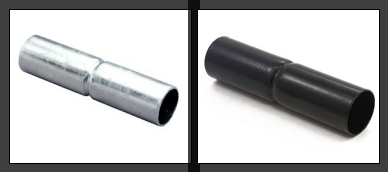

Metal top rail sleeve Black vinyl-coated rail sleeve
| Material | steel |
| Surface treatment | galvanized or vinyl- coated (match with the fence fabric) |
| Outside diameter | 1-3/8, 1-5/8 and 2 in |
| Wall thickness | 17 gauge |
| Length | 6" & 7" |
Type 16: Top Rail
| Material | steel |
| Surface treatment | galvanized or PVC-coated (match with the fence fabric) |
| Out diameter | 1-3/8" & 1-5/8" |
| Wall thickness | 9 to 17 gauge |
| Length | 21 and 24 ft |

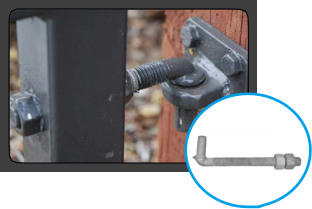

Type 17: J-bolt Hinge
| Material | pressed steel |
| Surface treatment | zinc-coating or PVC-coated |
| Color | silver, black, green or custom colors |
| Pin diameter | 5/8" |
| Length | 4-1/2", 10" and 12" |

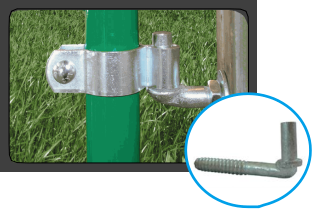

Type 18: Lag Screw Hinge
| Surface treatment | galvanization or vinyl-coating |
| Pin diameter | 5/8" |
| Length | 4-1/2" and 6" |
| Usage | farm gates and wood gates |

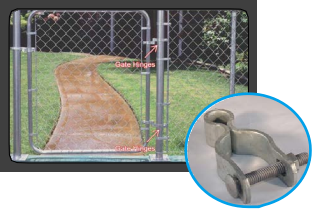

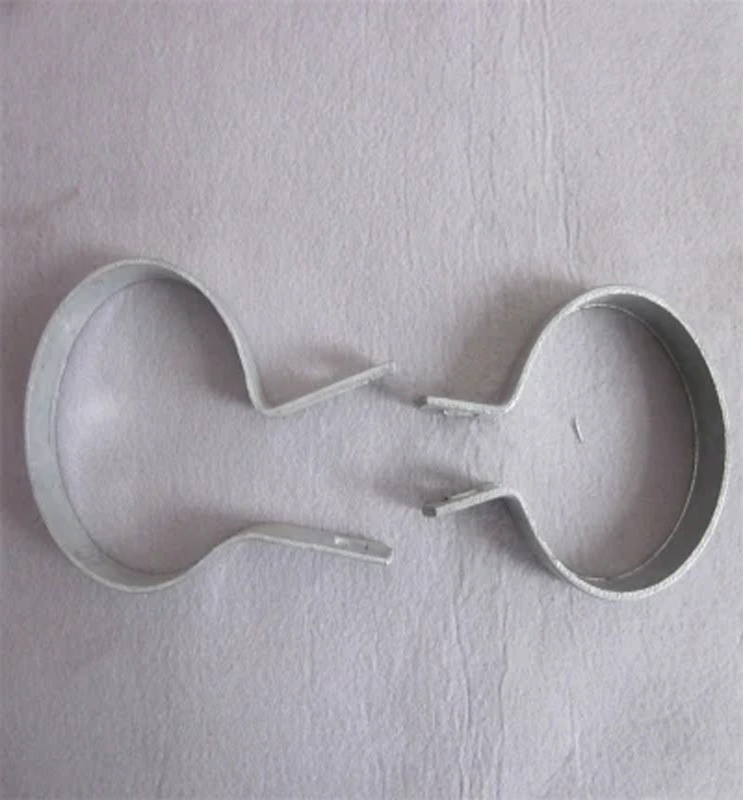

Type 19: Gate Frame Hinge
| Material | pressed steel |
| Surface treatment | galvanized or vinyl-coated |
| Color | silver, black, green or as required |
| Male strap hinge (O.D) | 1-3/8", 1-5/8", 2", 2-1/2", 3" |
| Female strap hinge (O.D) | 1-3/8", 1-5/8", 2" |

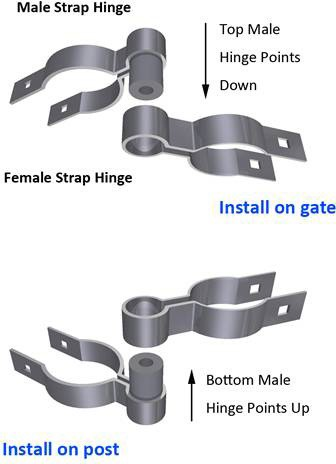

* The types and installation notes as bellow:

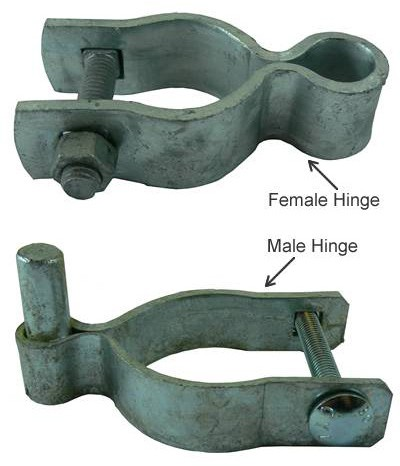

Female and male gate frame hinges Installation picture of gate frame hinges

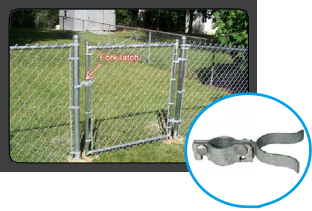

Type 20: Fork Latch
| Material | pressed steel |
| Surface treatment | galvanized or vinyl-coated |
| Color | silver, black, green or as required |
| Clamp size | 1-3/8", 1-5/8" and 2" |
| Fork size | 1-3/8", 2", 2-1/2" and 3" |
| Usage | single swing gate or double-leaf door |

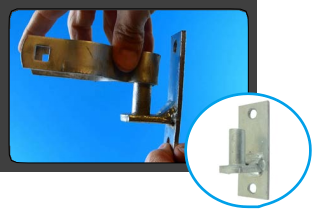

Type 21: Chain Link Mount Hinge
| Material | pressed steel |
| Surface treatment | hot-dip galvanization |
| Plate | 1-1/2" × 4" and 2-3/4 " × 5" |
| Pin diameter | 5/8" |

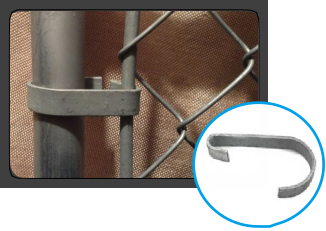

Type 22: Gate Clip
| Material | steel |
| Surface treatment | hot-dip galvanization or vinyl-coating |
| Color | silver, black, green and brown |
| Post size | 1-3/8" |
| Thickness | 14 gauge |

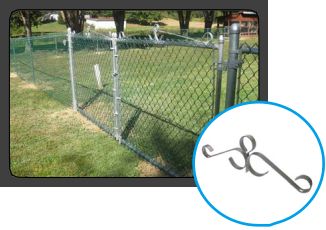

Type 23: Gate Scroll
| Material | steel |
| Surface treatment | galvanized, vinyl-coating |
| Length | 18", 24", 36", 48" |
| Hardware | self-tapping screw are supplied |

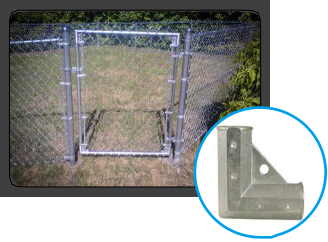

Type 24: Gate Corner
| Material | steel, aluminum |
| Surface treatment | vinyl coating, galvanized |
| Color | black, silver |
| Gauge | 12 gauge, 14 gauge |
| Matched pipe size | 1-3/8", 2" |
| Accessories | self-screw |
Type 25: Razor Wire
| Material | carbon steel wire, aluminum alloy wire,stainless steel wire. | ||
| Surface treatment | galvanized or vinyl coating, PVC coating. | ||
| Color | silver, green, blue, red, black. | ||
| Number of spikes | 4 | ||
| Spike spacing | 70 mm – 120 mm. | ||
| Horizontal line wire diameter | 2.8 mm. | ||
| Barb wire diameter | 2.0 mm. | ||
| Length | 1000 ft./roll. | ||
| Wire gauge | 12 gauge, 13 gauge, 14 gauge, 5 gauge. | ||
| Shape of barbed wire | round, flat, half-round. | ||
| Coating thickness | 0.067 – 0.099 mm. |

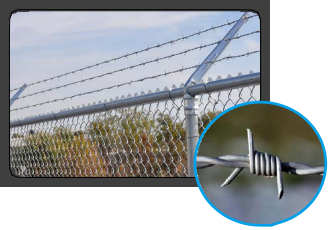

Type 26: Barbed Wire
| Material | galvanized steel or stainless steel AISI 304 |
| Surface treatment | galvanized, PVC coating. |
| Coil diameter | 450 mm. |
| Lineal meters | 7–10 m. |
| Thickness | 0.5 mm. |
| Wire diameter | 2.5 mm. |
| Razor length | 65 mm. |
| Razor width | 15 mm. |
| Tensile strength | 140 KSI (965 MPa). |
| Space between razors | 100 mm. |
| Package | Waterproof paper, Woven bag, Carton, Pallet. |
